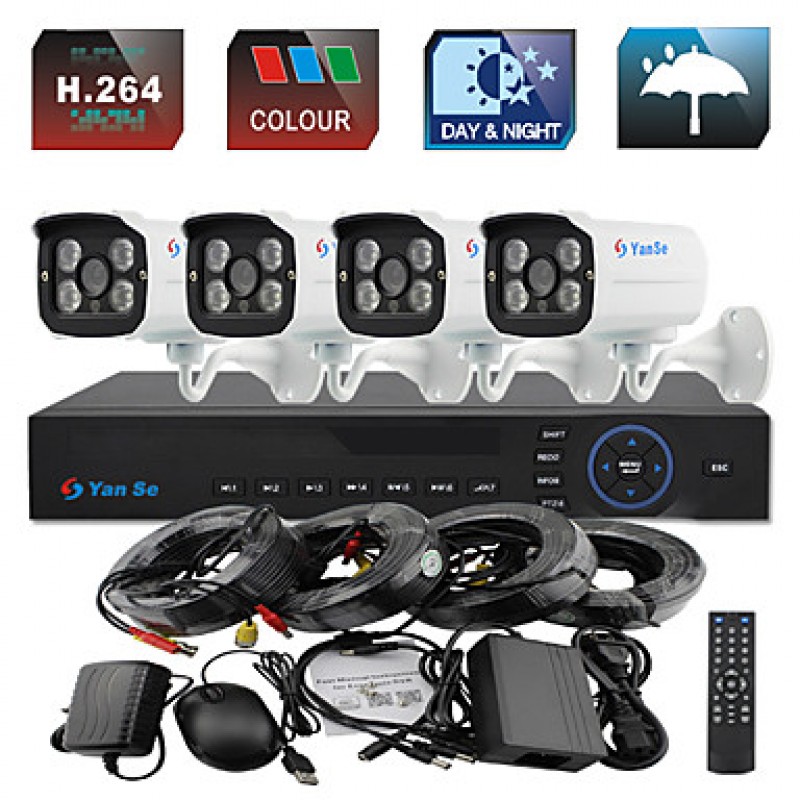

4CH 960H 1000TVL CCTV DVR Kit IR Camera Color Waterproof Security Cameras System 3.6mm 720CF04

0 reviews / Write a review

$166.99

Price in reward points: 5000

Product Code: 4CH 960H 1000TVL CCTV DVR Kit IR Camera Color Waterproof Securit
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,
Video Input/Output Interface	BNC,
Video Input	4 Channel,
Video Output	1 Channel,
Other Video Output	HDMI,VGA,
Audio Input / Output	RCA 4-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 120 fps @D1 / PAL: 100 fps @D1,
Display Resolution	NTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame Rate	NTSC:120fps @960H / PAL: 100 fps @960H,
Record Resolution	960H Real Time (960*576),
Record Mode	Continuous,Alarm Motion Detection & Alarm Supported,Manual/Schedule,Motion Detection,Time Schedule,
Mobile Device OS Support	iOS,Android,
Network Function	Live Monitoring,IE Viewer,Mobile & Email Function,DVR Setting,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,IPv4, PPPoE Client,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
Alarm Input/Alarm Output	No,
HDD Interface	SATA, Support between 250GB and 2TB,
HDD Port	2,
Built-in HDD	No,
Playback Mode	Frame by Frame,Fast Rewind,Fast Forward,Normal Play,
Synchronous Playback (Channel)	4,
USB	USB Backup/USB 2.0,
Power Supply	12V DC,
Dimensions (LxWxH)	L335W240H50,mm,

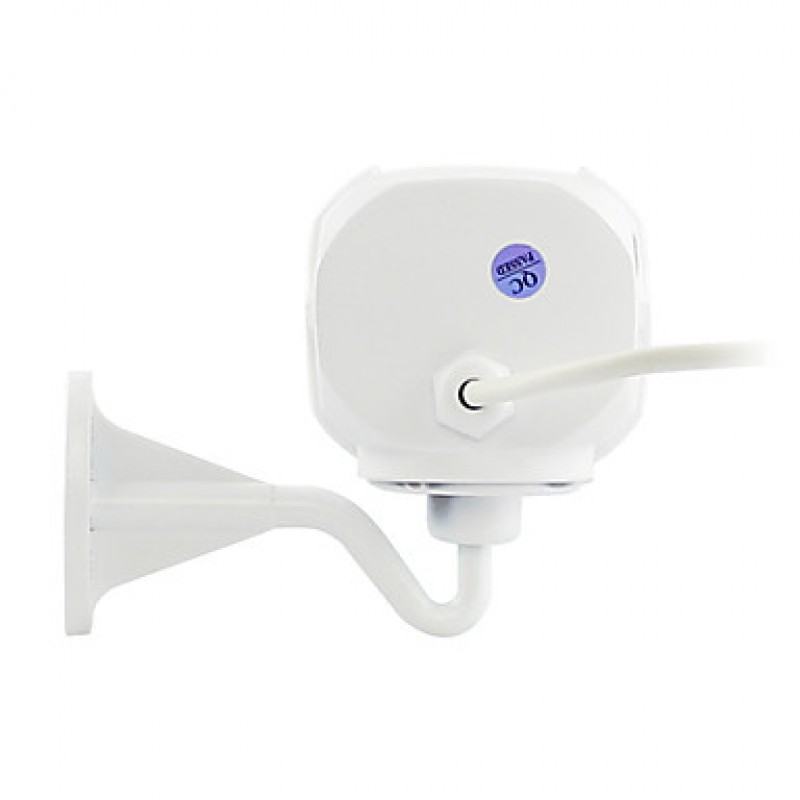

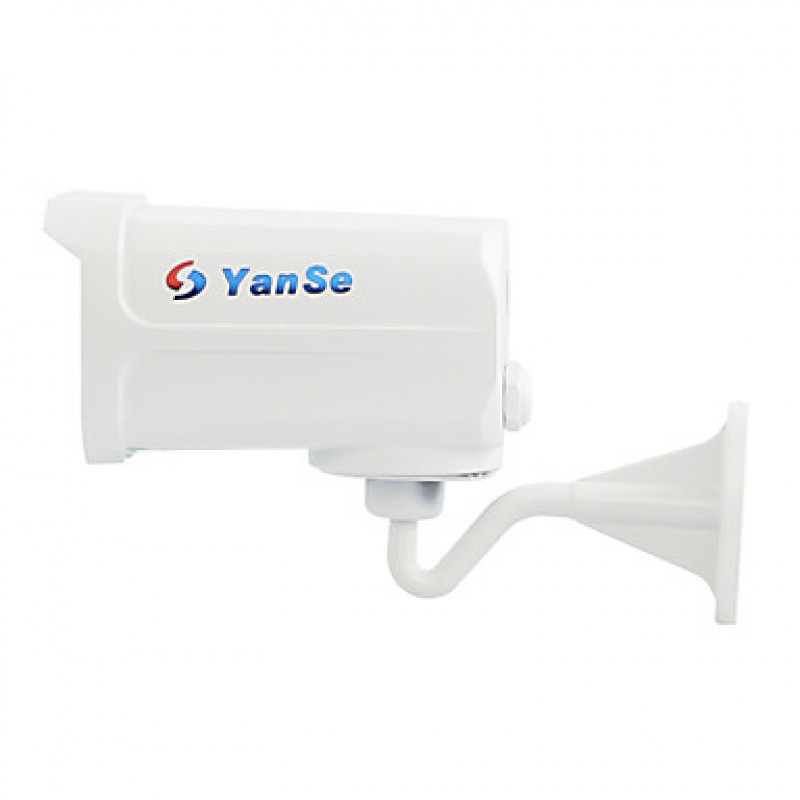

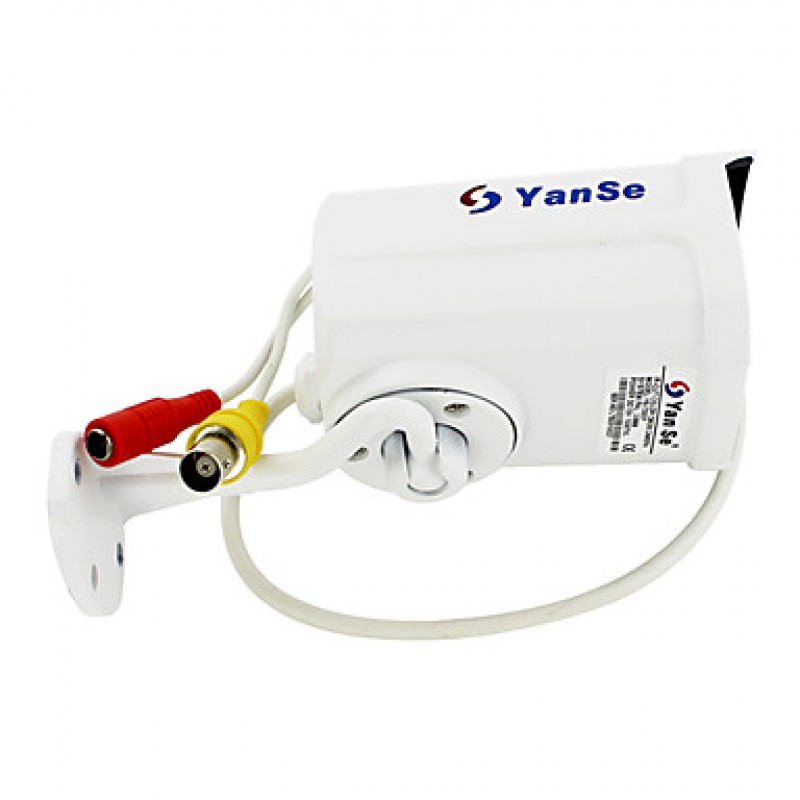

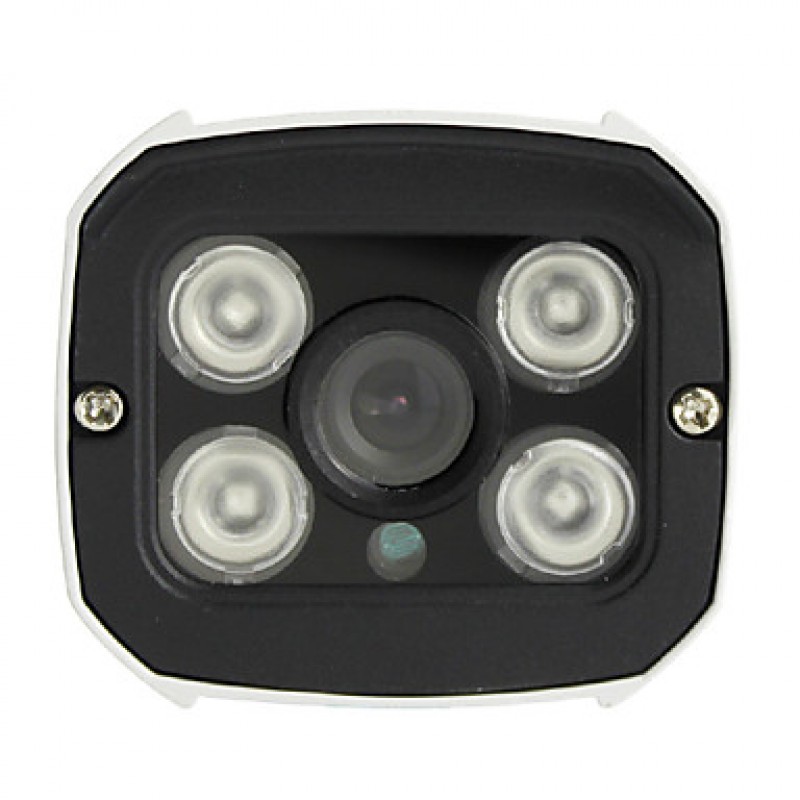

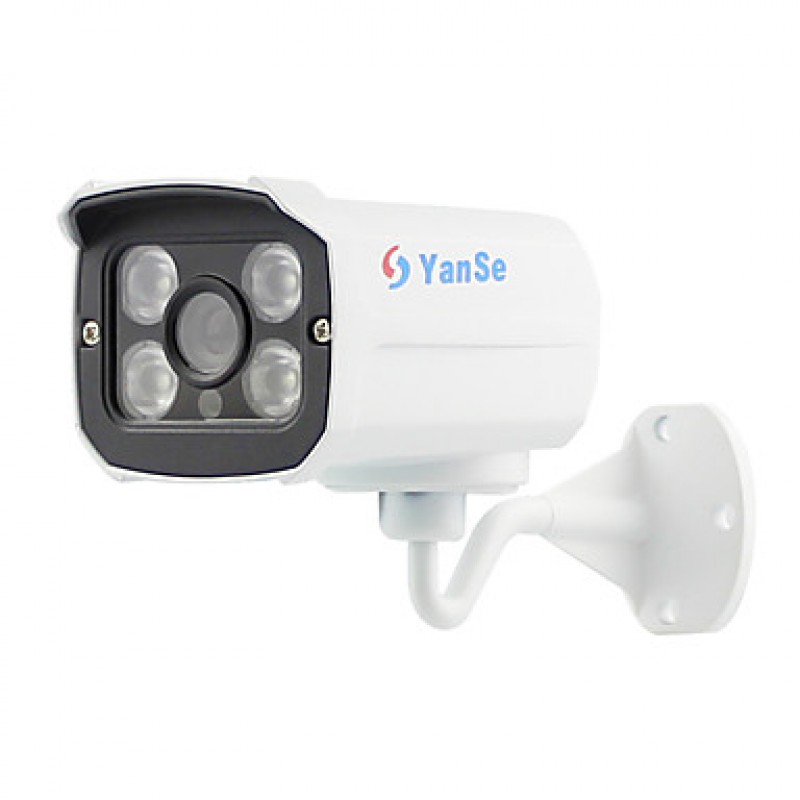

Bullet Camera Parameters
Sensor Type	Color CMOS,
Sensor Size	1/3",
Bullet Camera Image Sensor	1/3" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 960 (H) x 582 (V)/PAL: 976 (H) x 494 (V),
Lens (mm)	3.6,
Audio / Output	Built-in / RCA,
Maximum IR Distance (m)	20M,
Features	Waterproof,Auto White Balance,Auto Gain Control,Back Light Comp,
Minimum Illumination	0.01 Lux,
S/N Ratio	≧ 45dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	14°F~122°F / -10°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	L160xW65xH6,mm,
Gross Weight	320 g,
Material	Metal Shell,
Camera Shape	Bullet,
Camera QTY	4,
General
Model	,
Home	Garage,Front door,Backyard,Baby Room,
Business	Warehouse,Store,Office,Street,School,
Camera Type	Bullet Cameras,
OSD Languages	Romanian,German,Czech,French,Turkish,English,Chinese,Russian,Swedish,Portuguese,Finnish,Italian,Greek,Spanish,
What's in the box	1 To 4 DC Line,User Manual - English,Remote Control,Mouse,Power Cable,DVR,12V Power Supply,66ft Cable,Bullet Camera,
