Product Detail

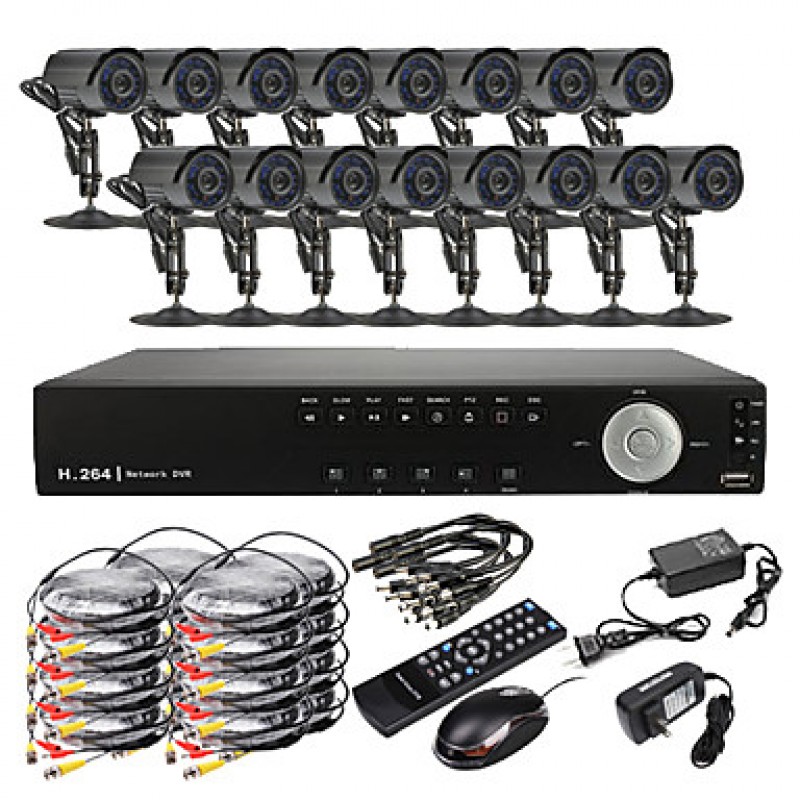

16CH D1 Real Time H.264 High Definition CCTV DVR Kit (16 Waterproof 600TVL Day Night CMOS Cameras)

0 reviews / Write a review

$333.99

Price in reward points: 5000

Product Code: 16CH D1 Real Time H.264 High Definition CCTV DVR Kit (16 Waterpr
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,
Video Input/Output Interface	BNC,
Video Input	16 Channel,
Video Output	1 Channel,
Other Video Output	VGA,
Audio Input / Output	RCA 2-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 480 fps @D1 / PAL: 400 fps @D1,
Display Resolution	NTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame Rate	NTSC: 480 fps @D1 / PAL: 400 fps @D1,
Record Mode	Motion Detection,Time Schedule,Manual/Schedule,
Mobile Device OS Support	Blackberry,Windows Mobile,Symbian,iOS,Android,
Network Function	Live Monitoring,IE Viewer,Mobile & Email Function,DVR Setting,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
HDD Interface	SATA, Support between 250GB and 2TB,
HDD Port	1,
Built-in HDD	No,
Playback Mode	Frame by Frame,Fast Rewind,Fast Forward,Normal Play,
Synchronous Playback (Channel)	16,
USB	USB Backup/USB 2.1,
Power Supply	12V DC,
Dimensions (LxWxH)	370 x 285 x 72,

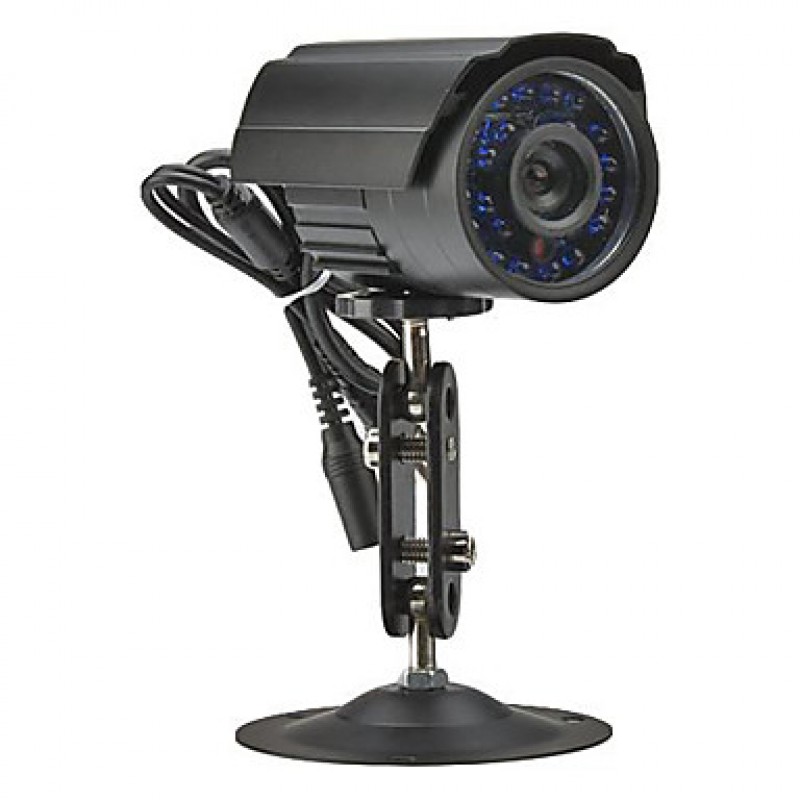

Bullet Camera Parameters
Bullet Camera Image Sensor	1/4" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Lens (mm)	6,
Maximum IR Distance (m)	15~20,
Features	Waterproof,Auto White Balance,
Minimum Illumination	0.0 Lux,
S/N Ratio	≧ 48dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	-25°F~122°F / -32°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	93 x 65 x 60,
Gross Weight	0.50 lbs,
Material	Metal Shell,
General
Home	Backyard,Garage,Front door,
Business	Street,School,Warehouse,Store,Office,
Camera Type	Bullet Cameras,
OSD Languages	Polish,Russian,Portuguese,Greek,Italian,Spanish,Dutch,German,Thai,French,Japanese,English,Chinese,
What's in the box	Remote Control,Mouse,DVR,12V Power Supply,66ft Cable,Bullet Camera,1 To 4 DC Line,User Manual - English,Software CD,
