Product Detail

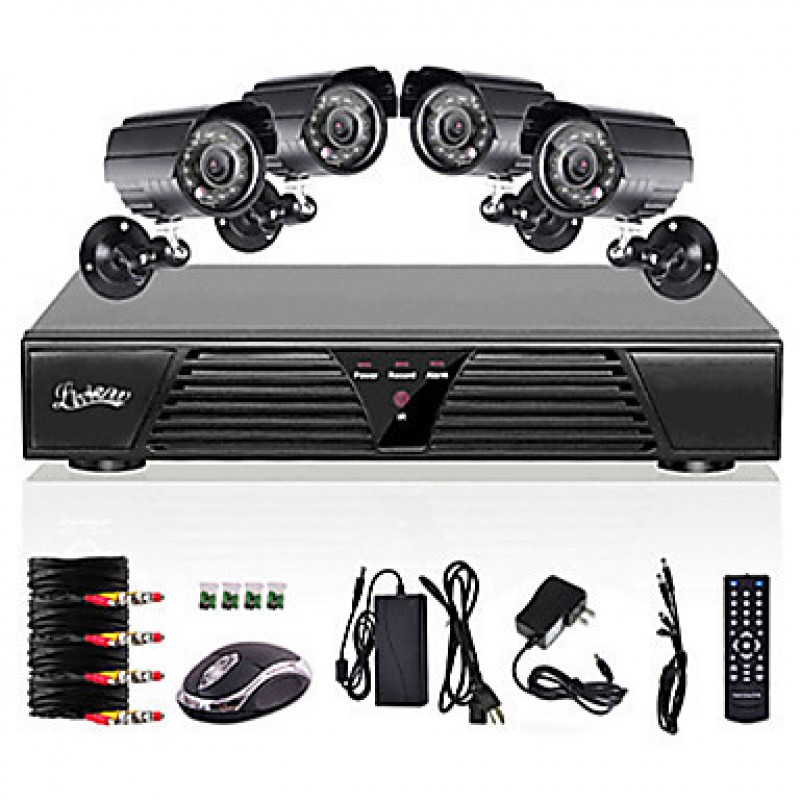

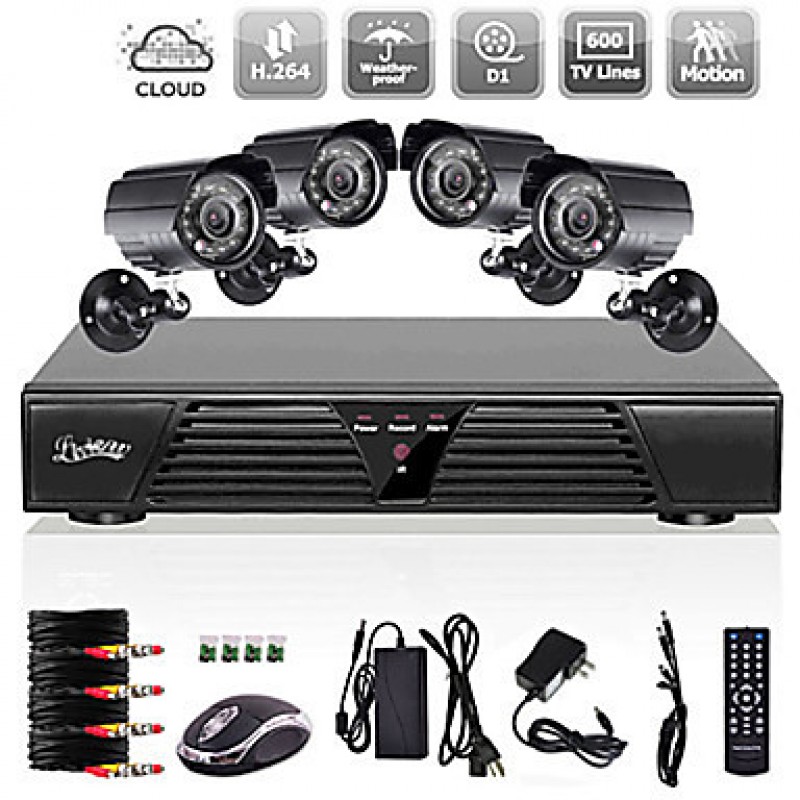

8CH Full 960H DVR and 4pcs Outdoor 800TVLine Day/Night cameras

0 reviews / Write a review

$100.99

Price in reward points: 5000

Product Code: 8CH Full 960H DVR and 4pcs Outdoor 800TVLine Day/Night cameras
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

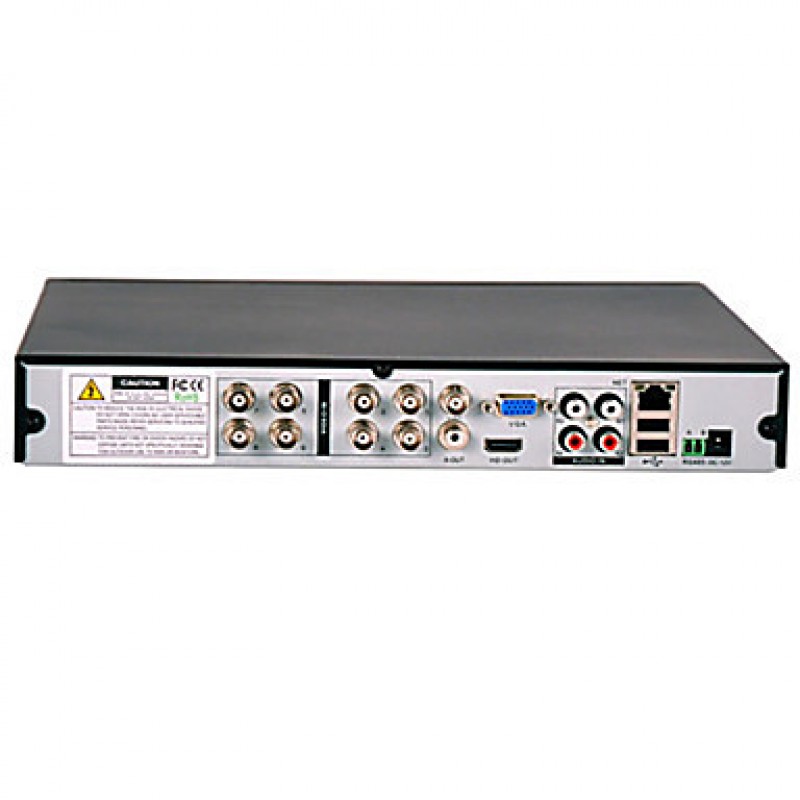

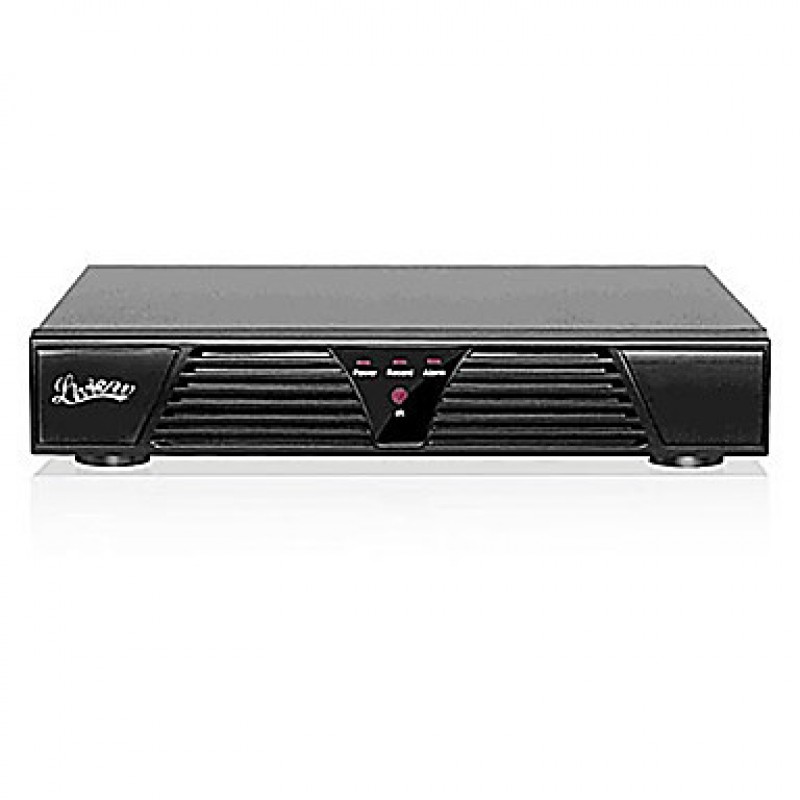

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,
Video Input/Output Interface	BNC,
Video Input	8 Channel,
Video Output	1 Channel,
Other Video Output	HDMI,VGA,
Audio Input / Output	RCA 4-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display Resolution	NTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame Rate	NTSC:120fps @960H / PAL: 100 fps @960H,
Record Resolution	960H Real Time (960*576),
Record Mode	Manual/Schedule,Motion Detection,Time Schedule,
Mobile Device OS Support	Android,Blackberry,Windows 7,Windows Mobile,Symbian,
Network Function	Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,IPv4, PPPoE Client,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
HDD Interface	SATA, Support between 250GB and 1TB,
HDD Port	1,
Built-in HDD	No,
Playback Mode	Normal Play,Frame by Frame,Fast Rewind,Fast Forward,
Synchronous Playback (Channel)	8,
USB	USB Backup/USB 2.0,
Power Supply	12V DC,
Dimensions (LxWxH)	260x210x40MM,

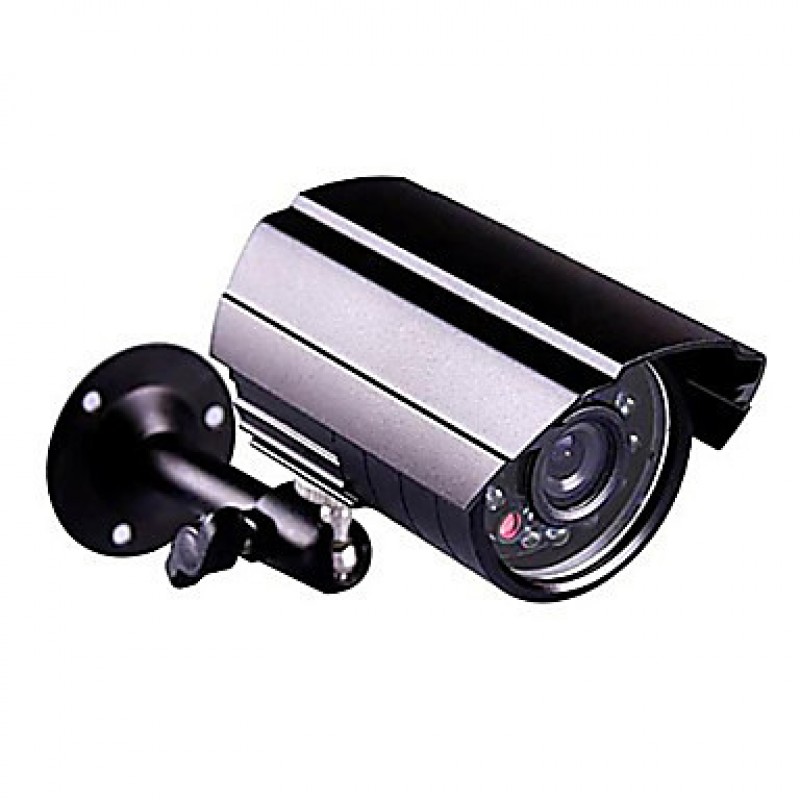

Bullet Camera Parameters
Bullet Camera Image Sensor	1/4" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Horizontal Resolution	800TVL,
Lens (mm)	3.6mm,
Maximum IR Distance (m)	20M,
Features	Auto White Balance,Auto Gain Control,Back Light Comp,Waterproof,
Minimum Illumination	0.0 Lux,
S/N Ratio	≧ 45dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	14°F~122°F / -10°C ~50°C,
Power	12V DC,
Material	Metal Shell,
Dome Camera Parameters
Horizontal Resolution	800 TV-Lines,
General
Model	,
Home	Garage,Front door,Backyard,
Business	School,Warehouse,Store,Office,Street,
Camera Type	Bullet Cameras,
OSD Languages	Russian,Portuguese,Swedish,Italian,Greek,Spanish,Dutch,Thai,German,Japanese,French,Chinese,English,Arabic,
What's in the box	12V Power Supply,DVR,66ft Cable,Bullet Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,Mouse,
