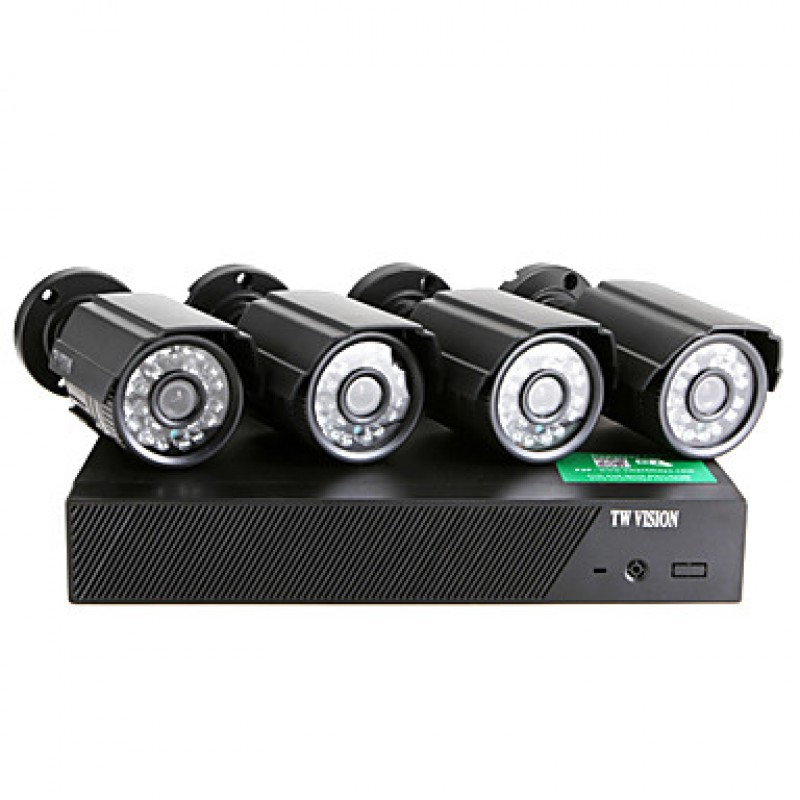

CCTV 4CH 960H HDMI DVR 700TVL Outdoor Video Home Night Security Camera System

$84.99
  • Price in reward points: 5000
  • Product Code: CCTV 4CH 960H HDMI DVR 700TVL Outdoor Video Home Night Security
  • Availability: In Stock

Tags: DVR Kits

DVR Parameters
Video CompressionH.264,
Video SystemNTSC/PAL,
Video Input/Output InterfaceBNC,
Video Input4 Channel(AHD),
Video Output1 Channel,
Other Video OutputHDMI,VGA,
Audio Input / OutputRCA 4-Channel Input / BNC 1-Channel Output,
Display Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display ResolutionNTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Record Resolution960H Real Time (960*576),
Record ModeManual/Schedule,Motion Detection,Time Schedule,Continuous,
Mobile Device OS SupportWindows Mobile,Symbian,iOS,Android,Blackberry,
Network FunctionMobile & Email Function,DVR Setting,Live Monitoring,IE Viewer,
NetworkRJ45, 10M/100M,
Net ProtocolIPv4, PPPoE Client,
Remote AccessRemote Client Software and IE Browser,
PTZ ControlRS-485,
Alarm Input/Alarm OutputNO,
HDD InterfaceSATA, Support between 250GB and 4TB,
HDD Port1,
Built-in HDDNo,
Playback ModeFrame by Frame,Fast Rewind,Fast Forward,Normal Play,
Synchronous Playback (Channel)4,
USBUSB Backup/USB 2.0,
Power Supply12V DC,
Dimensions (LxWxH)25.5*21.5*4.5cm,

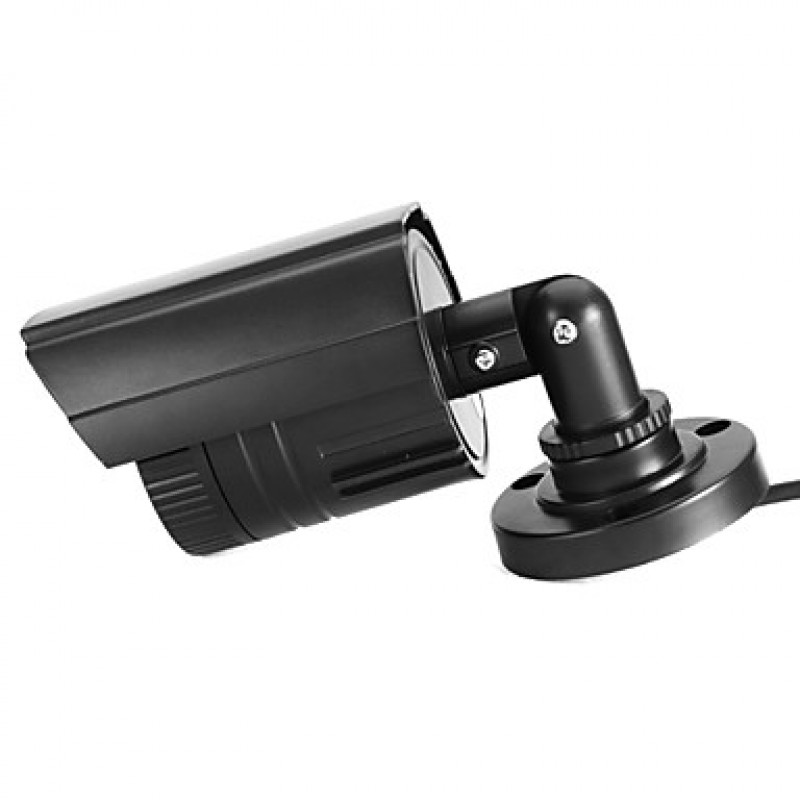

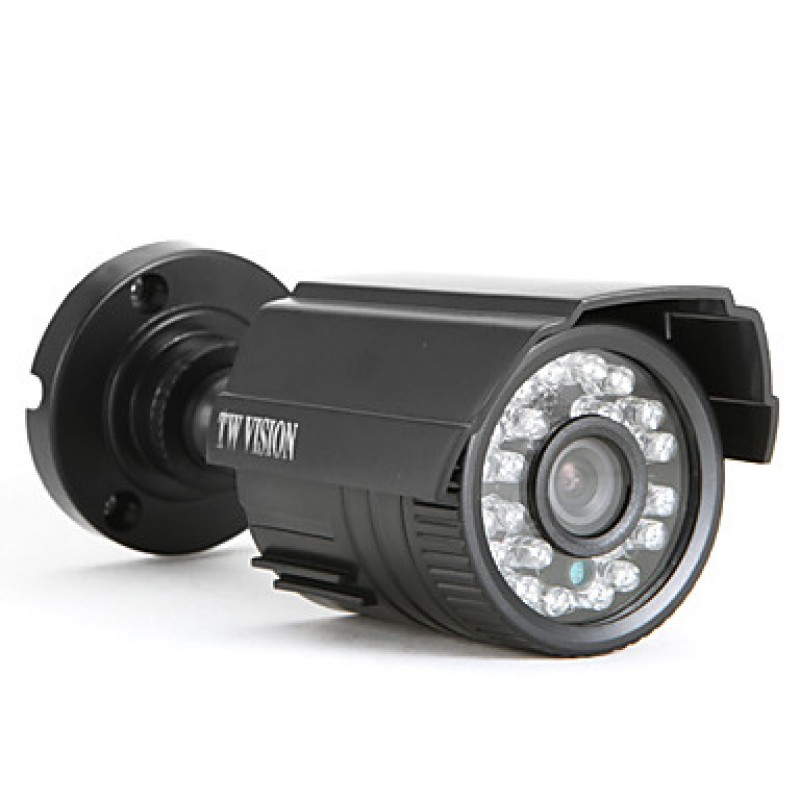

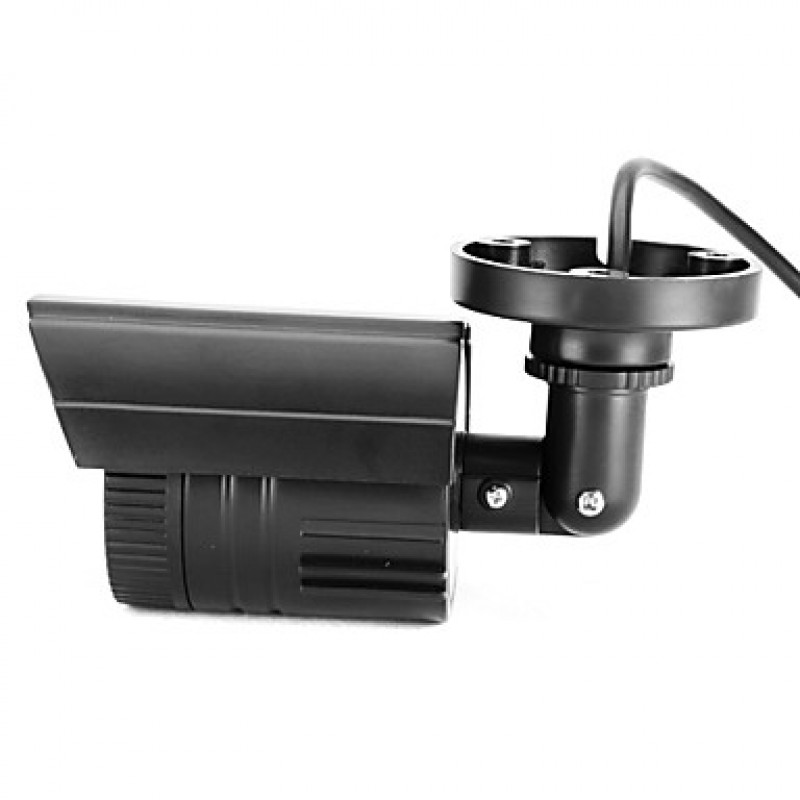

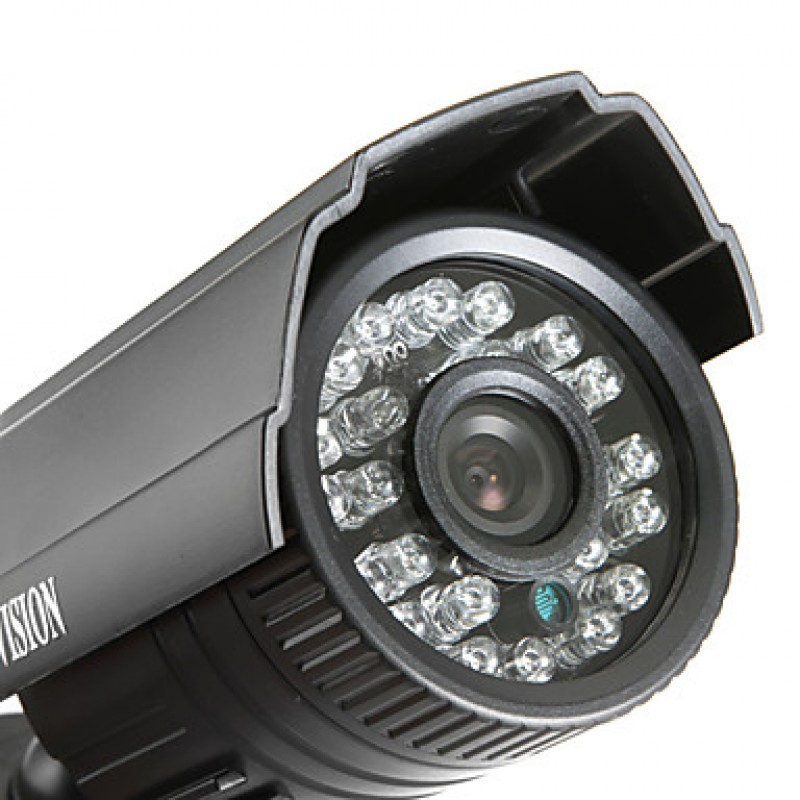

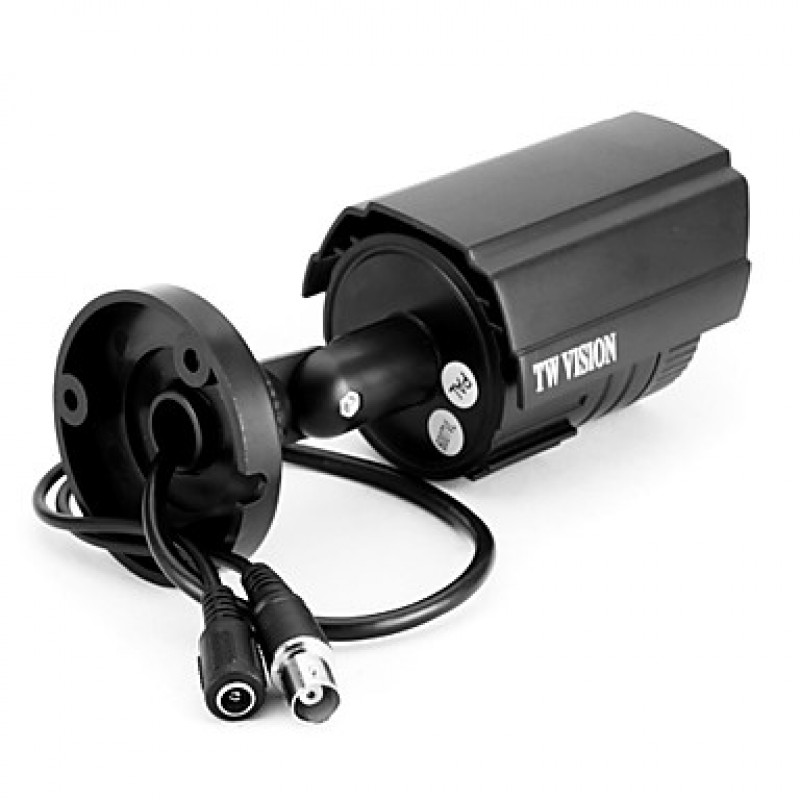

Bullet Camera Parameters
Bullet Camera Image Sensor1/4" Color CMOS,
TV SystemPAL/NTSC,
Effective PixelsNTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Horizontal Resolution700TVL,
Lens (mm)3.6,
Maximum IR Distance (m)15,
FeaturesWaterproof,Auto White Balance,Auto Gain Control,Back Light Comp,
Minimum Illumination0.0 Lux,
S/N Ratio≧ 45dB,
Video Output1.0Vp-p, 75ohms,
Operating Temperature14°F~122°F / -10°C ~50°C,
Power12V DC,
Dimensions (LxWxH)70*50*50mm,
MaterialMetal Shell,
General
HomeGarage,Front door,Backyard,
BusinessOffice,Street,School,Warehouse,Store,
Camera TypeBullet Cameras,
OSD LanguagesFrench,English,Greek,Japanese,Chinese,Spanish,German,
What's in the boxUser Manual - English,Software CD,DVR,60ft Cable,Bullet Camera,1 To 4 DC Line,
