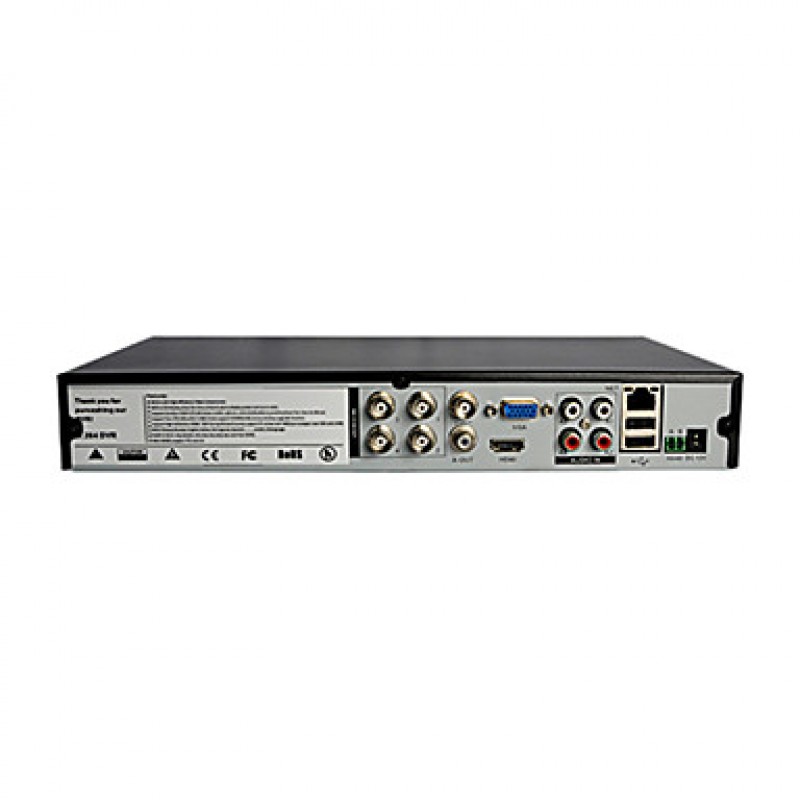

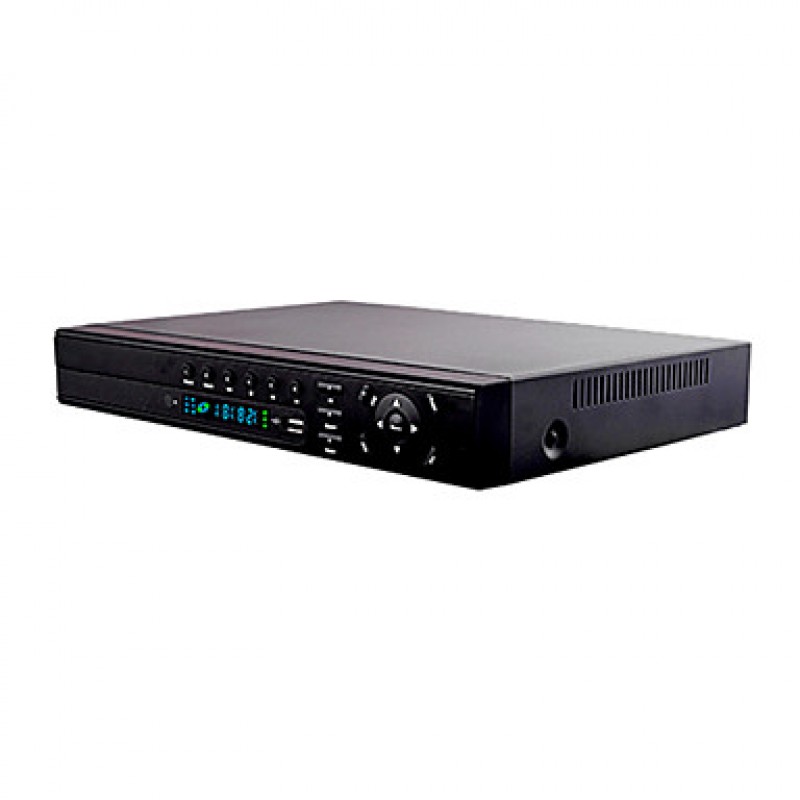

700TVL Outdoor Day/Night Security Camera and 4CH HDMI 960H DVR System 1TB Hard Drive
- Price in reward points: 5000
- Product Code: 700TVL Outdoor Day/Night Security Camera and 4CH HDMI 960H DVR S
- Availability: In Stock
Tags: DVR Kits
| DVR Parameters | |
|---|---|
| Video Compression | H.264, |
| Video System | NTSC/PAL, |
| Video Input/Output Interface | BNC, |
| Video Input | 4 Channel, |
| Video Output | 1 Channel, |
| Other Video Output | HDMI,VGA, |
| Audio Input / Output | RCA 4-Channel Input / RCA 1-Channel Output, |
| Display Frame Rate | NTSC: 120 fps @D1 / PAL: 100 fps @D1, |
| Display Resolution | NTSC: D1(704 x 480)/ PAL: D1(704 x 576), |
| Recording Frame Rate | NTSC: 120fps @D1 / PAL: 100 fps @D1, |
| Record Mode | Alarm Motion Detection & Alarm Supported,Manual/Schedule,Motion Detection,Time Schedule, |
| Mobile Device OS Support | Windows Mobile,Symbian,Android,Blackberry,Windows 7, |
| Network Function | Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer, |
| Network | RJ45, 10M/100M, |
| Net Protocol | IPv4, PPPoE Client,DHCP and TCP/UDP, |
| Remote Access | Remote Client Software and IE Browser, |
| PTZ Control | RS-485, |
| HDD Interface | SATA, Support between 250GB and 2TB, |
| HDD Port | 2, |
| Built-in HDD | 1TB, |
| Playback Mode | Fast Rewind,Fast Forward,Normal Play,Frame by Frame, |
| Synchronous Playback (Channel) | 4, |
| USB | USB Backup/USB 2.0, |
| Power Supply | 12V DC, |
| Dimensions (LxWxH) | 310mm x 220mm x 45mm, |

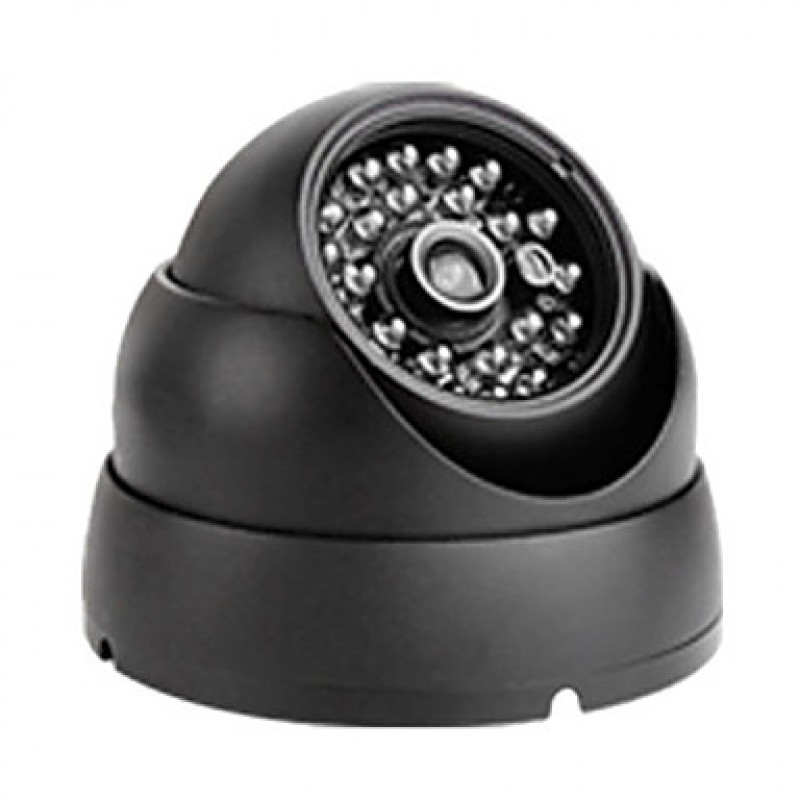

| Dome Camera Parameters | |
| Dome Camera Image Sensor | 1/4" Color CMOS, |
| TV System | PAL/NTSC, |
| Effective Pixels | NTSC: 960 (H) x 582 (V)/PAL: 976 (H) x 494 (V), |
| Horizontal Resolution | 700 TV-Lines, |
| Lens (mm) | 3.6mm, |
| Maximum IR Distance (m) | 25M, |
| Features | Auto White Balance,Auto Gain Control,Back Light Comp, |
| Minimum Illumination | 0.0 Lux, |
| S/N Ratio | ≧ 45dB, |
| Video Output | 1.0Vp-p, 75ohms, |
| Operating Temperature | 14°F~122°F / -10°C ~50°C, |
| Power | 12V DC, |
| Material | Plastic Shell, |
| General | |
| Model | , |
| Home | Front door,Backyard,Garage, |
| Business | Street,School,Warehouse,Store,Office, |
| Camera Type | Dome Cameras, |
| OSD Languages | Thai,German,Japanese,French,Chinese,English,Arabic,Russian,Portuguese,Swedish,Italian,Greek,Spanish,Dutch, |

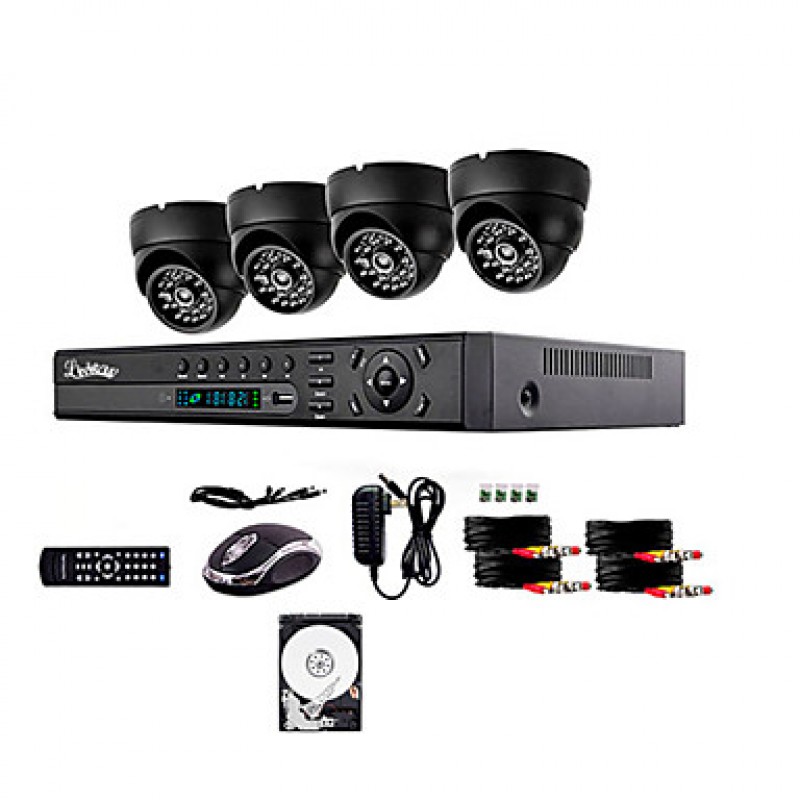

| What's in the box | User Manual - English,Software CD,Remote Control,Mouse,12V Power Supply,66ft Cable,DVR,1TB Hard Drive,Dome Camera,1 To 4 DC Line, |
