Product Detail

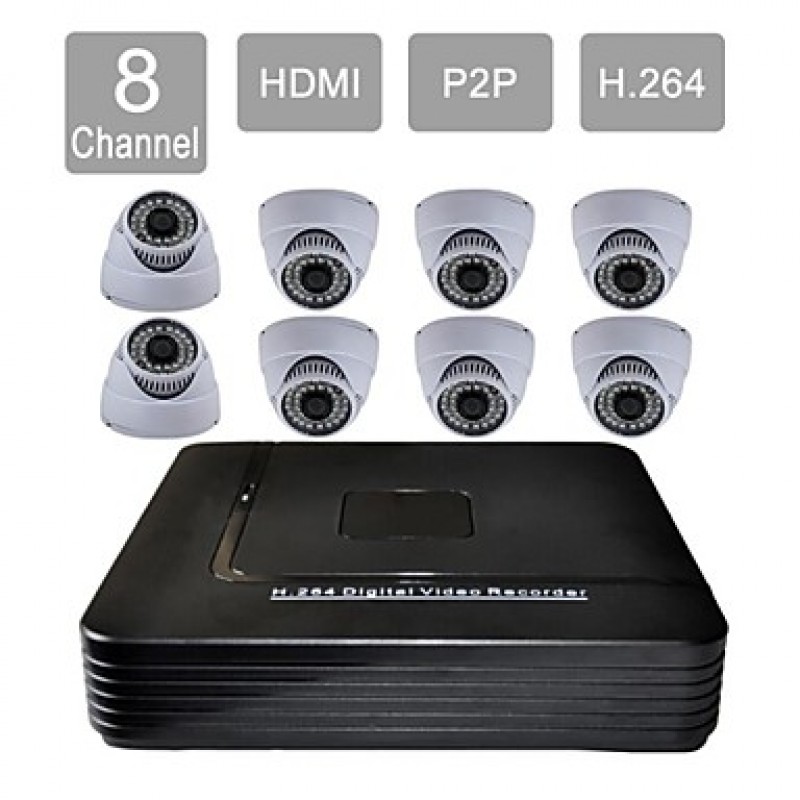

8 Channel HDMI CCTV DVR 8 Indoor Vision Security Camera System Kit 632-36CA08V

0 reviews / Write a review

$152.99

Price in reward points: 5000

Product Code: 8 Channel HDMI CCTV DVR 8 Indoor Vision Security Camera System K
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,
Video Input/Output Interface	BNC,
Video Input	8 Channel,
Video Output	1 Channel,
Other Video Output	HDMI,VGA,
Audio Input / Output	RCA 1-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display Resolution	NTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame Rate	NTSC: 240 fps @D1 / PAL: 200 fps @D1,
Record Mode	Time Schedule,Continuous,Manual/Schedule,
Mobile Device OS Support	Blackberry,iOS,Android,
Network Function	Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,IPv4, PPPoE Client,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
HDD Interface	SATA, Support between 250GB and 4TB,
HDD Port	1,
Playback Mode	Normal Play,Frame by Frame,Fast Rewind,Fast Forward,
Synchronous Playback (Channel)	8,
USB	USB Backup/USB 2.0,
Power Supply	12V DC,
Dimensions (LxWxH)	L200W210H45,

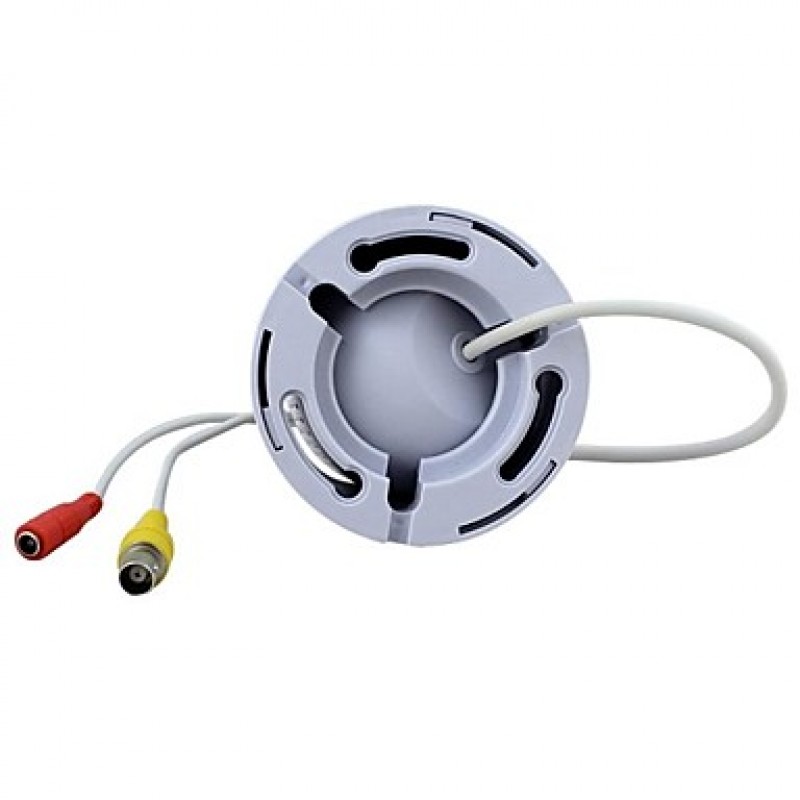

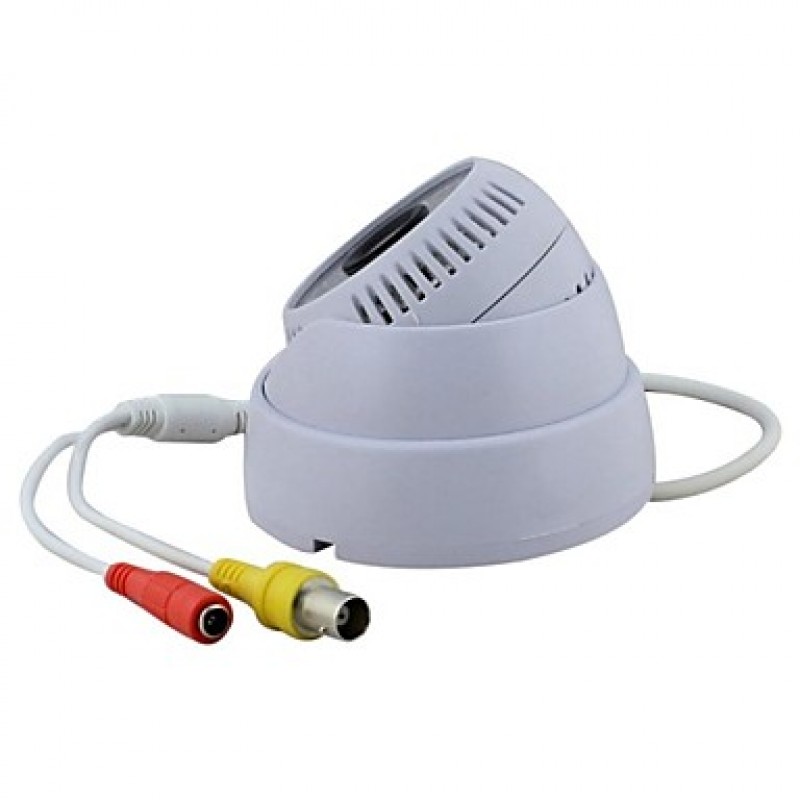

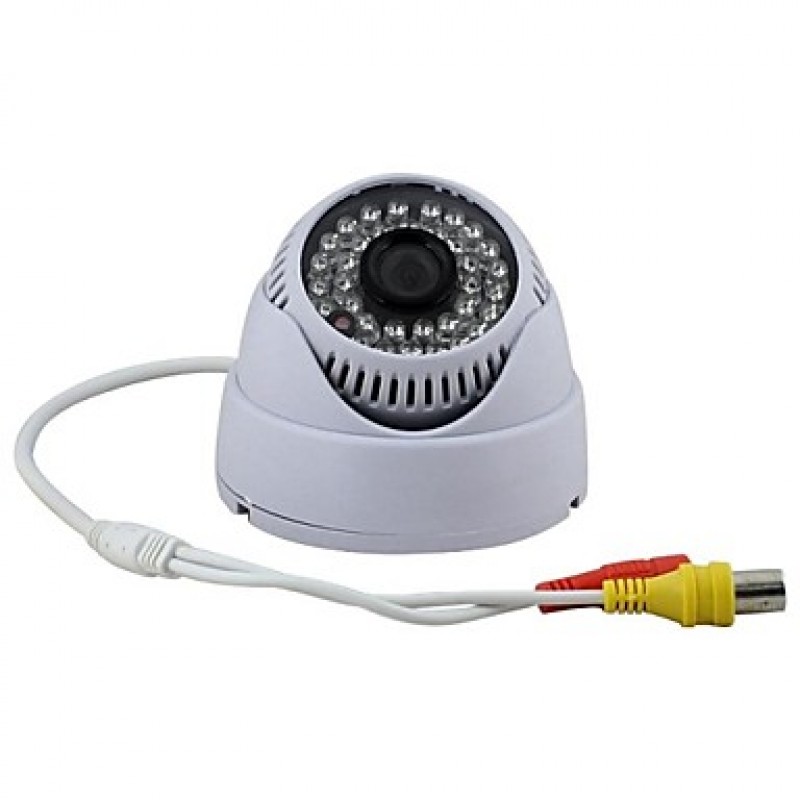

Dome Camera Parameters
Dome Camera Image Sensor	1/3" Color CMOS,
TV System	PAL/NTSC,
Horizontal Resolution	420 TV-Lines,
Lens (mm)	3.6mm,
Maximum IR Distance (m)	20M,
Features	Auto White Balance,Auto Gain Control,Back Light Comp,
Minimum Illumination	0.01 Lux,
S/N Ratio	≧ 45dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	14°F~122°F / -10°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	L90W90H80,
Gross Weight	0.21kg,
Material	Plastic Shell,
General
Camera Type	Dome Cameras,
OSD Languages	Chinese,Swedish,Russian,Finnish,Portuguese,Greek,Italian,Romanian,Spanish,German,Czech,French,Dutch,English,Turkish,
What's in the box	DVR,Power Cable,12V Power Supply,Dome Camera,1 To 4 DC Line,User Manual - English,Software CD,Mouse,
