Product Detail

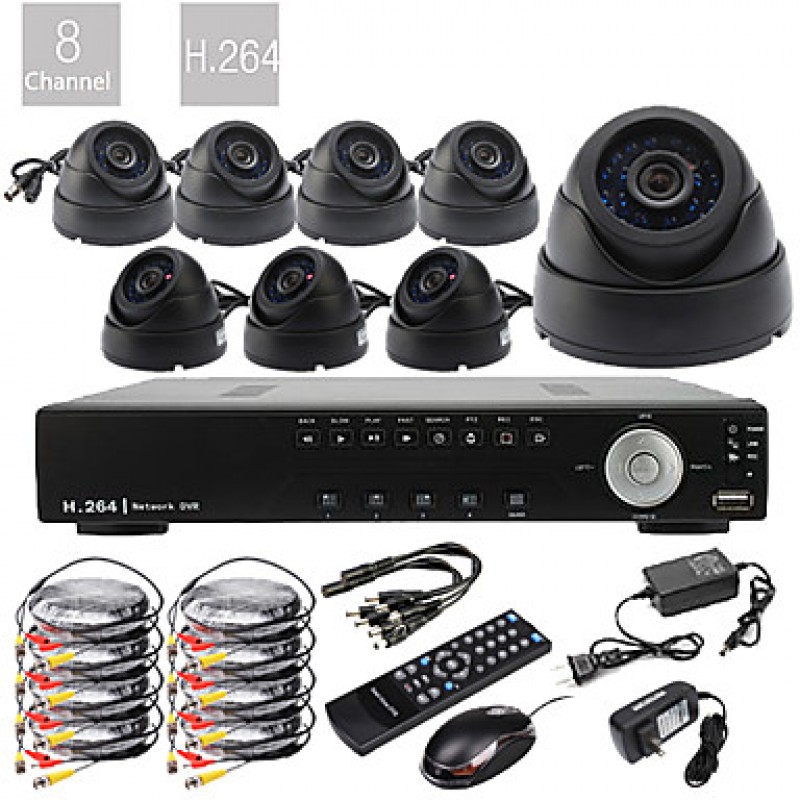

Ultra 8CH D1 Real Time H.264 High Definition CCTV DVR Kit (8pcs 600TVL Day Night Dome CMOS Cameras)

$169.99
  • Price in reward points: 5000
  • Product Code: Ultra 8CH D1 Real Time H.264 High Definition CCTV DVR Kit (8pcs
  • Availability: In Stock

Tags: DVR Kits

DVR Parameters
Video CompressionH.264,
Video SystemNTSC/PAL,
Video Input/Output InterfaceBNC,
Video Input8 Channel,
Video Output1 Channel,
Other Video OutputVGA,
Audio Input / OutputRCA 1-Channel Input / RCA 1-Channel Output,
Display Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display ResolutionNTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Record ModeMotion Detection,Time Schedule,Manual/Schedule,
Mobile Device OS SupportBlackberry,Windows Mobile,Symbian,iOS,Android,
Network FunctionLive Monitoring,IE Viewer,Mobile & Email Function,DVR Setting,
NetworkRJ45, 10M/100M,
Net ProtocolDHCP and TCP/UDP,
Remote AccessRemote Client Software and IE Browser,
PTZ ControlRS-485,
HDD InterfaceSATA, Support between 250GB and 2TB,
HDD Port1,
Built-in HDDNo,
Playback ModeFrame by Frame,Fast Rewind,Fast Forward,Normal Play,
Synchronous Playback (Channel)8,
USBUSB Backup/USB 2.1,
Power Supply12V DC,
Dimensions (LxWxH)370 x 285 x 72,
Bullet Camera Parameters
MaterialMetal Shell,

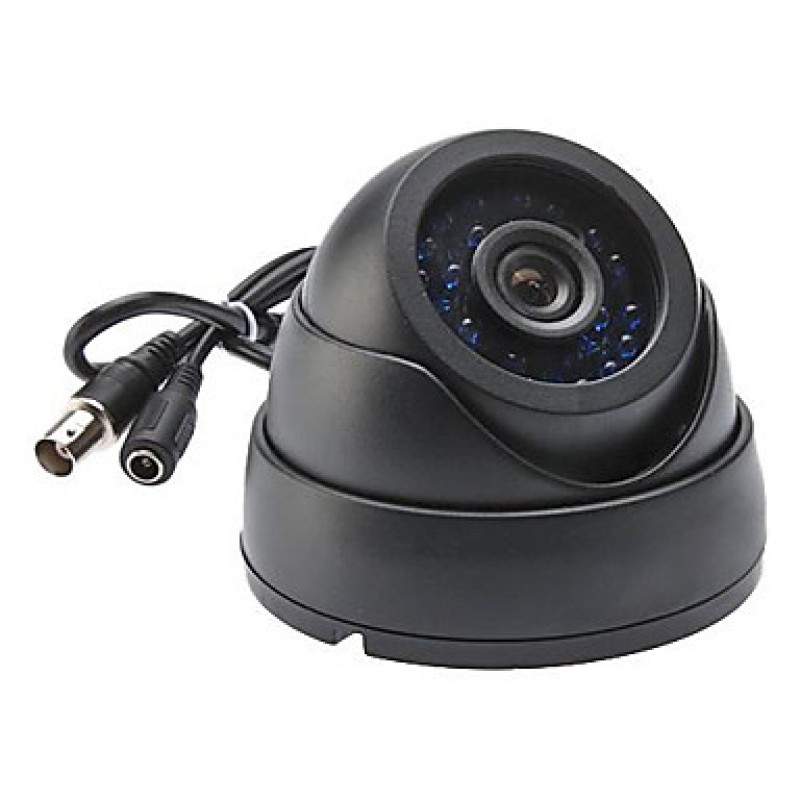

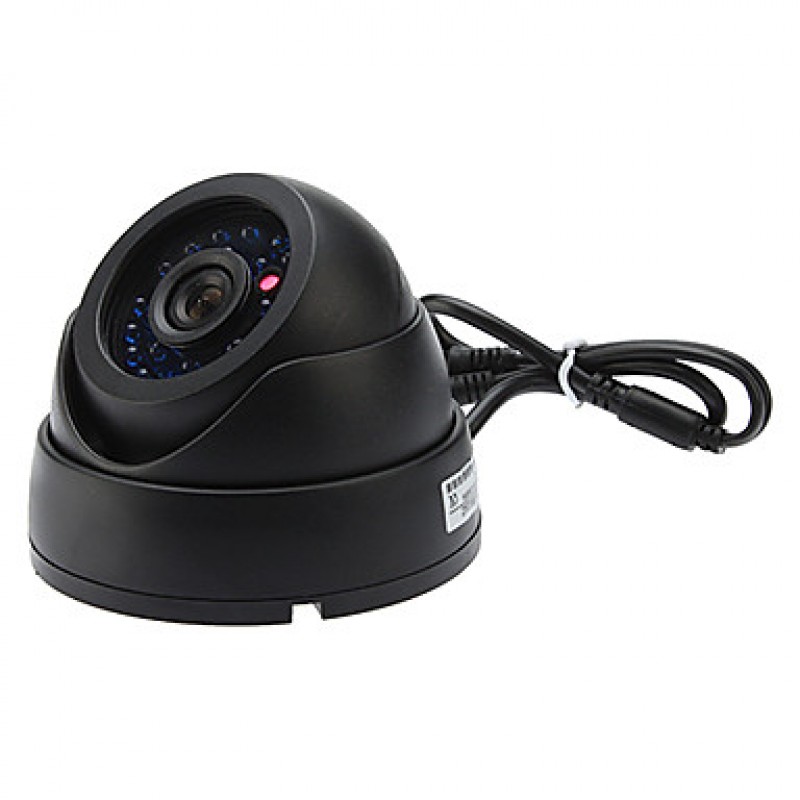

Dome Camera Parameters
Dome Camera Image Sensor1/4" Color CMOS,
TV SystemPAL/NTSC,
Effective PixelsNTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Horizontal Resolution600 TV-Lines,
Lens (mm)6,
Maximum IR Distance (m)15~20,
FeaturesAuto White Balance,
Minimum Illumination0.0 Lux,
S/N Ratio≧ 50dB,
Video Output1.0Vp-p, 75ohms,
Operating Temperature14°F~122°F / -10°C ~50°C,
Power12V DC,
Dimensions (LxWxH)90 x 90 x 65,
Gross Weight0.33 lbs,
MaterialPlastic Shell,
General
HomeGarage,Front door,Backyard,
BusinessStreet,School,Warehouse,Store,Office,
Camera TypeDome Cameras + Bullet Cameras,
OSD LanguagesRussian,Portuguese,Greek,Italian,Dutch,Spanish,German,Thai,French,Japanese,English,Chinese,Polish,
What's in the boxMouse,DVR,12V Power Supply,66ft Cable,Dome Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,
