Product Detail

Full 960H 8CH DVR and Outdoor/Indoor 800 TVLine Camera System

$235.99 $164.99
  • Price in reward points: 5000
  • Product Code: Full 960H 8CH DVR and Outdoor/Indoor 800 TVLine Camera System
  • Availability: In Stock

Tags: DVR Kits

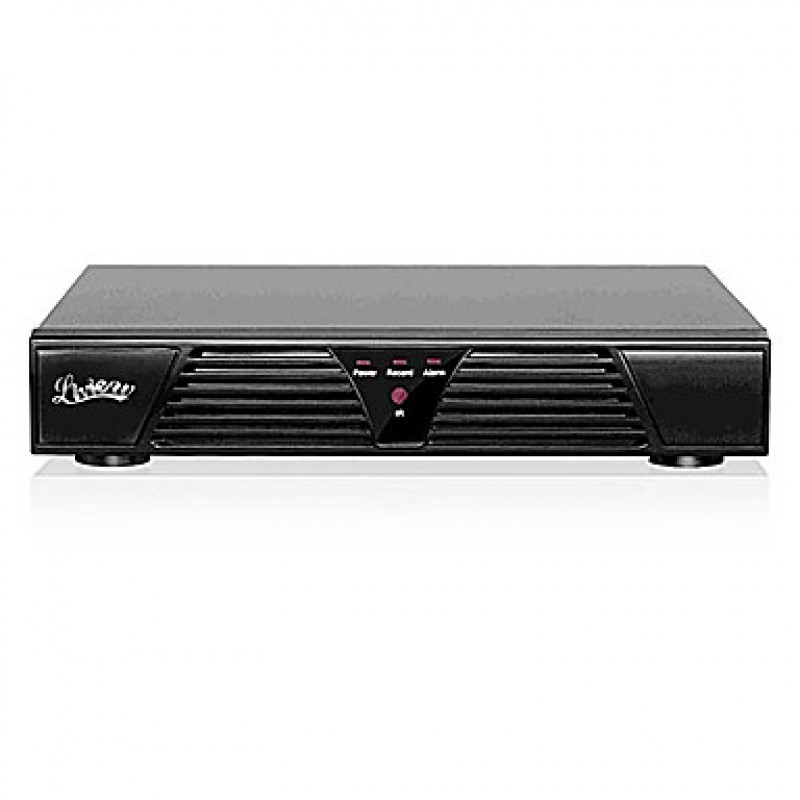

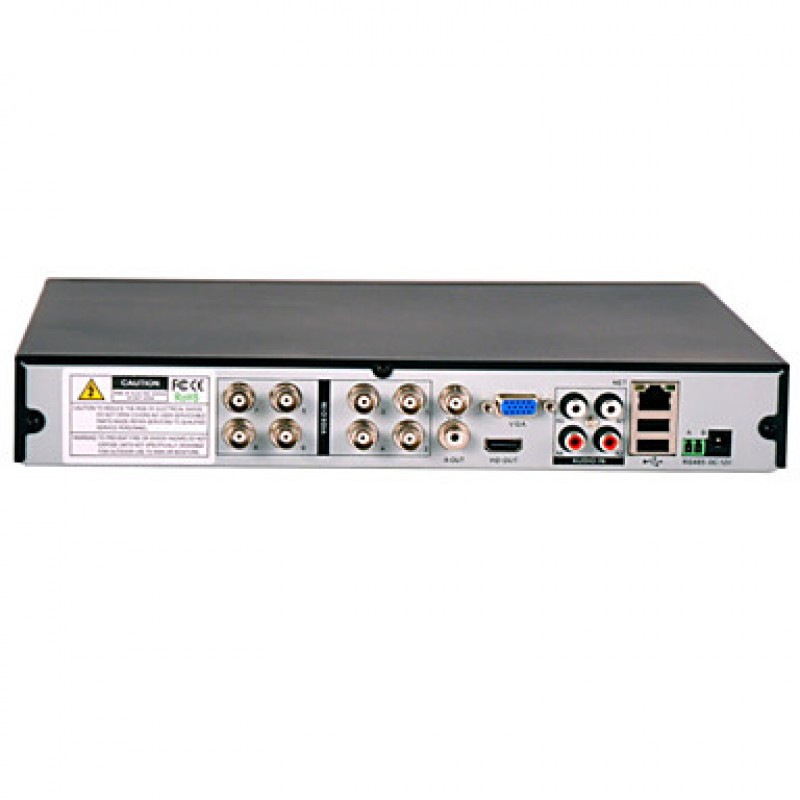

DVR Parameters
Video CompressionH.264,
Video SystemNTSC/PAL,
Video Input/Output InterfaceBNC,
Video Input8 Channel,
Video Output1 Channel,
Other Video OutputHDMI,VGA,
Audio Input / OutputRCA 4-Channel Input / RCA 1-Channel Output,
Display Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display ResolutionNTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame RateNTSC:120fps @960H / PAL: 100 fps @960H,
Record Resolution960H Real Time (960*576),
Record ModeTime Schedule,Manual/Schedule,Motion Detection,
Mobile Device OS SupportBlackberry,Windows 7,Windows Mobile,Symbian,Android,
Network FunctionIE Viewer,Mobile & Email Function,DVR Setting,Live Monitoring,
NetworkRJ45, 10M/100M,
Net ProtocolDHCP and TCP/UDP,IPv4, PPPoE Client,
Remote AccessRemote Client Software and IE Browser,
PTZ ControlRS-485,
HDD InterfaceSATA, Support between 250GB and 1TB,
HDD Port1,
Built-in HDDNo,
Playback ModeFrame by Frame,Fast Rewind,Fast Forward,Normal Play,
Synchronous Playback (Channel)8,
USBUSB Backup/USB 2.0,
Power Supply12V DC,
Dimensions (LxWxH)260x210x40MM,

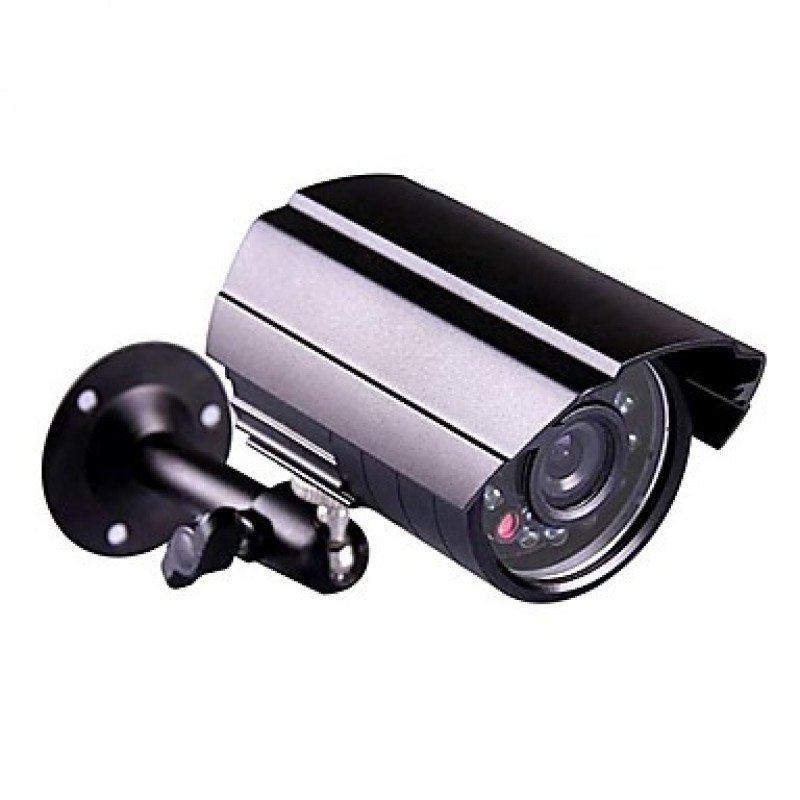

Bullet Camera Parameters
Bullet Camera Image Sensor1/4" Color CMOS,
TV SystemPAL/NTSC,
Effective PixelsNTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Horizontal Resolution800TVL,
Lens (mm)3.6mm,
Maximum IR Distance (m)20M,
FeaturesWaterproof,Auto White Balance,Auto Gain Control,Back Light Comp,
Minimum Illumination0.0 Lux,
S/N Ratio≧ 45dB,
Video Output1.0Vp-p, 75ohms,
Operating Temperature14°F~122°F / -10°C ~50°C,
Power12V DC,
MaterialMetal Shell,

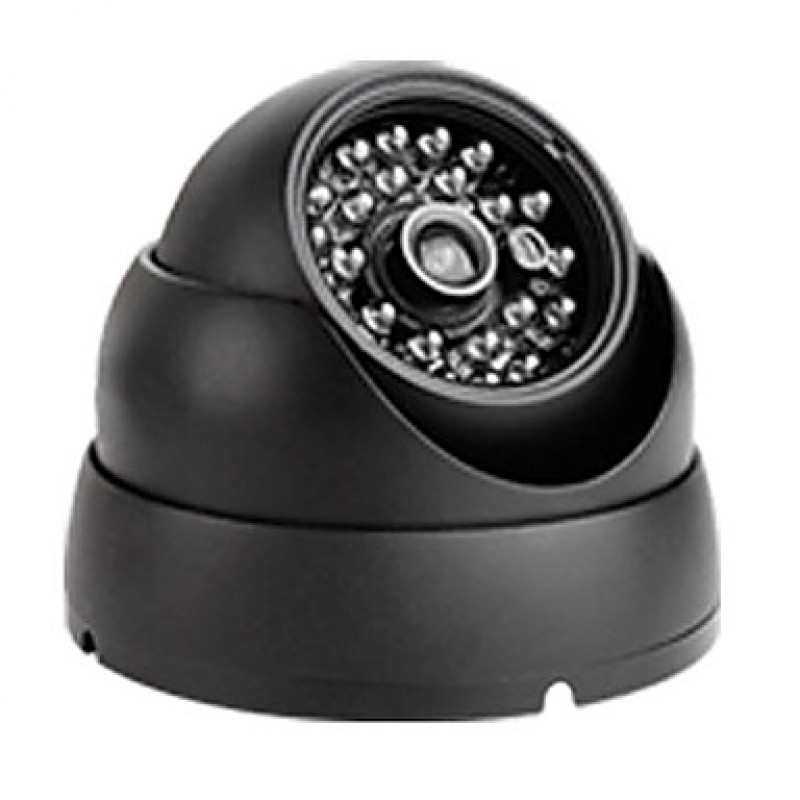

Dome Camera Parameters
Dome Camera Image Sensor1/4" Color CMOS,
TV SystemPAL/NTSC,
Effective PixelsNTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Horizontal Resolution800 TV-Lines,
Lens (mm)3.6mm,
Maximum IR Distance (m)25M,
FeaturesAuto White Balance,Auto Gain Control,Back Light Comp,
Minimum Illumination0.0 Lux,
S/N Ratio≧ 45dB,
Video Output1.0Vp-p, 75ohms,
Operating Temperature14°F~122°F / -10°C ~50°C,
Power12V DC,
MaterialPlastic Shell,
General
Model,
HomeGarage,Front door,Backyard,
BusinessStore,Office,Street,School,Warehouse,
Camera TypeDome Cameras + Bullet Cameras,
OSD LanguagesSwedish,Portuguese,Greek,Italian,Spanish,Dutch,German,Thai,French,Japanese,English,Chinese,Arabic,Russian,

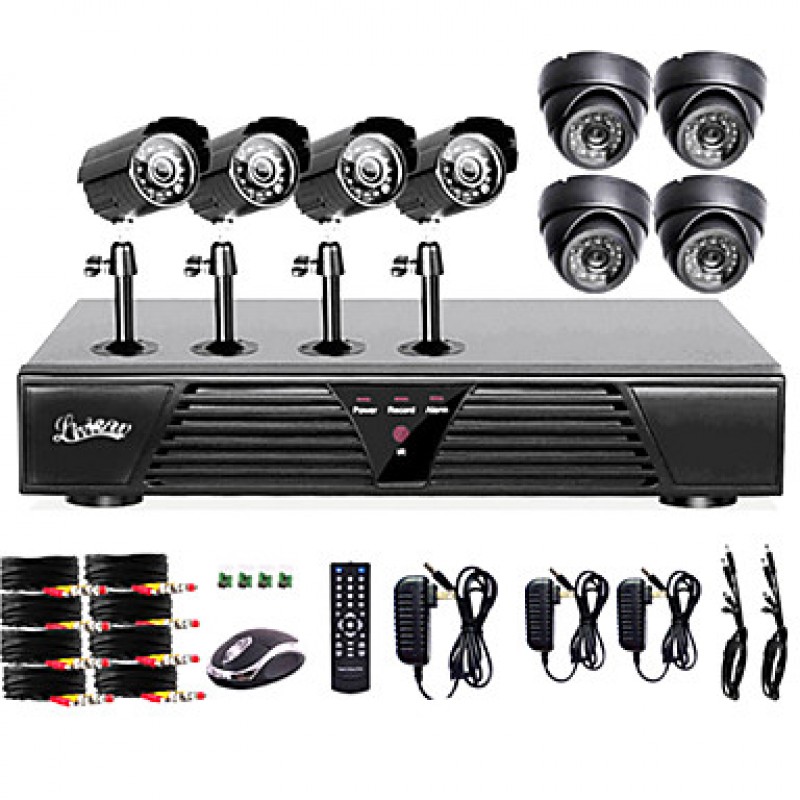

What's in the boxDome Camera,Bullet Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,Mouse,12V Power Supply,DVR,66ft Cable,
