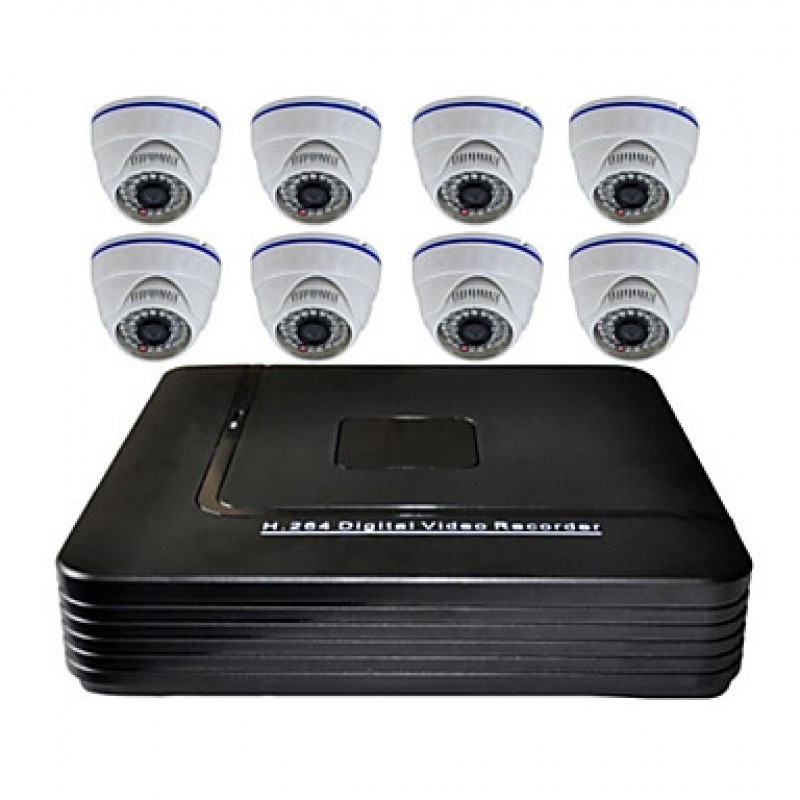

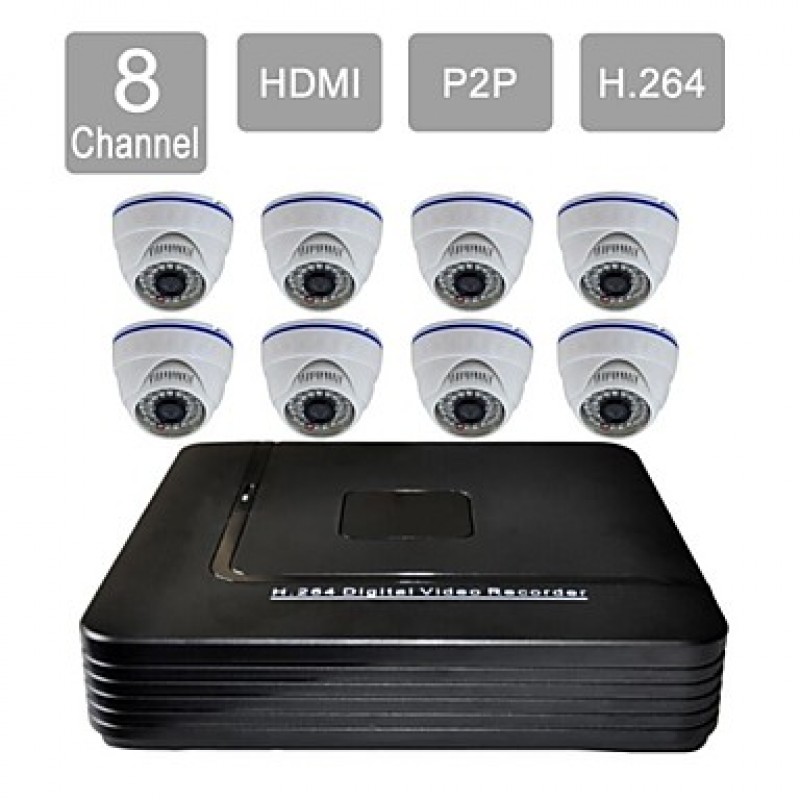

8 Channel HDMI CCTV DVR 8 Indoor Vision Security Camera System Kit 808CCW08V
- Price in reward points: 5000
- Product Code: 8 Channel HDMI CCTV DVR 8 Indoor Vision Security Camera System K
- Availability: In Stock
Tags: DVR Kits

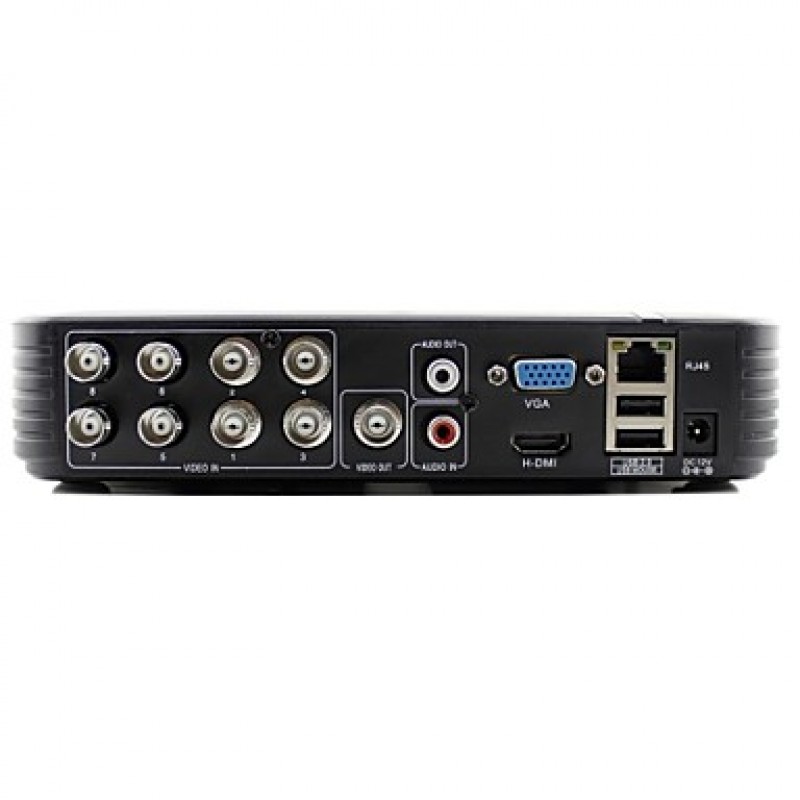

| DVR Parameters | |
|---|---|
| Video Compression | H.264, |
| Video System | NTSC/PAL, |
| Video Input/Output Interface | BNC, |
| Video Input | 8 Channel, |
| Video Output | 1 Channel, |
| Other Video Output | HDMI,VGA, |
| Audio Input / Output | RCA 1-Channel Input / RCA 1-Channel Output, |
| Display Frame Rate | NTSC: 240 fps @D1 / PAL: 200 fps @D1, |
| Display Resolution | NTSC: D1(704 x 480)/ PAL: D1(704 x 576), |
| Recording Frame Rate | NTSC: 240 fps @D1 / PAL: 200 fps @D1, |
| Record Mode | Manual/Schedule,Time Schedule,Continuous, |
| Mobile Device OS Support | Blackberry,iOS,Android, |
| Network Function | Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer, |
| Network | RJ45, 10M/100M, |
| Net Protocol | DHCP and TCP/UDP,IPv4, PPPoE Client, |
| Remote Access | Remote Client Software and IE Browser, |
| PTZ Control | RS-485, |
| HDD Interface | SATA, Support between 250GB and 4TB, |
| HDD Port | 1, |
| Playback Mode | Frame by Frame,Fast Rewind,Fast Forward,Normal Play, |
| Synchronous Playback (Channel) | 8, |
| USB | USB Backup/USB 2.0, |
| Power Supply | 12V DC, |
| Dimensions (LxWxH) | L200*W210*H45, |

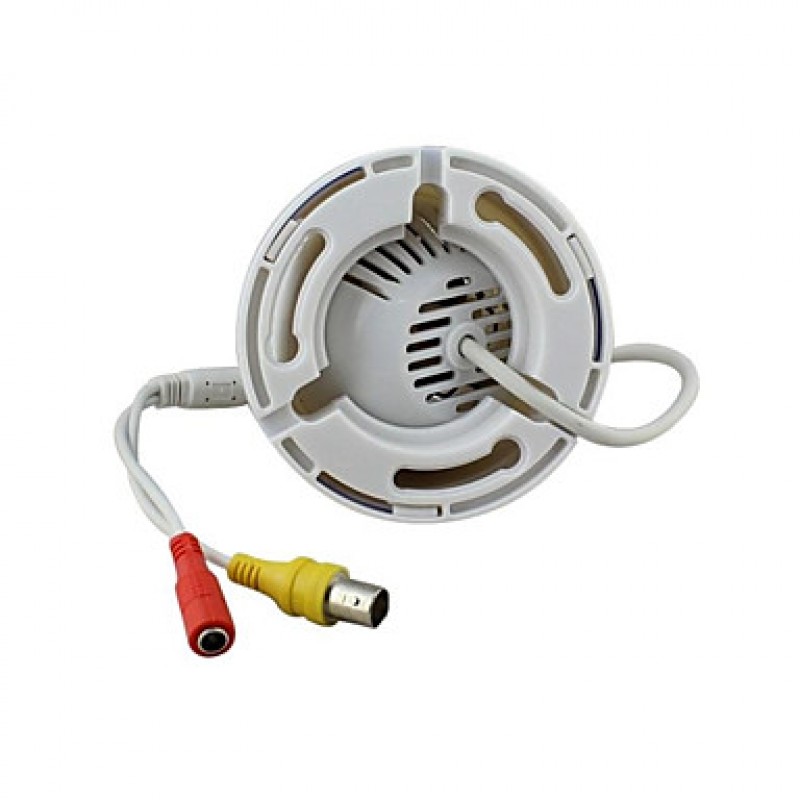

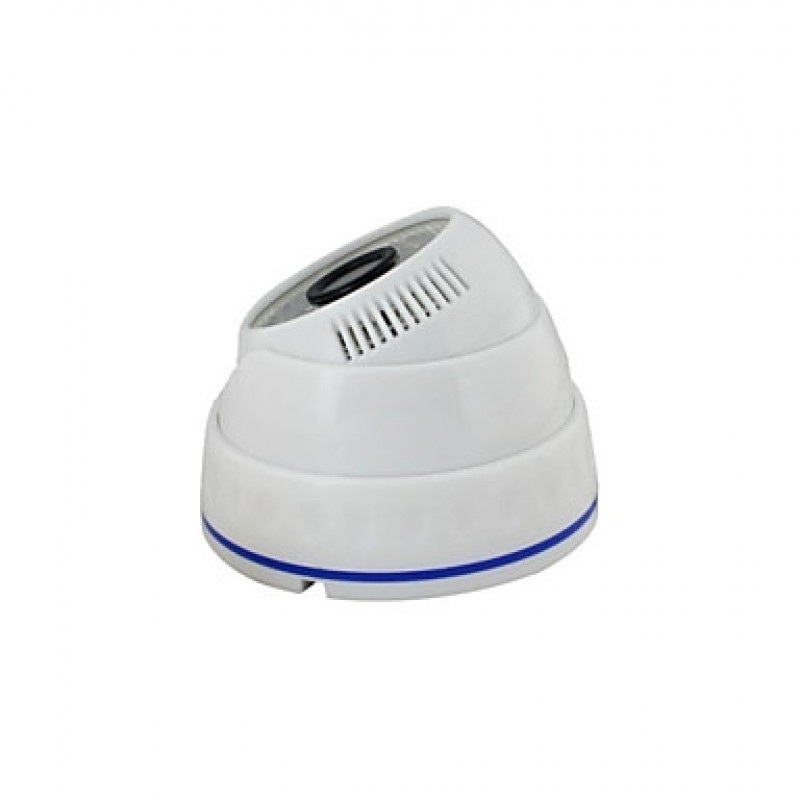

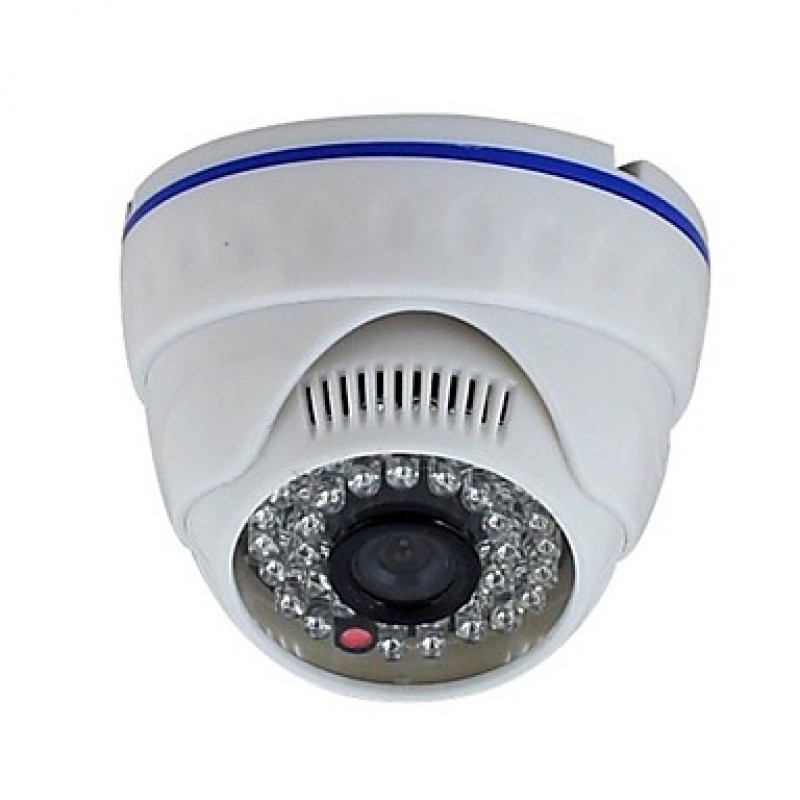

| Dome Camera Parameters | |
| Dome Camera Image Sensor | 1/4" Color CMOS, |
| TV System | PAL/NTSC, |
| Horizontal Resolution | 700 TV-Lines, |
| Lens (mm) | 3.6mm, |
| Maximum IR Distance (m) | 20M, |
| Features | Auto White Balance,Auto Gain Control,Back Light Comp, |
| Minimum Illumination | 0.01 Lux, |
| S/N Ratio | ≧ 45dB, |
| Video Output | 1.0Vp-p, 75ohms, |
| Operating Temperature | 14°F~122°F / -10°C ~50°C, |
| Power | 12V DC, |
| Dimensions (LxWxH) | L94*W94*H70, |
| Gross Weight | 0.2kg, |
| Material | Plastic Shell, |
| General | |
| Camera Type | Dome Cameras, |
| OSD Languages | Romanian,Spanish,Czech,German,French,Dutch,English,Turkish,Chinese,Swedish,Russian,Finnish,Portuguese,Greek,Italian, |

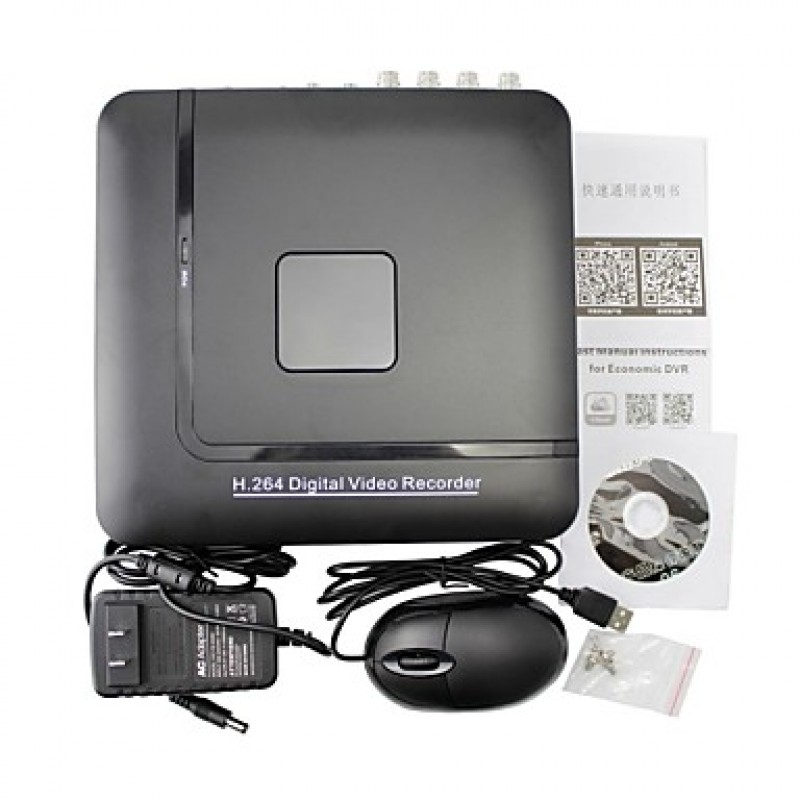

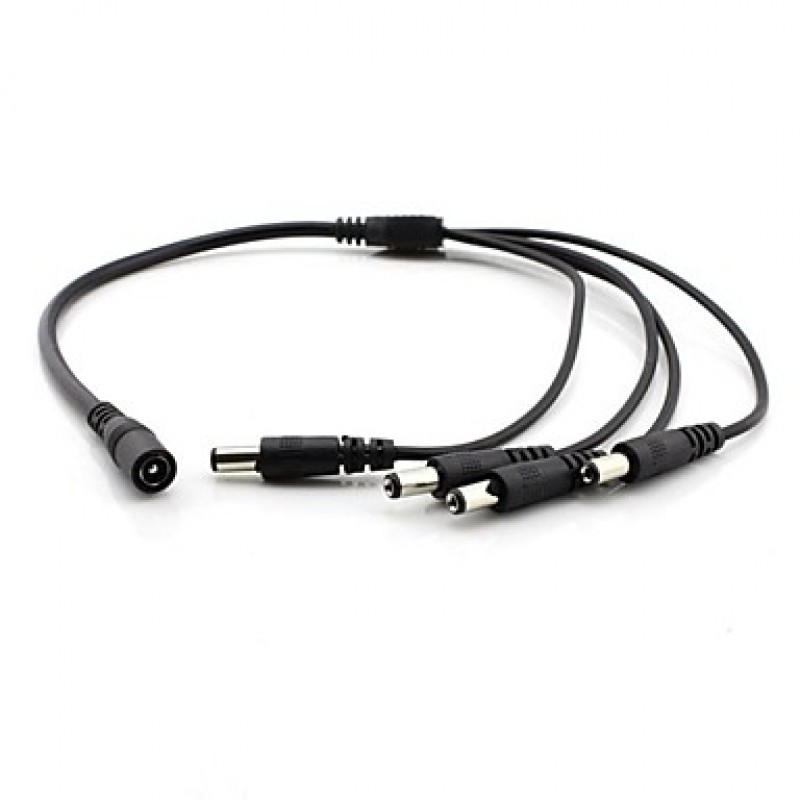

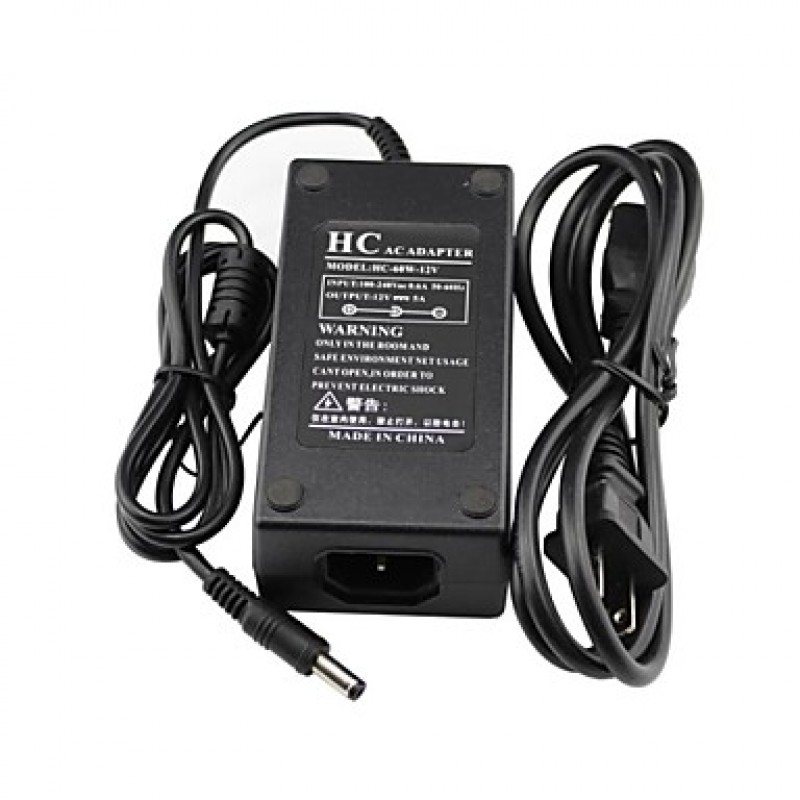

| What's in the box | 1 To 4 DC Line,User Manual - English,Software CD,Mouse,DVR,Power Cable,12V Power Supply,Dome Camera, |
