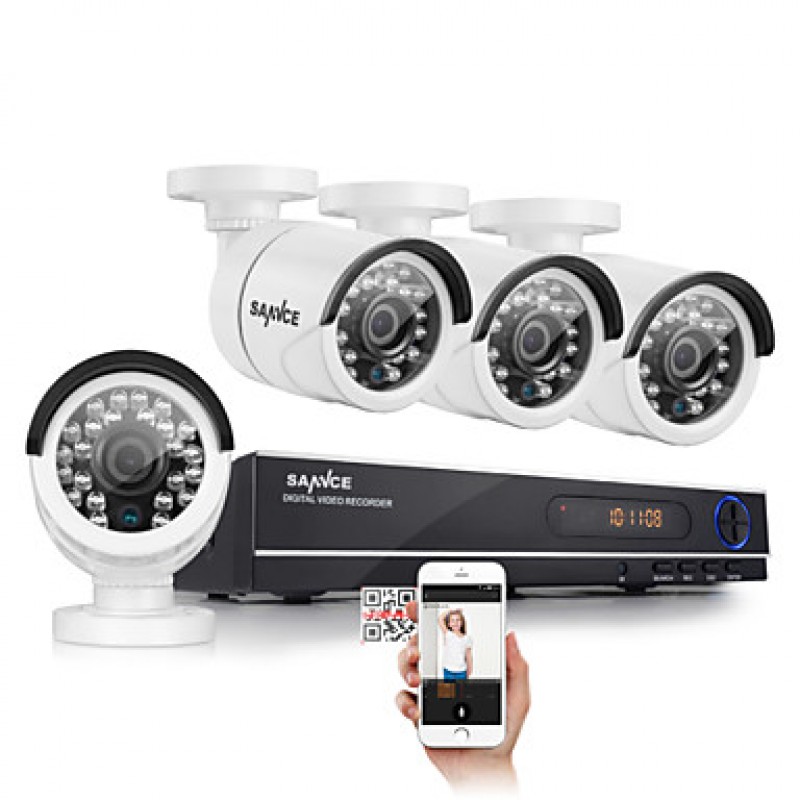

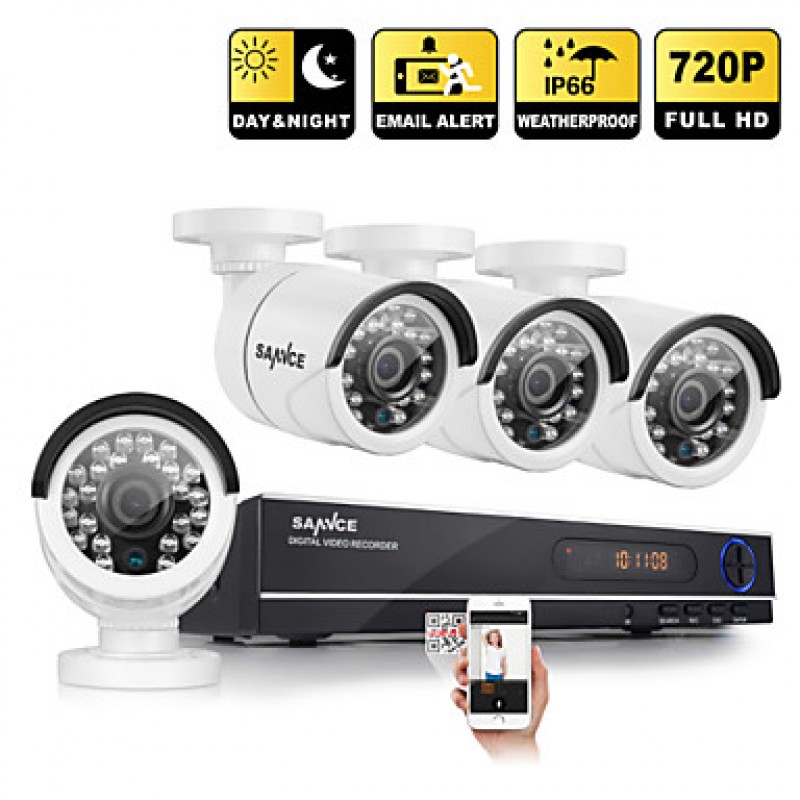

720P AHD 8CH LED Vedio CCTV DVR Home Surveillance Security Camera System (White)

0 reviews / Write a review

$241.79 $185.99

Price in reward points: 5000

Product Code: 720P AHD 8CH LED Vedio CCTV DVR Home Surveillance Security Camer
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

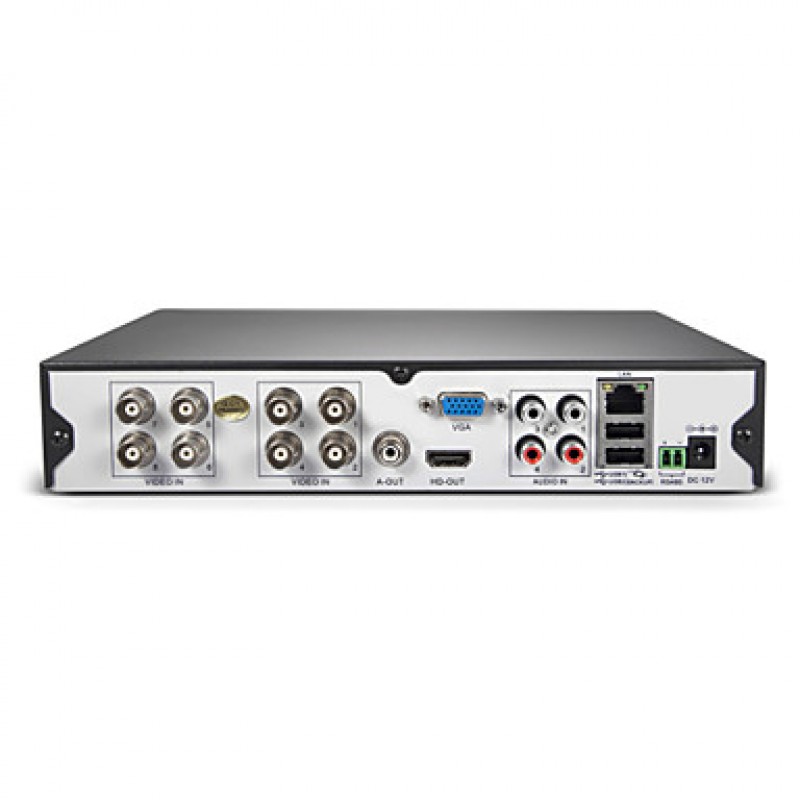

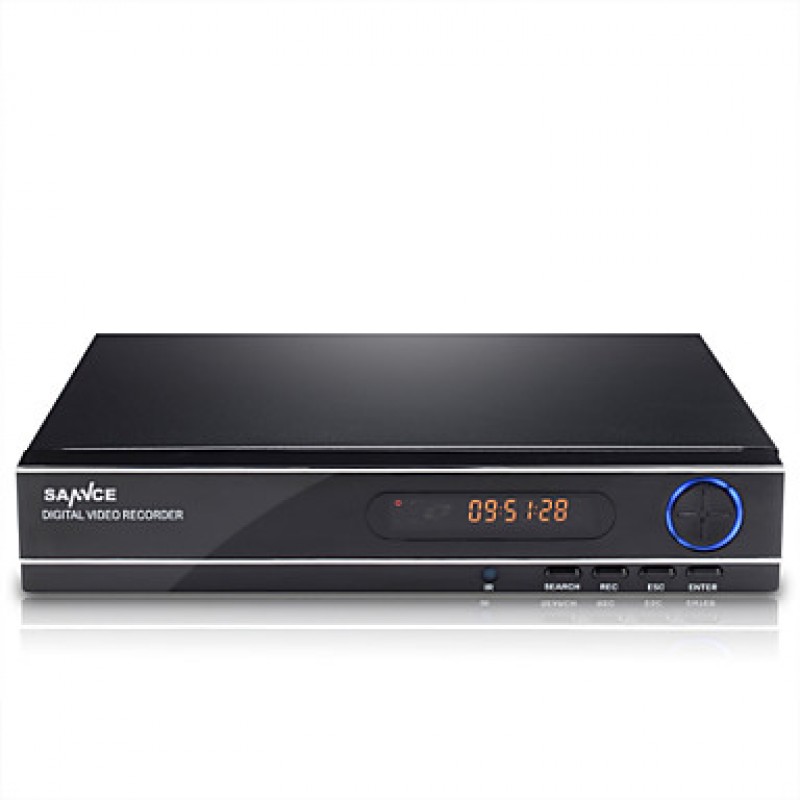

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,
Video Input/Output Interface	BNC,
Video Input	8 Channel,
Video Output	1 Channel,
Other Video Output	HDMI,VGA,
Audio Input / Output	RCA 8-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display Resolution	NTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame Rate	NTSC: 120fps @CIF / PAL: 100 fps @CIF,
Record Resolution	D1 Real Time (704576),CIF Real Time (352288),960H Real Time (960*576),
Record Mode	Alarm Motion Detection & Alarm Supported,Manual/Schedule,Motion Detection,Time Schedule,Continuous,
Mobile Device OS Support	iOS,Android,Blackberry,Windows 7,Windows Mobile,Symbian,
Network Function	Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
Alarm Input/Alarm Output	No port, but support motion detection & Email alert function,
HDD Interface	SATA, Support between 250GB and 4TB,
HDD Port	1,
Built-in HDD	No,
Playback Mode	Normal Play,Fast Rewind,Fast Forward,
Synchronous Playback (Channel)	4,
USB	USB Backup/USB 2.0,
Power Supply	12V DC,
Dimensions (LxWxH)	37.5x29x35cm,

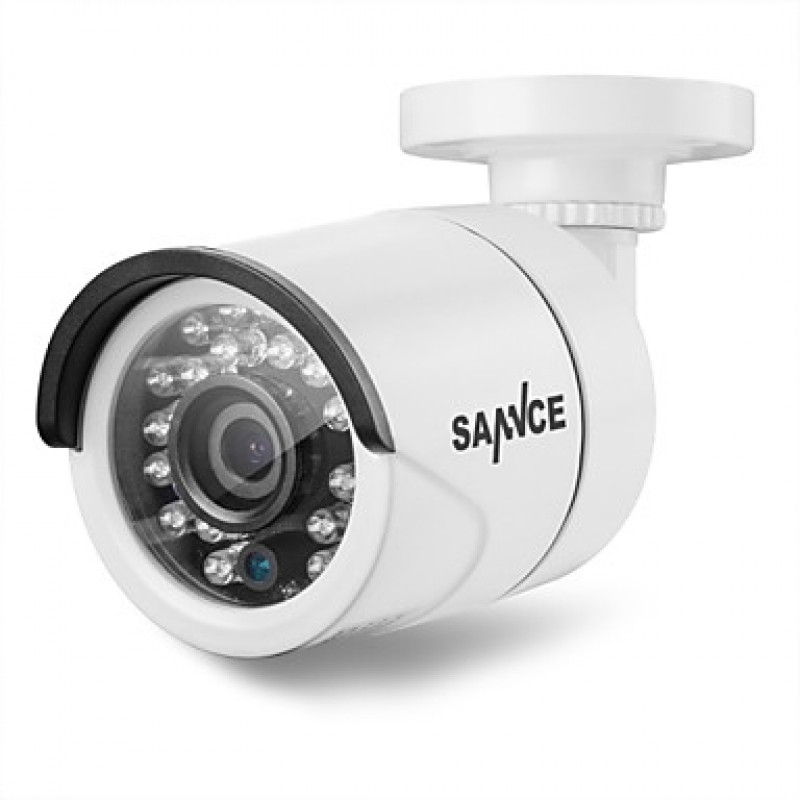

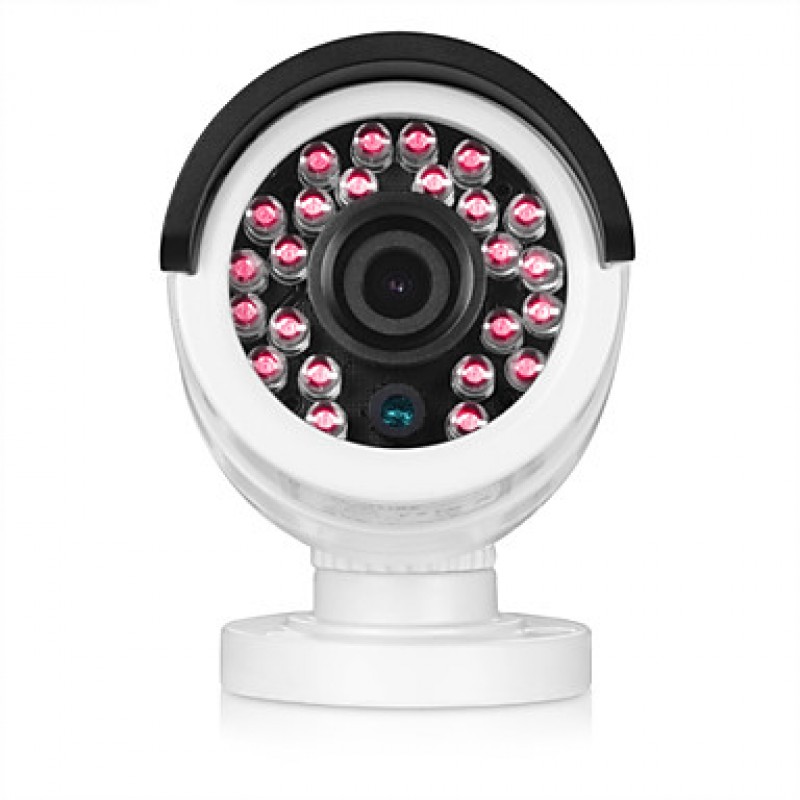

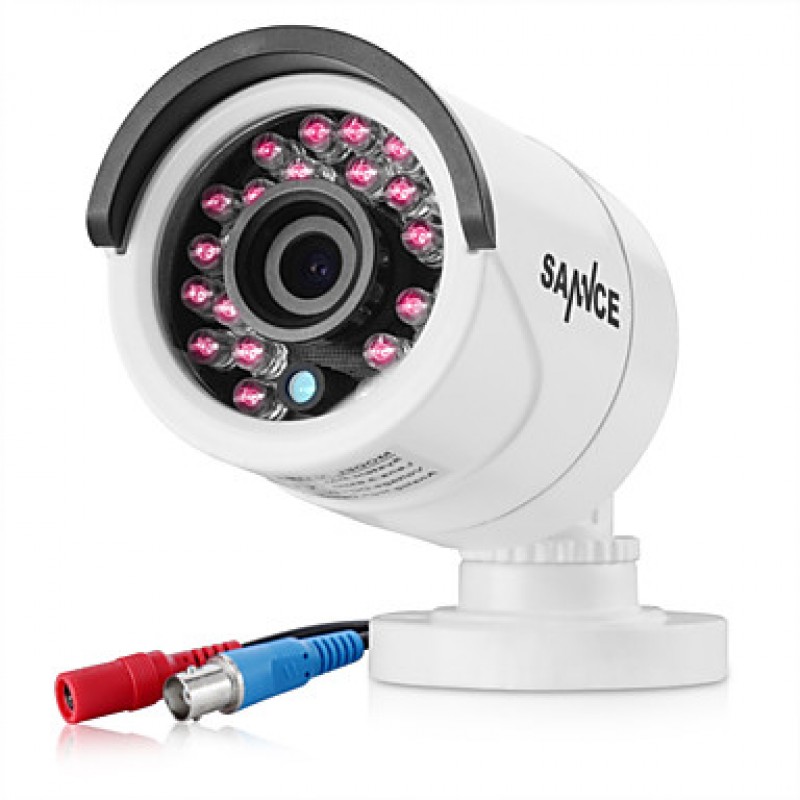

Bullet Camera Parameters
Sensor Type	Color CMOS,
Sensor Size	1/4",
Bullet Camera Image Sensor	1/4" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 960 (H) x 582 (V)/PAL: 976 (H) x 494 (V),
Lens (mm)	3.6mm,
Audio / Output	Built-in / RCA,
Maximum IR Distance (m)	30m,
Features	Waterproof,Auto White Balance,Auto Gain Control,Back Light Comp,
Minimum Illumination	0.01 Lux,
S/N Ratio	≧ 55dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	14°F~122°F / -10°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	37.5x29x35cm,
Material	Metal Shell,
Camera Shape	Bullet,
Camera QTY	4,
Dome Camera Parameters
Sensor Type	Color CMOS,
Sensor Size	1/4",
Dome Camera Image Sensor	1/4" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 960 (H) x 582 (V)/PAL: 976 (H) x 494 (V),
Horizontal Resolution	1000 TV-Lines,
Lens (mm)	3.6mm,
Audio / Output	Built-in / RCA,
Maximum IR Distance (m)	30m,
Features	Auto Gain Control,Back Light Comp,Waterproof,Auto White Balance,
Minimum Illumination	0.01 Lux,
S/N Ratio	≧ 48dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	14°F~122°F / -10°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	37.5x29x35CM,
Material	Metal Shell,
General
Home	Garage,Front door,Backyard,Baby Room,
Business	Office,Street,School,Warehouse,Store,
Camera Type	Bullet Cameras,
OSD Languages	Czech,Portuguese,Vietnamese,Italian,Japanese,Spanish,Turkish,German,French,Chinese,English,Finnish,Arabic,Greek,Polish,Romanian,Russian,

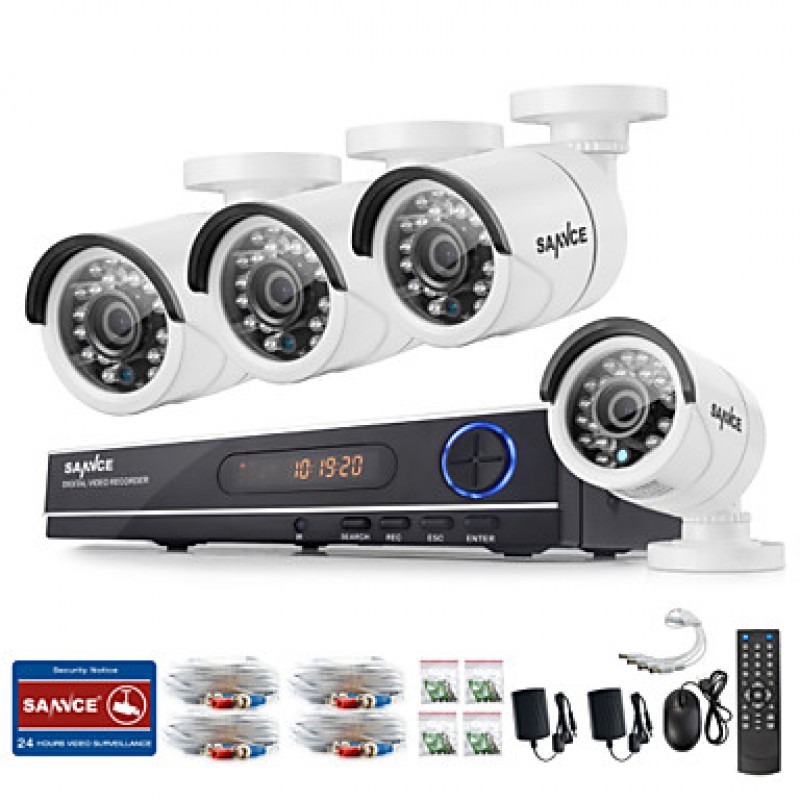

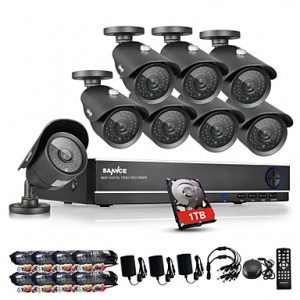

What's in the box	User Manual - English,Software CD,Remote Control,Mouse,12V Power Supply,DVR,60ft Cable,Bullet Camera,1 To 4 DC Line,
