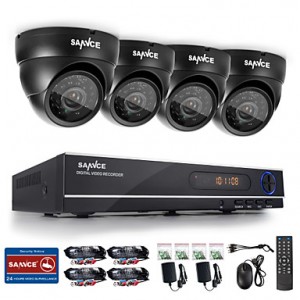

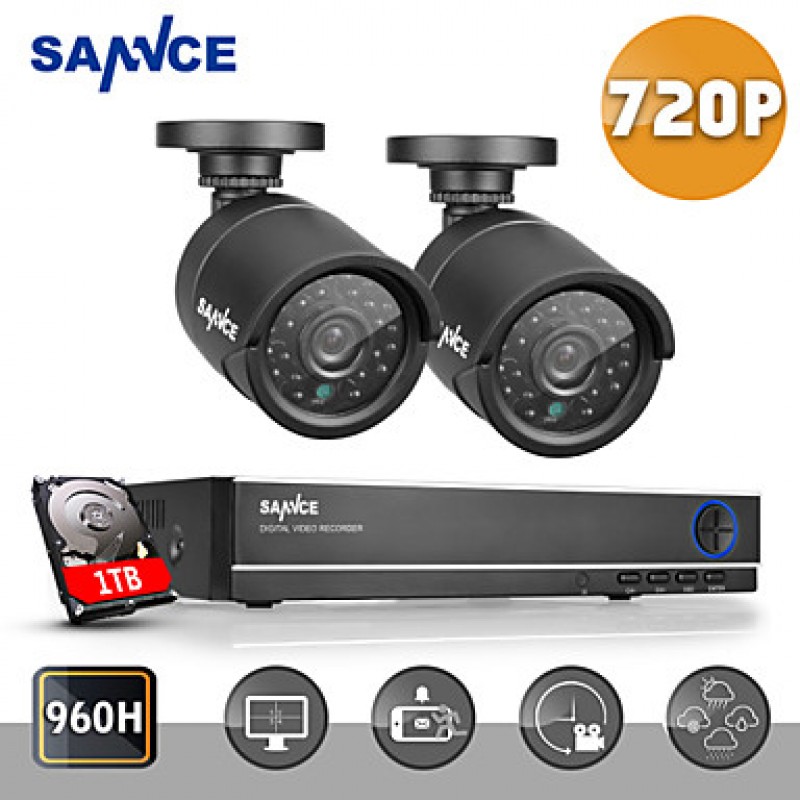

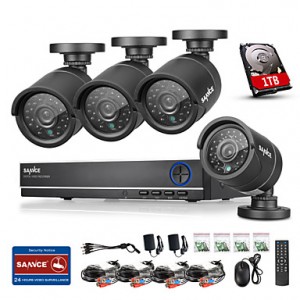

4CH 720P AHD Vedio DVR CCTV Home Surveillance Security Camera System with 1TB HDD
$256.09
$196.99
- Price in reward points: 5000
- Product Code: 4CH 720P AHD Vedio DVR CCTV Home Surveillance Security Camera Sy
- Availability: In Stock
Tags: DVR Kits

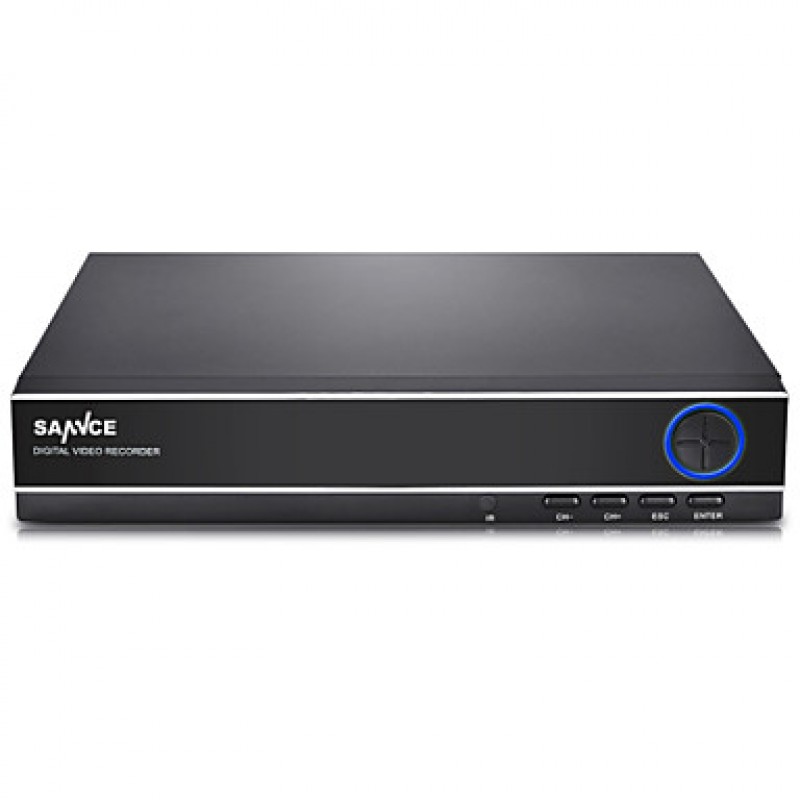

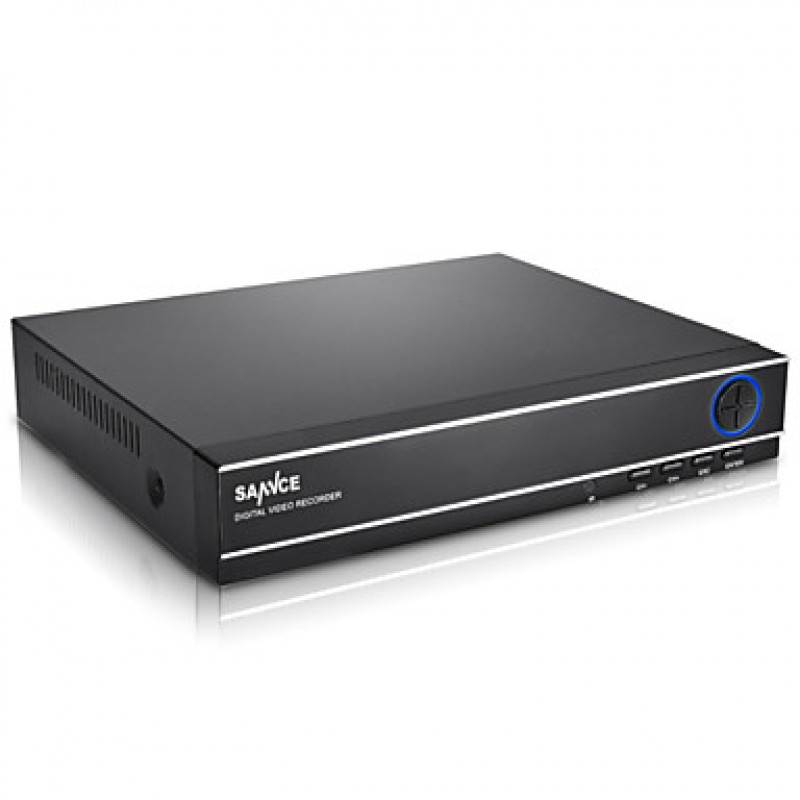

DVR Parameters | |
---|---|
Video Compression | H.264, |
Video System | NTSC/PAL, |

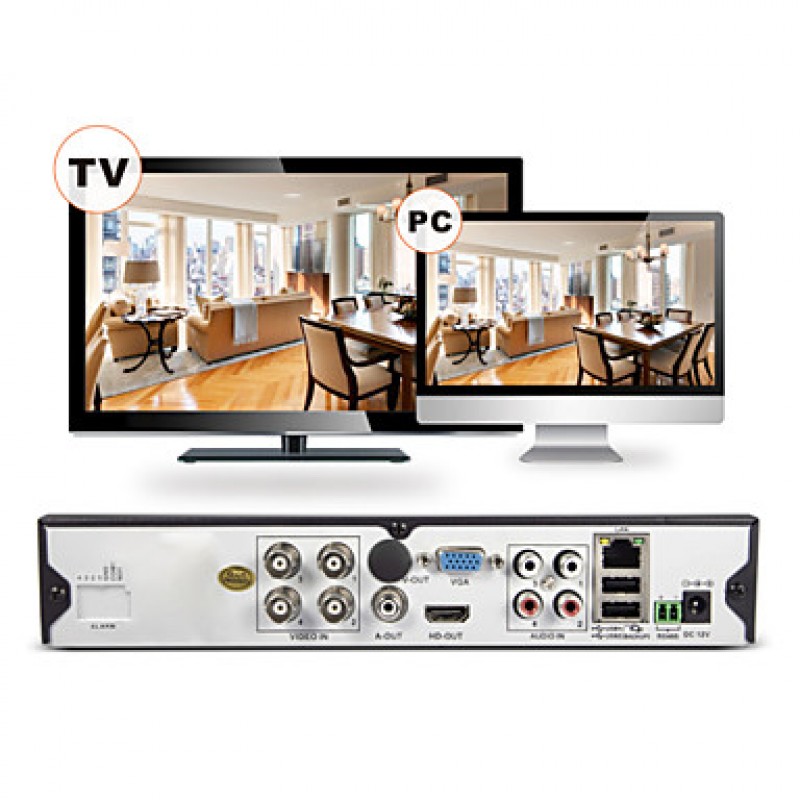

Video Input/Output Interface | BNC, |
Video Input | 4 Channel, |
Video Output | 1 Channel, |
Other Video Output | HDMI,VGA, |
Audio Input / Output | RCA 8-Channel Input / RCA 1-Channel Output, |
Display Frame Rate | NTSC: 240 fps @D1 / PAL: 200 fps @D1, |
Display Resolution | NTSC: D1(704 x 480)/ PAL: D1(704 x 576), |
Recording Frame Rate | NTSC: 120fps @CIF / PAL: 100 fps @CIF, |
Record Resolution | 960H Real Time (960*576),D1 Real Time (704*576),CIF Real Time (352*288), |
Record Mode | Alarm Motion Detection & Alarm Supported,Manual/Schedule,Motion Detection,Time Schedule,Continuous, |
Mobile Device OS Support | Windows Mobile,iOS,Android, |
Network Function | Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer, |
Network | RJ45, 10M/100M, |
Net Protocol | DHCP and TCP/UDP, |
Remote Access | Remote Client Software and IE Browser, |
PTZ Control | RS-485, |
Alarm Input/Alarm Output | No port, but support motion detection & Email alert function, |
HDD Interface | SATA, Support between 250GB and 4TB, |
HDD Port | 1, |
Built-in HDD | 1TB,No, |
Playback Mode | Fast Forward,Normal Play,Fast Rewind, |
Synchronous Playback (Channel) | 4, |
USB | USB Backup/USB 2.0, |
Power Supply | 12V DC, |
Dimensions (LxWxH) | 249*220*45mm, |

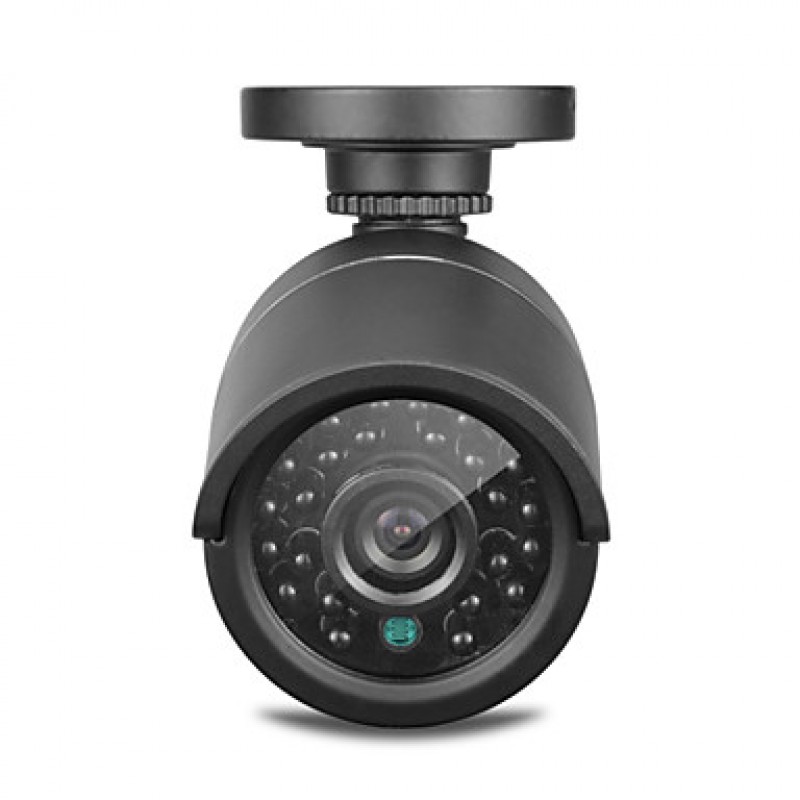

Bullet Camera Parameters | |
Sensor Type | Color CMOS, |
Sensor Size | 1/4", |
Bullet Camera Image Sensor | 1/4" Color CMOS, |
TV System | PAL/NTSC, |
Effective Pixels | 720P, |
Lens (mm) | 3.6mm, |
Audio / Output | Built-in / RCA, |
Maximum IR Distance (m) | 30m, |
Features | Waterproof,Auto White Balance,Auto Gain Control,Back Light Comp, |
Minimum Illumination | 0.01 Lux, |
S/N Ratio | ≧ 55dB, |
Video Output | 1.0Vp-p, 75ohms, |
Operating Temperature | 14°F~122°F / -10°C ~50°C, |
Power | 12V DC, |
Dimensions (LxWxH) | 146*60*60mm, |
Material | Metal Shell, |
Camera Shape | Bullet, |
Camera QTY | 2, |
AHD Format | AHD-M, |
Dome Camera Parameters | |
Sensor Type | Color CMOS, |
Sensor Size | 1/4", |
Dome Camera Image Sensor | 1/4" Color CMOS, |
TV System | PAL/NTSC, |
Effective Pixels | 720p, |
Lens (mm) | 3.6mm, |
Audio / Output | Built-in / RCA, |
Maximum IR Distance (m) | 30m, |
Features | Waterproof,Auto White Balance,Auto Gain Control,Back Light Comp, |
Minimum Illumination | 0.01 Lux, |
S/N Ratio | ≧ 48dB, |
Video Output | 1.0Vp-p, 75ohms, |
Operating Temperature | 14°F~122°F / -10°C ~50°C, |
Power | 12V DC, |
Material | Metal Shell, |
AHD Format | AHD-M, |
General | |
Home | Garage,Front door,Backyard,Baby Room, |
Business | Store,Office,Street,School,Warehouse, |
Camera Type | Bullet Cameras, |
OSD Languages | Finnish,Arabic,English,Greek,Polish,Romanian,Russian,Czech,Portuguese,Italian,Vietnamese,Spanish,Japanese,German,Turkish,French,Chinese, |

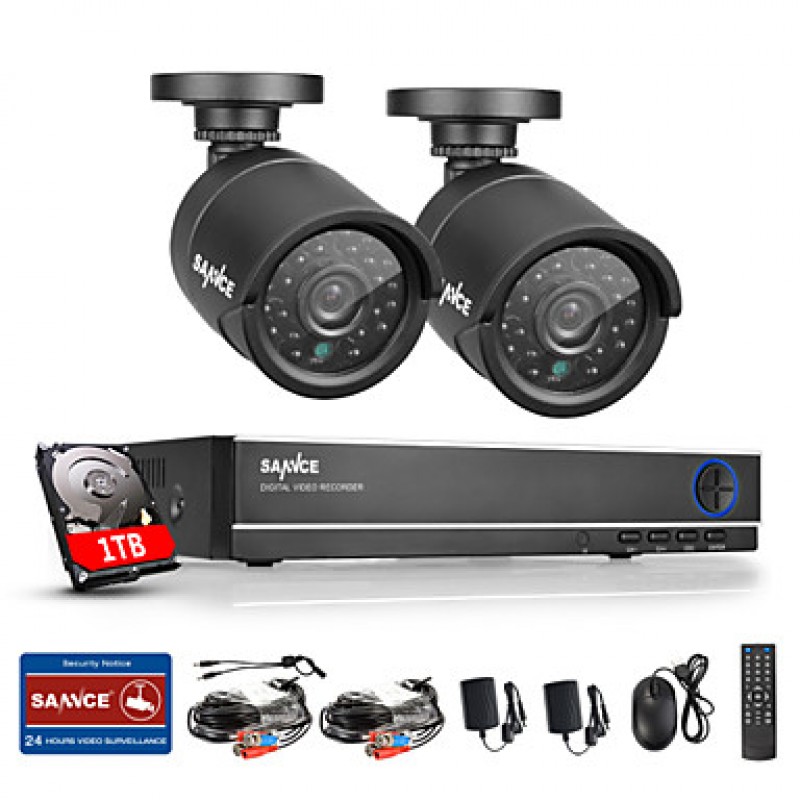

What's in the box | 1TB Hard Drive,Bullet Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,12V Power Supply,Mouse,60ft Cable,DVR, |
