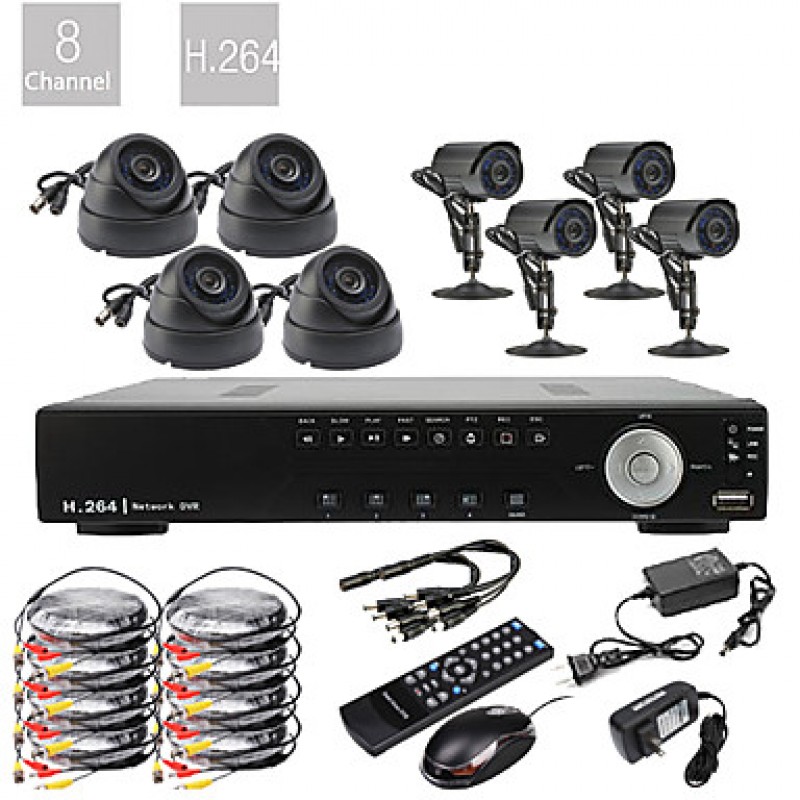

Ultra 8CH Real Time H.264 600TVL High Definition CCTV DVR Kit (8 Waterproof Day Night CMOS Cameras)

$223.99
  • Price in reward points: 5000
  • Product Code: Ultra 8CH Real Time H.264 600TVL High Definition CCTV DVR Kit (8
  • Availability: In Stock

Tags: DVR Kits

DVR Parameters
Video CompressionH.264,
Video SystemNTSC/PAL,
Video Input/Output InterfaceBNC,
Video Input8 Channel,
Video Output1 Channel,
Other Video OutputVGA,
Audio Input / OutputRCA 1-Channel Input / RCA 1-Channel Output,
Display Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display ResolutionNTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Record ModeManual/Schedule,Motion Detection,Time Schedule,
Mobile Device OS SupportiOS,Android,Blackberry,Windows Mobile,Symbian,
Network FunctionMobile & Email Function,DVR Setting,Live Monitoring,IE Viewer,
NetworkRJ45, 10M/100M,
Net ProtocolDHCP and TCP/UDP,
Remote AccessRemote Client Software and IE Browser,
PTZ ControlRS-485,
HDD InterfaceSATA, Support between 250GB and 2TB,
HDD Port1,
Built-in HDDNo,
Playback ModeFast Rewind,Fast Forward,Normal Play,Frame by Frame,
Synchronous Playback (Channel)8,
USBUSB Backup/USB 2.1,
Power Supply12V DC,
Dimensions (LxWxH)370 x 285 x 72,

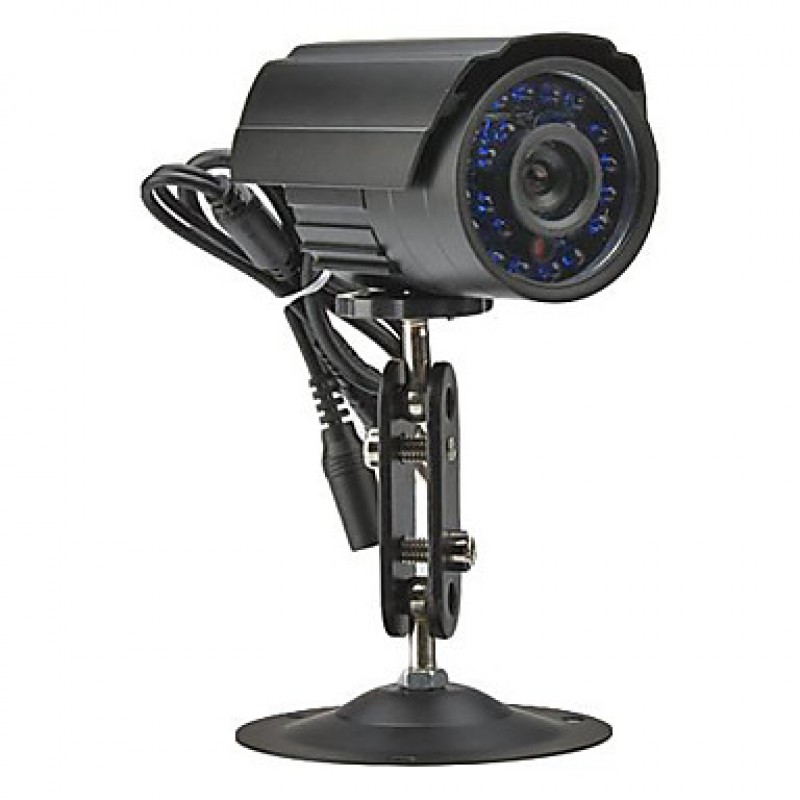

Bullet Camera Parameters
Bullet Camera Image Sensor1/4" Color CMOS,
TV SystemPAL/NTSC,
Effective PixelsNTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Lens (mm)6,
Maximum IR Distance (m)15~20,
FeaturesWaterproof,Auto White Balance,
Minimum Illumination0.0 Lux,
S/N Ratio≧ 48dB,
Video Output1.0Vp-p, 75ohms,
Operating Temperature-25°F~122°F / -32°C ~50°C,
Power12V DC,
Dimensions (LxWxH)93 x 65 x 60,
Gross Weight0.50 lbs,
MaterialMetal Shell,
Dome Camera Parameters
Dome Camera Image Sensor1/4" Color CMOS,
TV SystemPAL/NTSC,
Effective PixelsNTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Horizontal Resolution600 TV-Lines,
Lens (mm)6,
Maximum IR Distance (m)15~20,
FeaturesAuto White Balance,
Minimum Illumination0.0 Lux,
S/N Ratio≧ 50dB,
Video Output1.0Vp-p, 75ohms,
Operating Temperature14°F~122°F / -10°C ~50°C,
Power12V DC,
Dimensions (LxWxH)90 x 90 x 65,
Gross Weight0.33 lbs,
MaterialPlastic Shell,
General
HomeGarage,Front door,Backyard,
BusinessOffice,Street,School,Warehouse,Store,
Camera TypeDome Cameras + Bullet Cameras,
OSD LanguagesDutch,Spanish,Thai,German,French,Japanese,English,Chinese,Polish,Russian,Portuguese,Greek,Italian,
What's in the boxBullet Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,12V Power Supply,Mouse,DVR,66ft Cable,Dome Camera,
