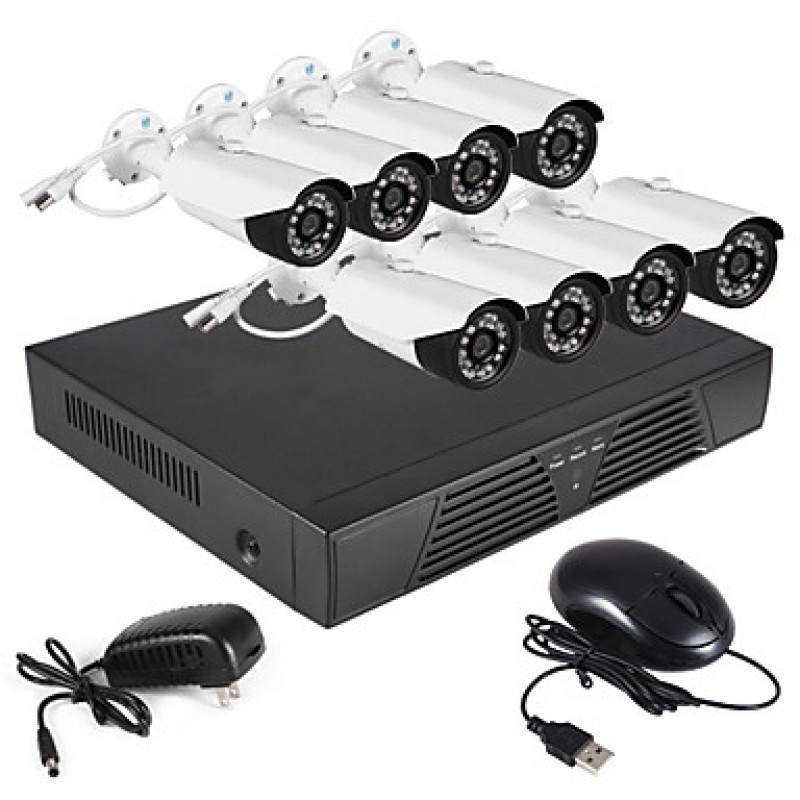

8CH HDMI 960H Network DVR 700TVL Outdoor Day/Night Security Camera System
- Price in reward points: 5000
- Product Code: 8CH HDMI 960H Network DVR 700TVL Outdoor Day/Night Security Came
- Availability: In Stock
Tags: DVR Kits

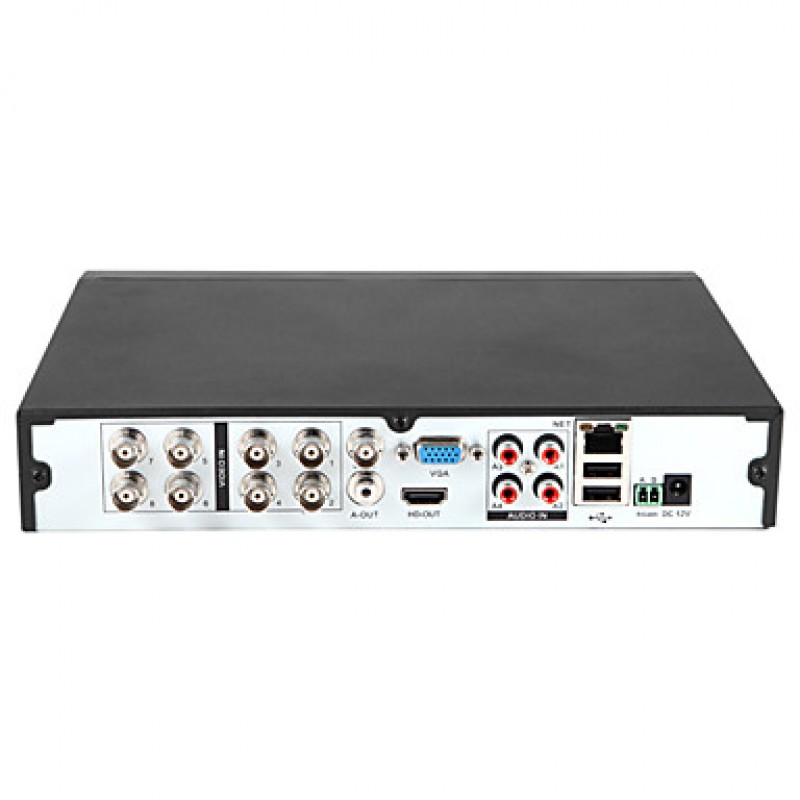

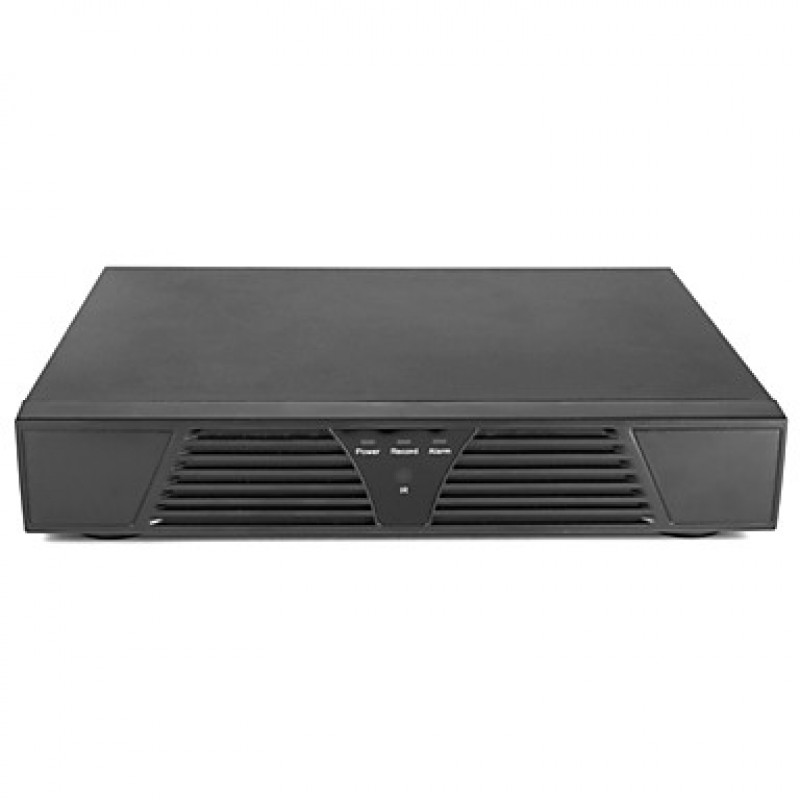

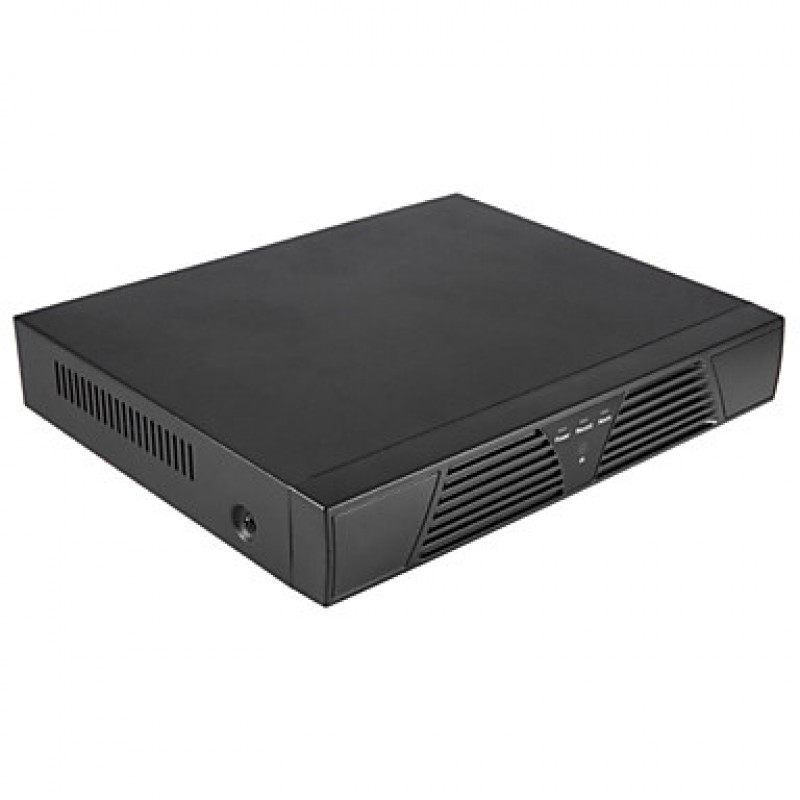

| DVR Parameters | |
|---|---|
| Video Compression | H.264, |
| Video System | NTSC/PAL, |
| Video Input/Output Interface | BNC, |
| Video Input | 8 Channel, |
| Video Output | 1 Channel, |
| Other Video Output | VGA, |
| Audio Input / Output | RCA 4-Channel Input / RCA 1-Channel Output, |
| Display Frame Rate | NTSC: 240 fps @D1 / PAL: 200 fps @D1, |
| Display Resolution | NTSC: D1(704 x 480)/ PAL: D1(704 x 576), |
| Recording Frame Rate | NTSC: 240 fps @D1 / PAL: 200 fps @D1, |
| Record Resolution | 960H Real Time (960*576), |
| Record Mode | Time Schedule,Manual/Schedule,Motion Detection, |
| Mobile Device OS Support | Blackberry,Windows 7,Windows Mobile,Symbian,Android, |
| Network Function | IE Viewer,Mobile & Email Function,DVR Setting,Live Monitoring, |
| Network | RJ45, 10M/100M, |
| Net Protocol | DHCP and TCP/UDP,IPv4, PPPoE Client, |
| Remote Access | Remote Client Software and IE Browser, |
| PTZ Control | RS-485, |
| HDD Interface | SATA, Support between 250GB and 2TB, |
| HDD Port | 2, |
| Built-in HDD | No, |
| Playback Mode | Frame by Frame,Fast Rewind,Fast Forward,Normal Play, |
| Synchronous Playback (Channel) | 8, |
| USB | USB Backup/USB 2.0, |
| Power Supply | 12V DC, |
| Dimensions (LxWxH) | 310mm x 220mm x 45mm, |

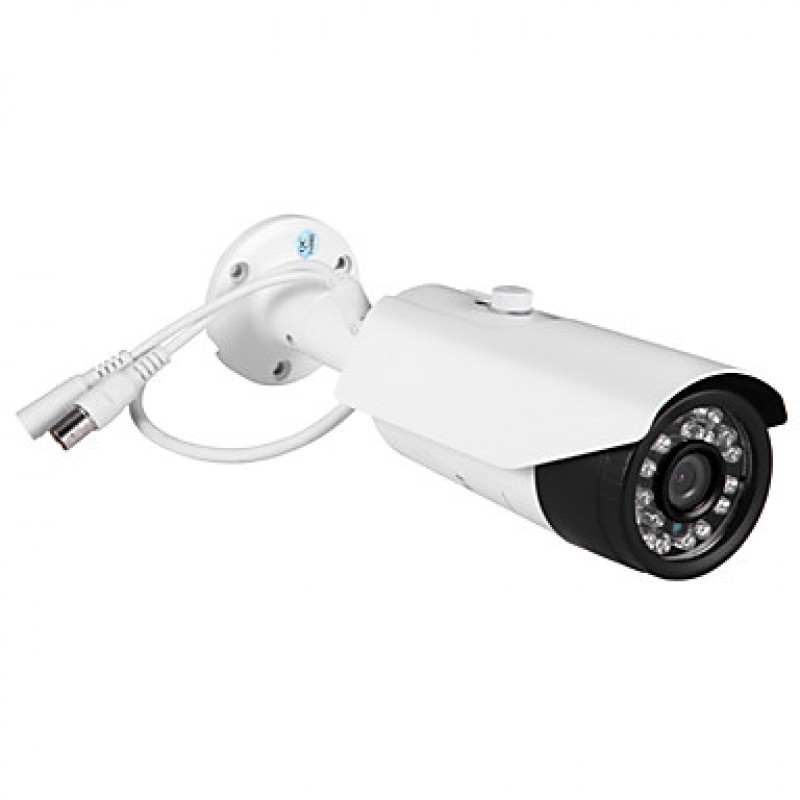

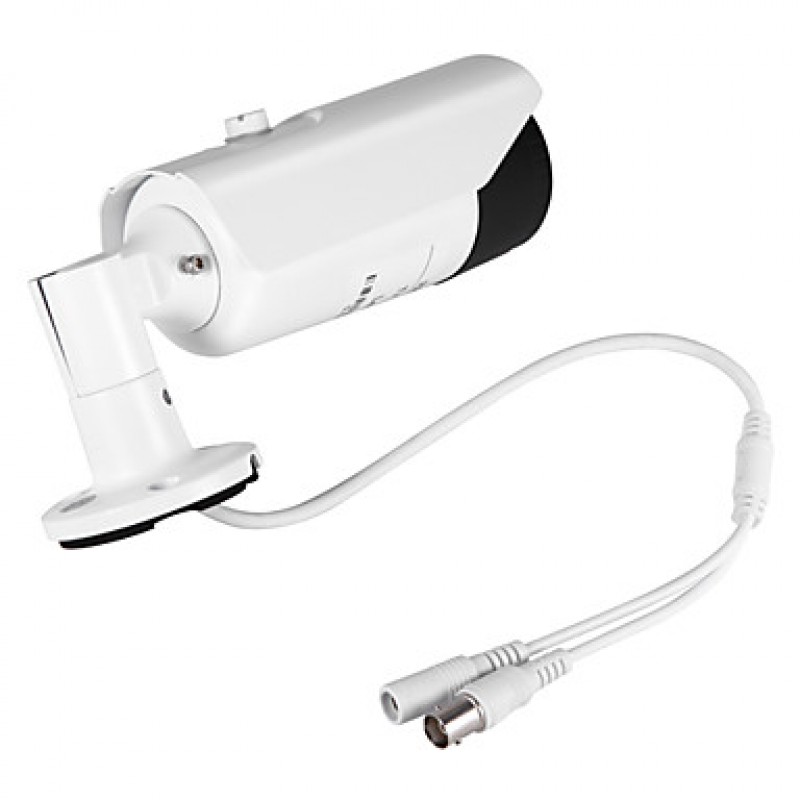

| Bullet Camera Parameters | |
| Bullet Camera Image Sensor | 1/4" Color CMOS, |
| TV System | PAL/NTSC, |
| Effective Pixels | NTSC: 960 (H) x 582 (V)/PAL: 976 (H) x 494 (V), |
| Lens (mm) | 3.6mm, |
| Maximum IR Distance (m) | 25M, |
| Features | Back Light Comp,Waterproof,Auto White Balance,Auto Gain Control, |
| Minimum Illumination | 0.0 Lux, |
| S/N Ratio | ≧ 45dB, |
| Video Output | 1.0Vp-p, 75ohms, |
| Operating Temperature | 14°F~122°F / -10°C ~50°C, |
| Power | 12V DC, |
| Material | Metal Shell, |
| General | |
| Home | Backyard,Garage,Front door, |
| Business | Street,School,Warehouse,Store,Office, |
| Camera Type | Bullet Cameras, |
| OSD Languages | Portuguese,Italian,Spanish,Dutch,German,Thai,Japanese,French,Chinese,English,Arabic,Russian, |

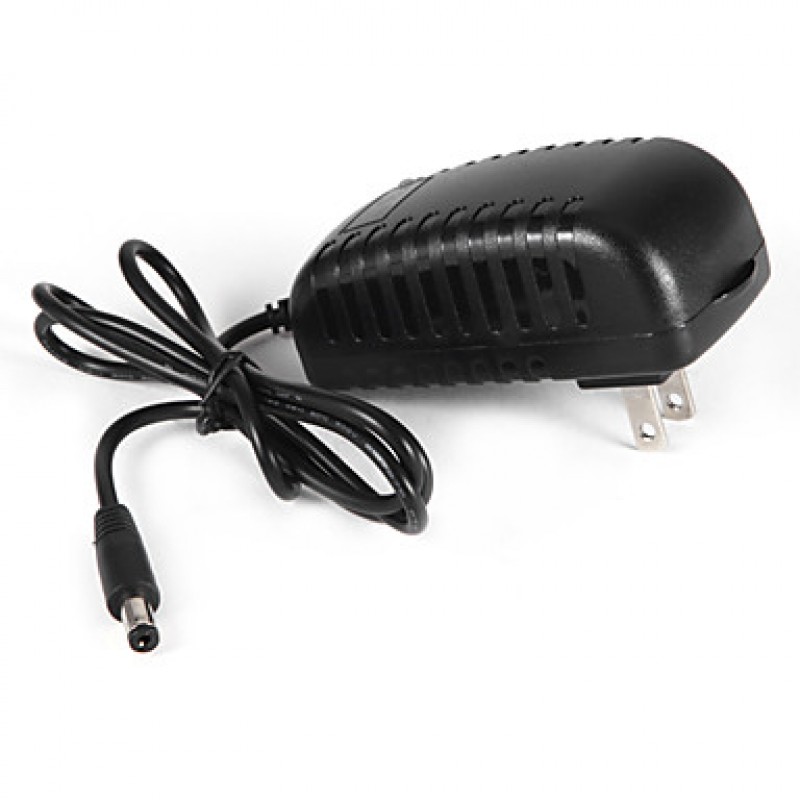

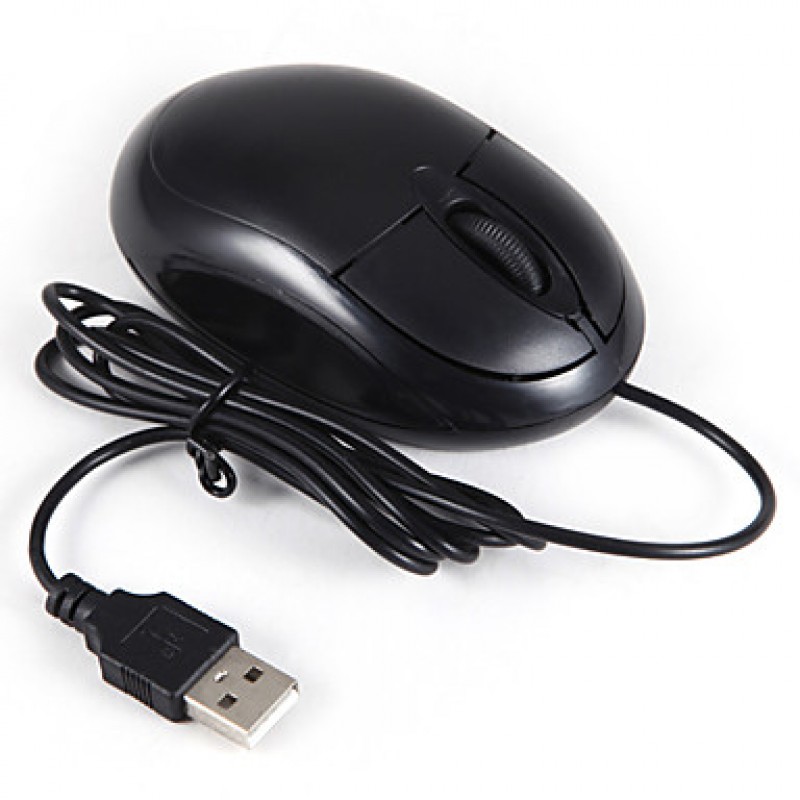

| What's in the box | Mouse,DVR,12V Power Supply,66ft Cable,Bullet Camera,1 To 4 DC Line,User Manual - English,Software CD, |
