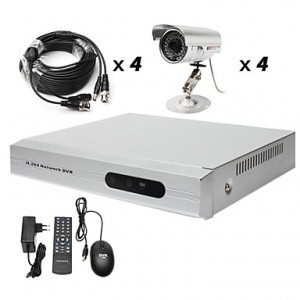

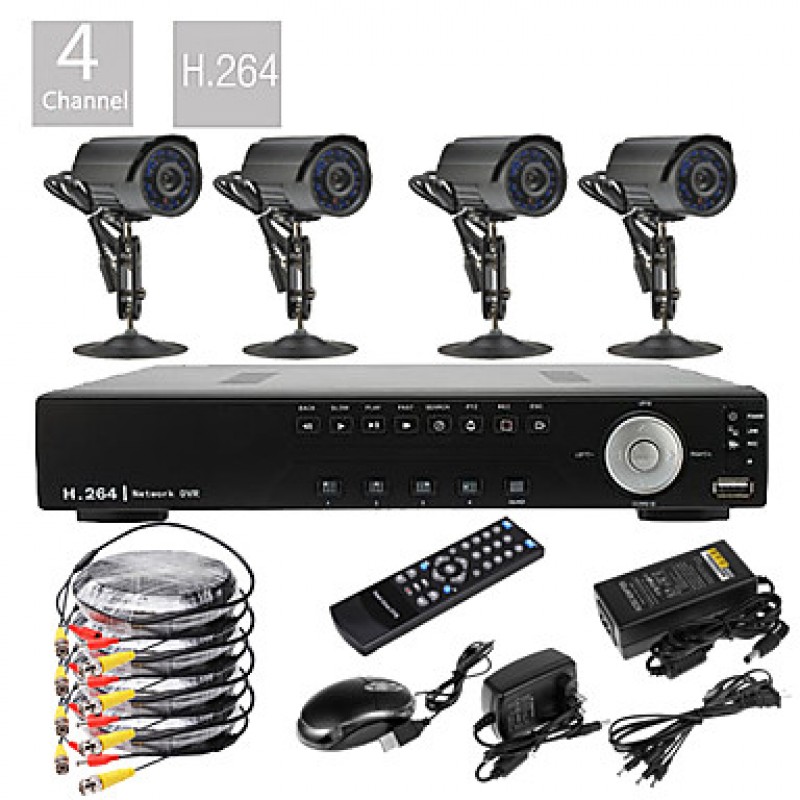

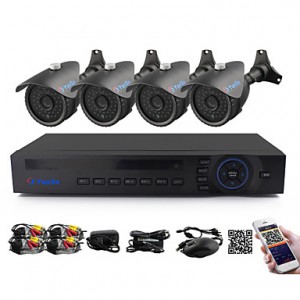

4CH D1 Real Time H.264 600TVL High Definition CCTV DVR Kit (4pcs Waterproof Day Night CMOS Cameras)

0 reviews / Write a review

$105.99

Price in reward points: 5000

Product Code: 4CH D1 Real Time H.264 600TVL High Definition CCTV DVR Kit (4pcs
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

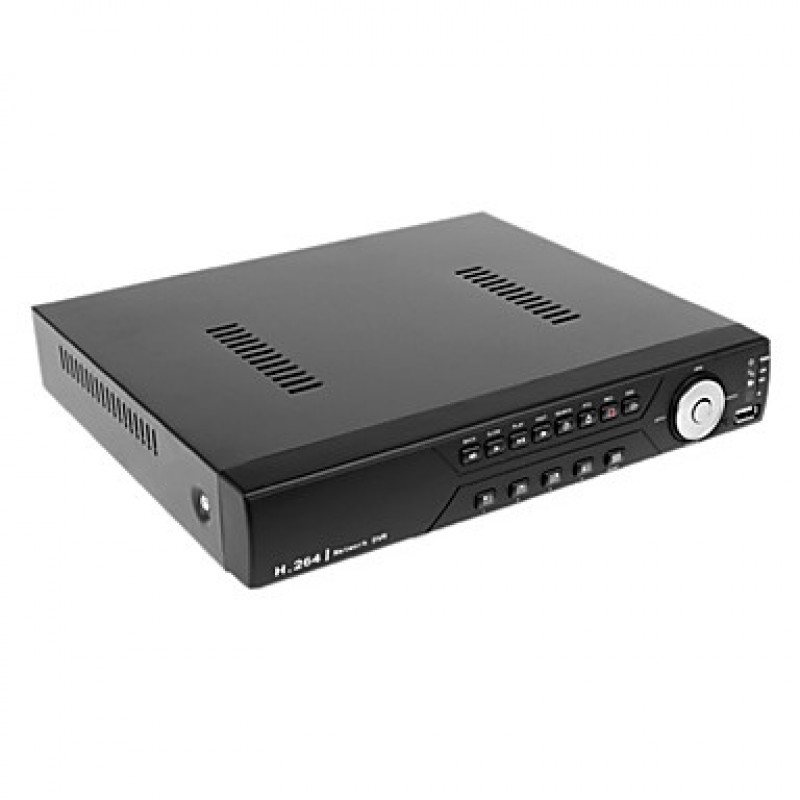

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,

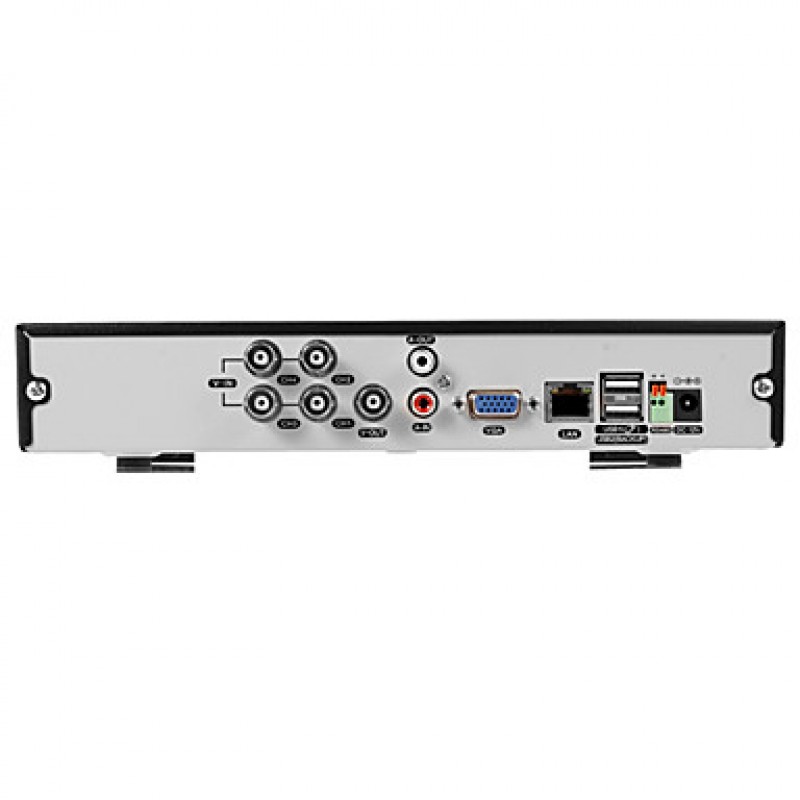

Video Input/Output Interface	BNC,
Video Input	4 Channel,
Video Output	1 Channel,
Other Video Output	VGA,
Audio Input / Output	RCA 1-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 480 fps @D1 / PAL: 400 fps @D1,
Display Resolution	NTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame Rate	NTSC: 120fps @D1 / PAL: 100 fps @D1,
Record Mode	Manual/Schedule,Motion Detection,Time Schedule,
Mobile Device OS Support	Symbian,iOS,Android,Blackberry,Windows Mobile,
Network Function	Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
HDD Interface	SATA, Support between 250GB and 2TB,
HDD Port	1,
Built-in HDD	No,
Playback Mode	Frame by Frame,Fast Rewind,Fast Forward,Normal Play,
Synchronous Playback (Channel)	4,
USB	USB Backup/USB 2.0,
Power Supply	12V DC,
Dimensions (LxWxH)	370 x 285 x 72,

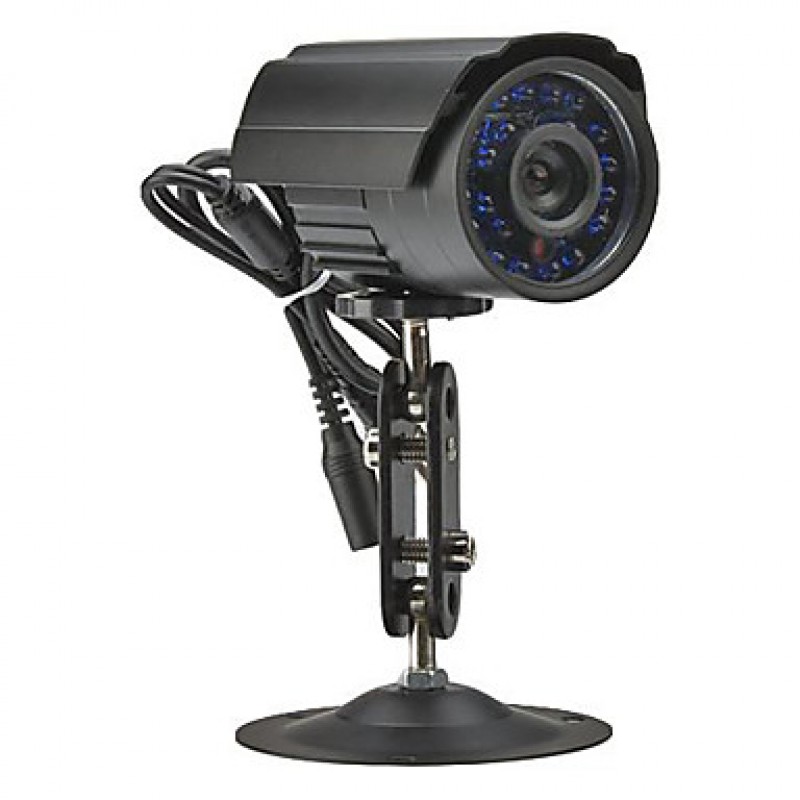

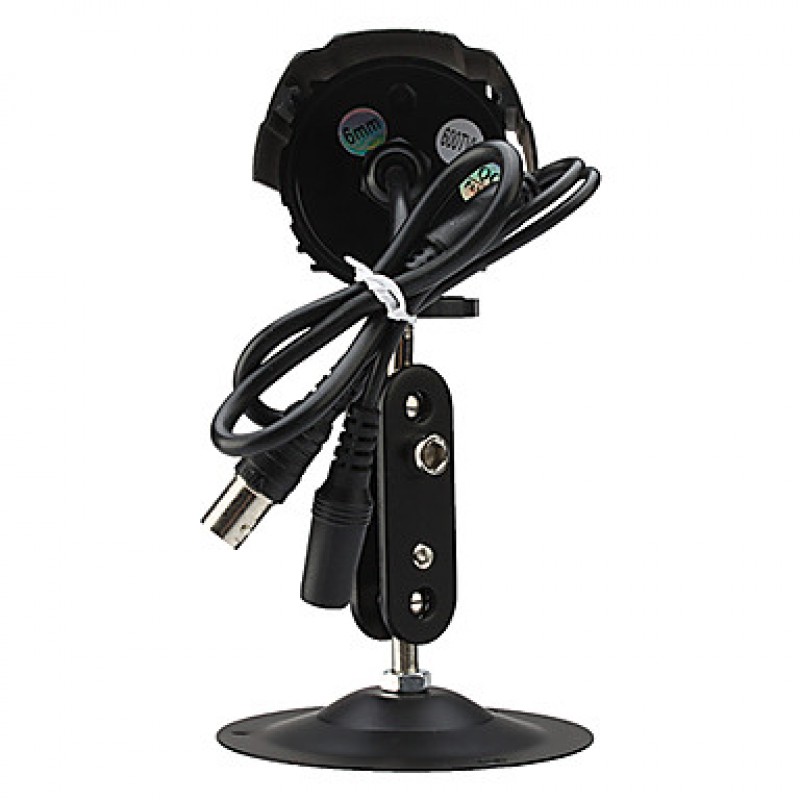

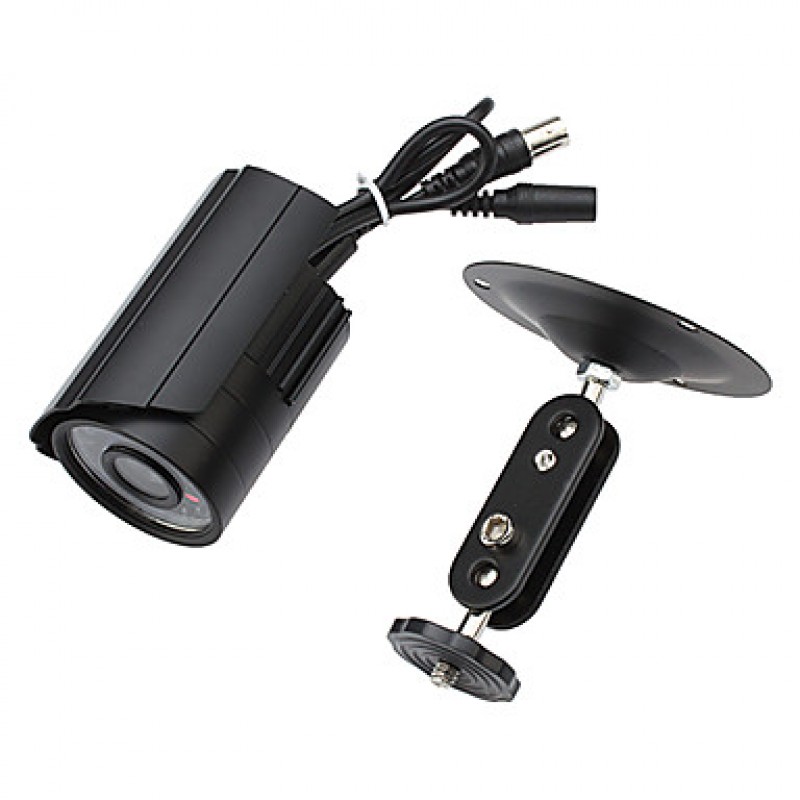

Bullet Camera Parameters
Bullet Camera Image Sensor	1/4" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Lens (mm)	6,
Maximum IR Distance (m)	15~20,
Features	Waterproof,Auto White Balance,
Minimum Illumination	0.0 Lux,
S/N Ratio	≧ 48dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	-25°F~122°F / -32°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	93 x 65 x 60,
Gross Weight	0.50 lbs,
Material	Metal Shell,
General
Home	Garage,Front door,Backyard,
Business	Store,Office,Street,School,Warehouse,
Camera Type	Bullet Cameras,
OSD Languages	Dutch,Spanish,German,Thai,French,Japanese,English,Chinese,Polish,Russian,Portuguese,Greek,Italian,

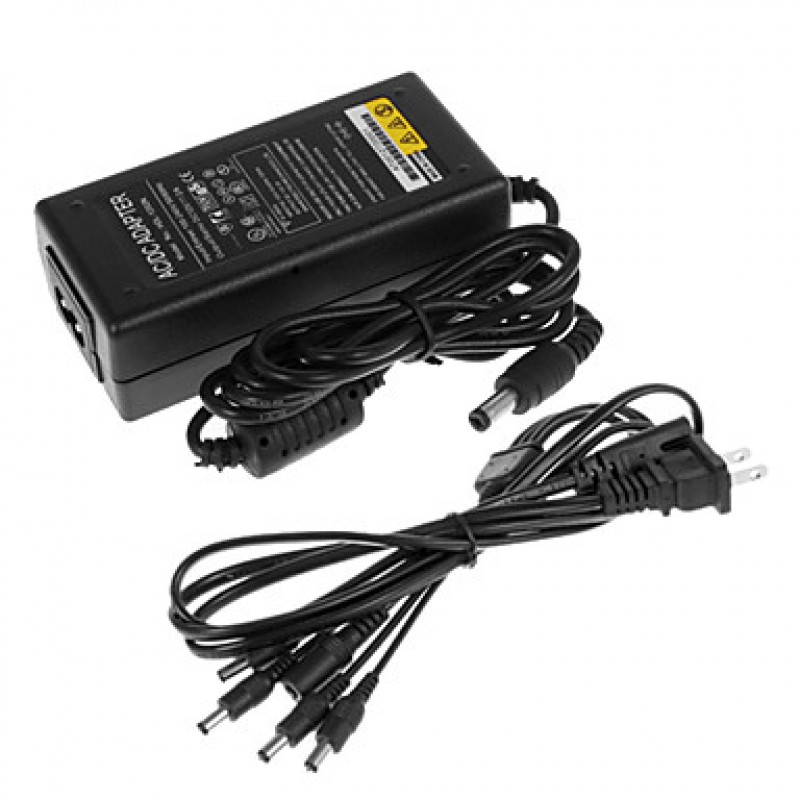

What's in the box	Bullet Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,Mouse,DVR,12V Power Supply,66ft Cable,
