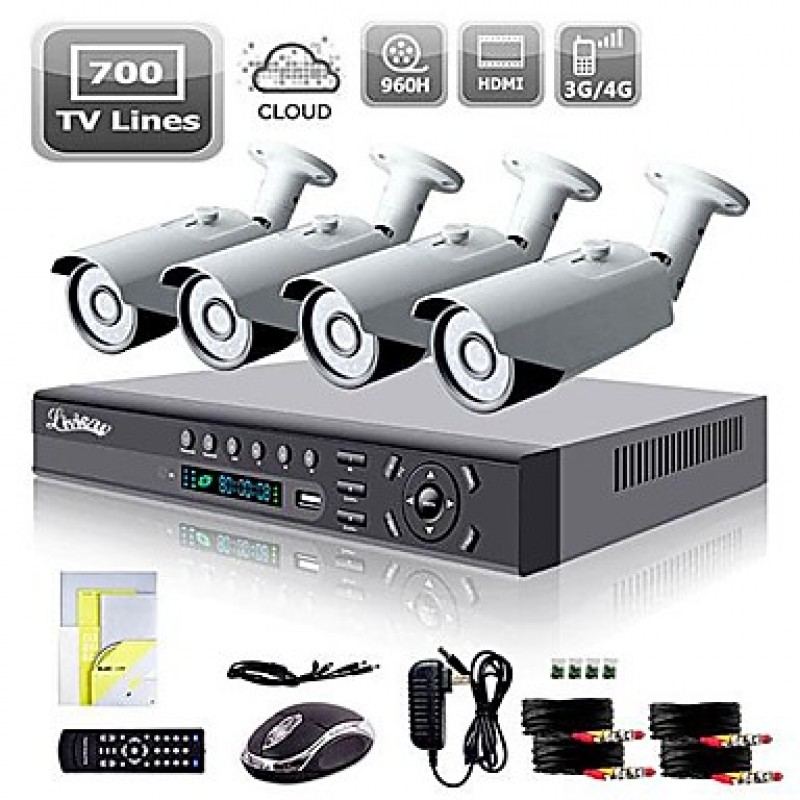

8CH HDMI 960H Network DVR 4X 700TVL Outdoor Day/Night Security Camera System

0 reviews / Write a review

$137.99

Price in reward points: 5000

Product Code: 8CH HDMI 960H Network DVR 4X 700TVL Outdoor Day/Night Security C
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,
Video Input/Output Interface	BNC,
Video Input	8 Channel,
Video Output	1 Channel,
Other Video Output	HDMI,VGA,
Audio Input / Output	RCA 4-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 240 fps @D1 / PAL: 200 fps @D1,
Recording Frame Rate	NTSC:120fps @960H / PAL: 100 fps @960H,
Record Resolution	960H Real Time (960*576),
Record Mode	Alarm Motion Detection & Alarm Supported,Manual/Schedule,Motion Detection,Time Schedule,Continuous,
Mobile Device OS Support	Android,Blackberry,Windows 7,Windows Mobile,Symbian,iOS,
Network Function	DVR Setting,Live Monitoring,IE Viewer,Mobile & Email Function,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,IPv4, PPPoE Client,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
HDD Interface	SATA, Support between 250GB and 2TB,
HDD Port	1,
Playback Mode	Frame by Frame,Fast Rewind,Fast Forward,Normal Play,
Synchronous Playback (Channel)	8,
USB	USB Backup/USB 2.0,
Power Supply	12V DC,
Dimensions (LxWxH)	310mm x 220mm x 45mm,
Bullet Camera Parameters
Bullet Camera Image Sensor	1/4" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V),
Horizontal Resolution	700TVL,
Lens (mm)	3.6,
Maximum IR Distance (m)	25,
Features	Auto Gain Control,Back Light Comp,Waterproof,Auto White Balance,
Minimum Illumination	0.0 Lux,
S/N Ratio	≧ 48dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	-4°F~140°F / -20°C ~60°C,
Power	12V DC,
Material	Metal Shell,
General
Model	,
OSD Languages	Dutch,Thai,Japanese,Chinese,German,French,English,

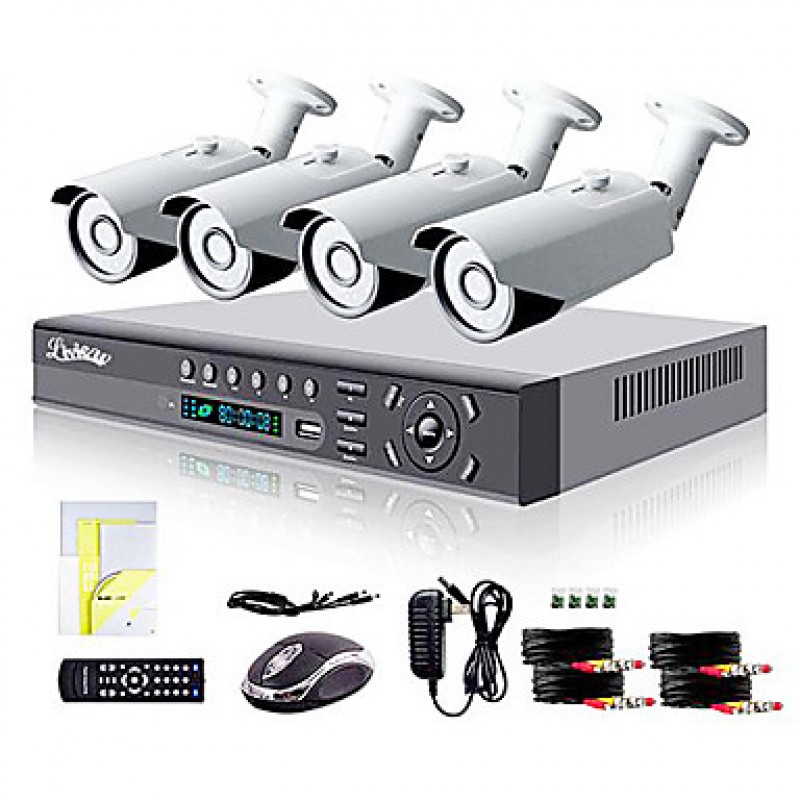

What's in the box	DVR,12V Power Supply,60ft Cable,Bullet Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,Mouse,
