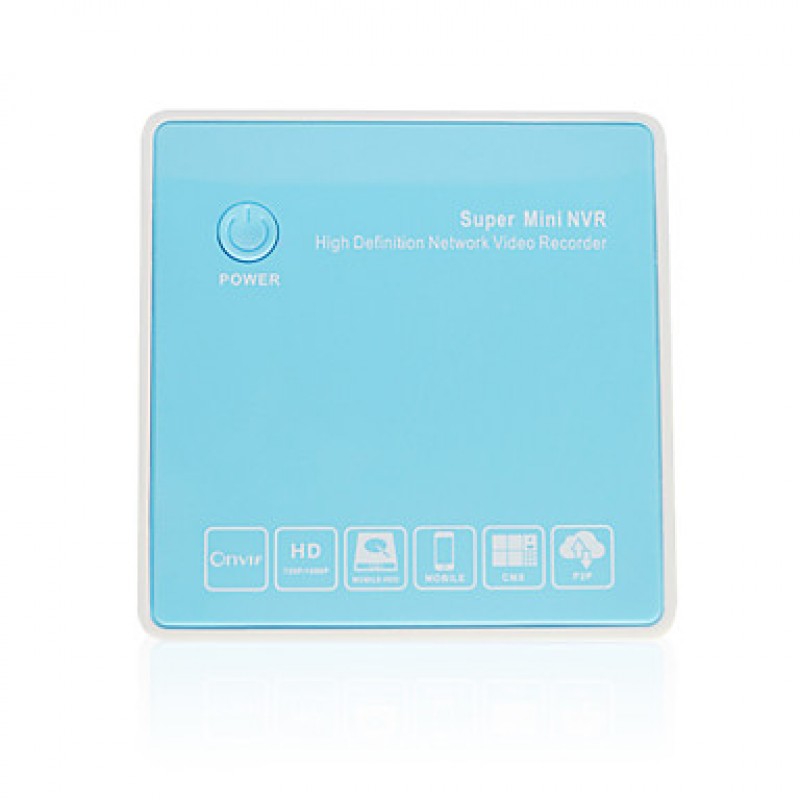

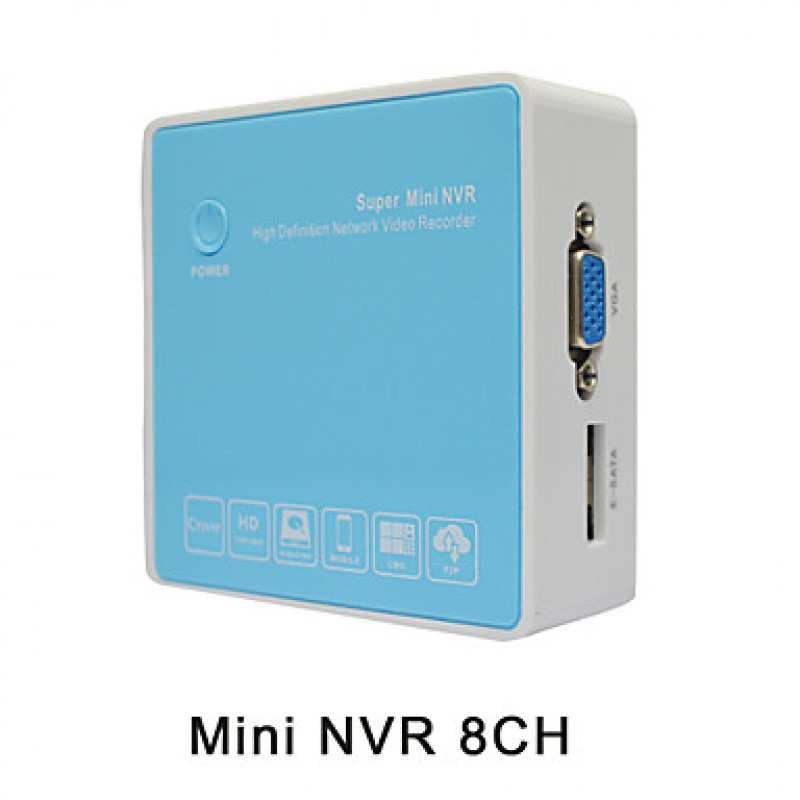

CCTV Super Mini NVR 8CH For IP Camera 720P 1080P Support HDMI ONVIF P2P Security Surveillance NVR Recorders
- Price in reward points: 5000
- Product Code: CCTV Super Mini NVR 8CH For IP Camera 720P 1080P Support HDMI ON
- Availability: In Stock
Tags: NVR Kits
| NVR | |
|---|---|
| Operating system | Embedded LINUX Operating System, |
| Video Compression | H.264, |
| IP video input | 4CH, |
| Video Output | HDMI, |
| Recording resolution | 1080P (1920*1080),960H (1280*960),720P (1280*720),VGA (640*480), |
| Record rate | 240fps Real-time, |
| Record Mode | Alarm Triggered,Motion Detection,Time Schedule,Manual, |
| Playback Mode | Frame by Frame,Fast Forward,Normal Play, |
| Synchronous Playback (Channel) | 4, |
| HDD Interface | 1 SATA (3.5"), |
| Capacity | Up to 4TB, |
| Network interface | 1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces, |
| Application support | local and remote playback,local recording,video browse,Remote configuration, |
| Motion detection | Yes, |
| Protocol support | P2P,HTTP,DHCP,UPNP,SMTP,DNS/ DDNS,TCP/IP, |
| Smart phone | IOS 5 up,Android 2.3 up, |
| PTZ Control | No, |
| Power Supply | 12V/2A DC, |
| Dimensions (LxWxH) | 26x21x4,cm, |
| Language | English, |
| IP Camera Parameters | |
| Video compression | H.264, |
| Bullet Camera Image Sensor | 1/4" Color CMOS, |
| Lens | 4mm, |
| Angle of view | 90°, |
| Maximum IR Distance (FT) | ~20, |
| Minimum Illumination | 0.01 Lux, |
| Image resolution | 960H (1280*960), |
| Frame rate | 25fps Real-time, |
| Record Mode | Motion Detection,Time Schedule,Manual,Alarm Triggered, |
| Snapshot | Manual snapshot, |
| Image setting | Saturation,CContrast,Color,Brightness, |
| Detection area setting | Video recording,Detection area,Snapshot, |
| Audio | No, |
| Audio intercom | No, |
| Network protocols | DHCP,UPNP,SMTP,DNS/ DDNS,TCP/IP,RTSP,P2P,HTTP, |
| Wireless | WIFI, 802.11 b/g/n, |
| Function | Waterproof,Dual stream, |
| Alarm action | Video record, |
| Access protocol | ONVIF Ver.2.0, |
| User management | unlimited, |
| Computer operating system | Win 10,Mac OSX,Win8,Win7,Vista,XP, |
| Weather proof | IP 66, |
| Smart phone | Android 2.3 up,IOS 5 up, |
| Operating Temperature | -25°F~122°F / -32°C ~50°C, |
| Power | 12V DC, |
| Dimensions (LxWxH) | 17x8.5x8.5,cm, |
| Gross Weight | 0.38kg, |
| Material | Metal Shell, |
| General | |
| Brand | Yan Se, |
| OSD Languages | English,Chinese,Arabic,Danish,Russian,Hungarian,Portuguese,Vietnamese,Italian,Thai,Spanish,German,Japanese,French,Turkish, |
| What's in the box | 1 x Mouse,1 x NVR,4 x Bullet IP Camera,4 x Power Supply,1 x Power Supply,1 x User Manual - English, |
