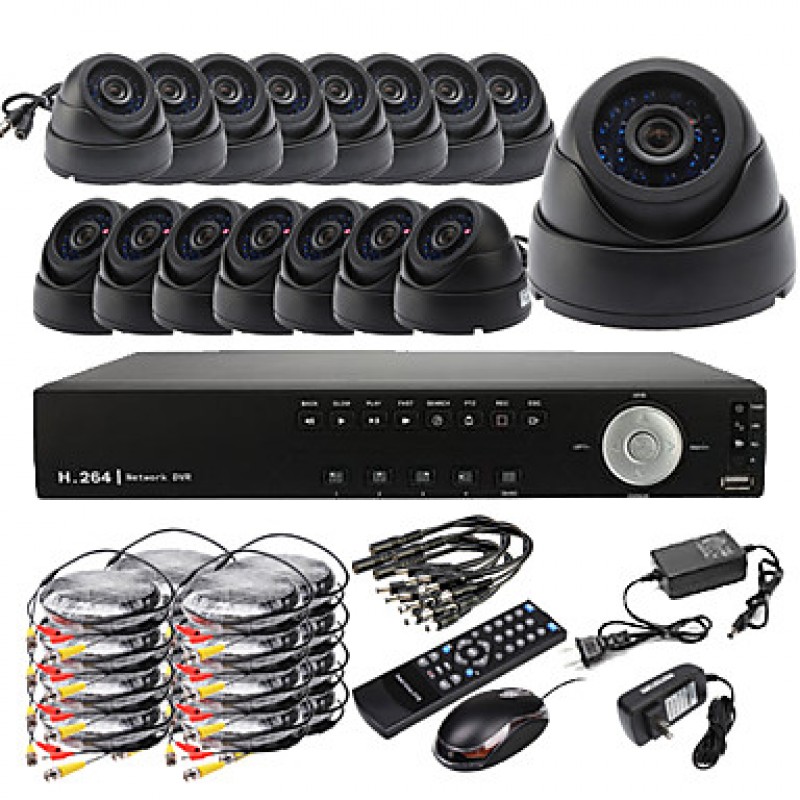

Ultra DIY 16CH D1 Real Time H.264 CCTV DVR Kit (16pcs 420TVL Night Vision CMOS Dome Cameras)

0 reviews / Write a review

$452.99 $316.99

Price in reward points: 5000

Product Code: Ultra DIY 16CH D1 Real Time H.264 CCTV DVR Kit (16pcs 420TVL Nig
Availability: In Stock

Qty

Tags: DVR Kits

Description
Reviews (0)

DVR Parameters
Video Compression	H.264,
Video System	NTSC/PAL,
Video Input/Output Interface	BNC,
Video Input	16 Channel,
Video Output	1 Channel,
Other Video Output	VGA,
Audio Input / Output	RCA 2-Channel Input / RCA 1-Channel Output,
Display Frame Rate	NTSC: 480 fps @D1 / PAL: 400 fps @D1,
Display Resolution	NTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame Rate	NTSC: 480fps @CIF / PAL: 400 fps @CIF,
Record Mode	Alarm Motion Detection & Alarm Supported,Manual/Schedule,Motion Detection,Time Schedule,
Mobile Device OS Support	iOS,Android,Blackberry,Windows Mobile,Symbian,
Network Function	Mobile & Email Function,DVR Setting,Live Monitoring,IE Viewer,
Network	RJ45, 10M/100M,
Net Protocol	DHCP and TCP/UDP,
Remote Access	Remote Client Software and IE Browser,
PTZ Control	RS-485,
Alarm Input/Alarm Output	4 Input/ 1 Output,
HDD Interface	SATA, Support between 250GB and 2TB,
HDD Port	1,
Built-in HDD	No,
Playback Mode	Fast Forward,Normal Play,Frame by Frame,Fast Rewind,
Synchronous Playback (Channel)	16,
USB	USB Backup/USB 2.0,
Power Supply	12V DC,
Dimensions (LxWxH)	370 x 285 x 72,
Bullet Camera Parameters
Material	Metal Shell,

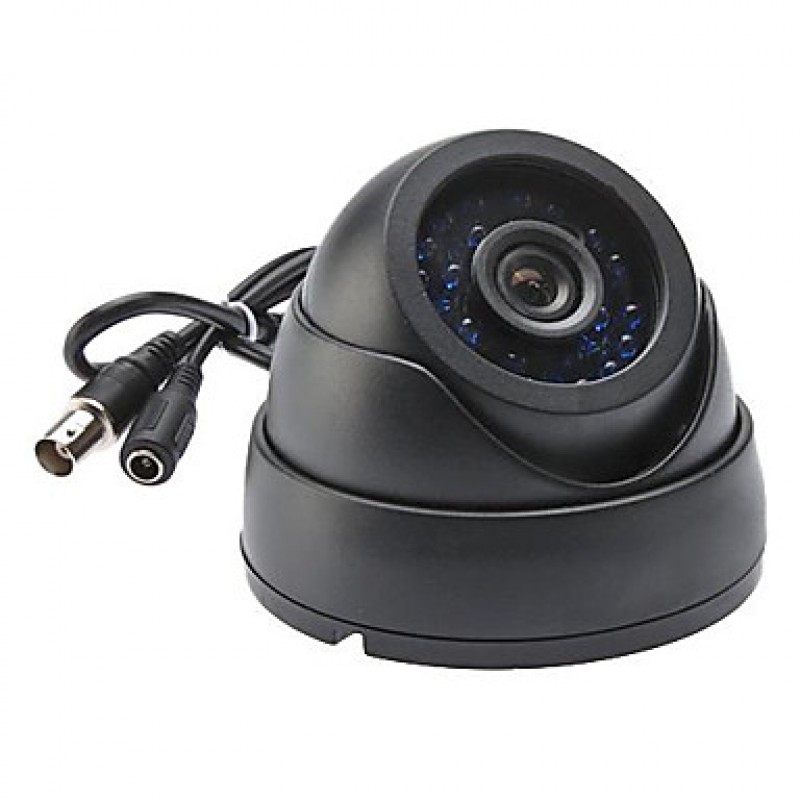

Dome Camera Parameters
Dome Camera Image Sensor	1/4" Color CMOS,
TV System	PAL/NTSC,
Effective Pixels	NTSC: 512 (H) x 492 (V)/PAL: 512 (H) x 582 (V),
Horizontal Resolution	420 TV-Lines,
Lens (mm)	6,
Maximum IR Distance (m)	15~20,
Features	Auto White Balance,
Minimum Illumination	0.0 Lux,
S/N Ratio	≧ 50dB,
Video Output	1.0Vp-p, 75ohms,
Operating Temperature	14°F~122°F / -10°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	90 x 90 x 65,
Gross Weight	0.33 lbs,
Material	Plastic Shell,
General
Home	Front door,Backyard,Garage,
Business	Street,School,Warehouse,Store,Office,
Camera Type	Dome Cameras,
OSD Languages	Chinese,English,Polish,Russian,Portuguese,Greek,Italian,Dutch,Spanish,Thai,German,Japanese,French,
What's in the box	Software CD,Remote Control,Mouse,12V Power Supply,DVR,66ft Cable,Dome Camera,1 To 4 DC Line,User Manual - English,
