Product Detail

8 Channel Home and Office CCTV DVR System(P2P Online,8 Outdoor Camera)

$149.99
  • Price in reward points: 5000
  • Product Code: 8 Channel Home and Office CCTV DVR System(P2P Online,8 Outdoor C
  • Availability: In Stock

Tags: DVR Kits

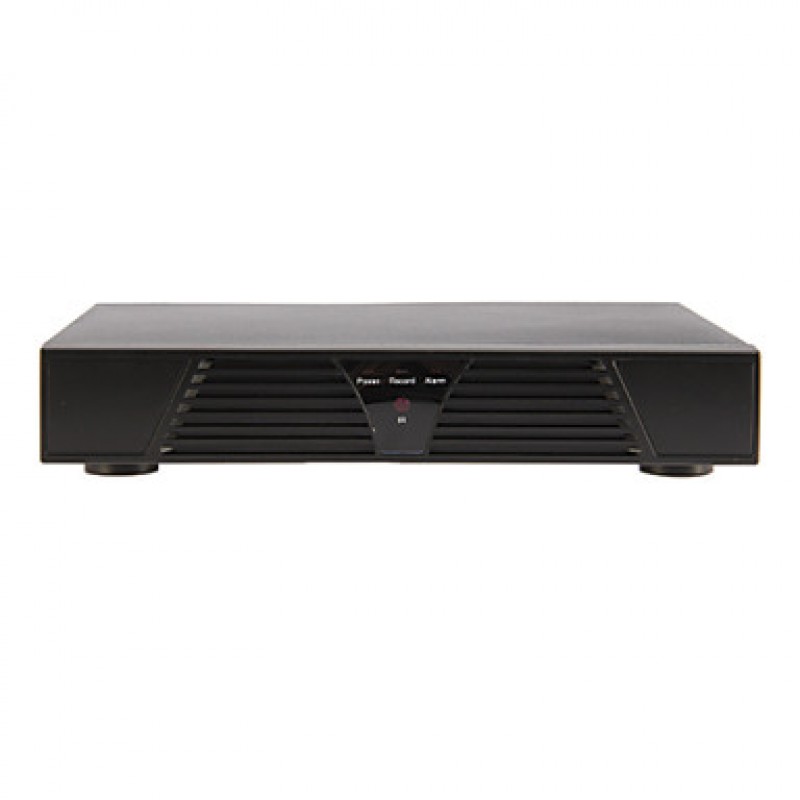

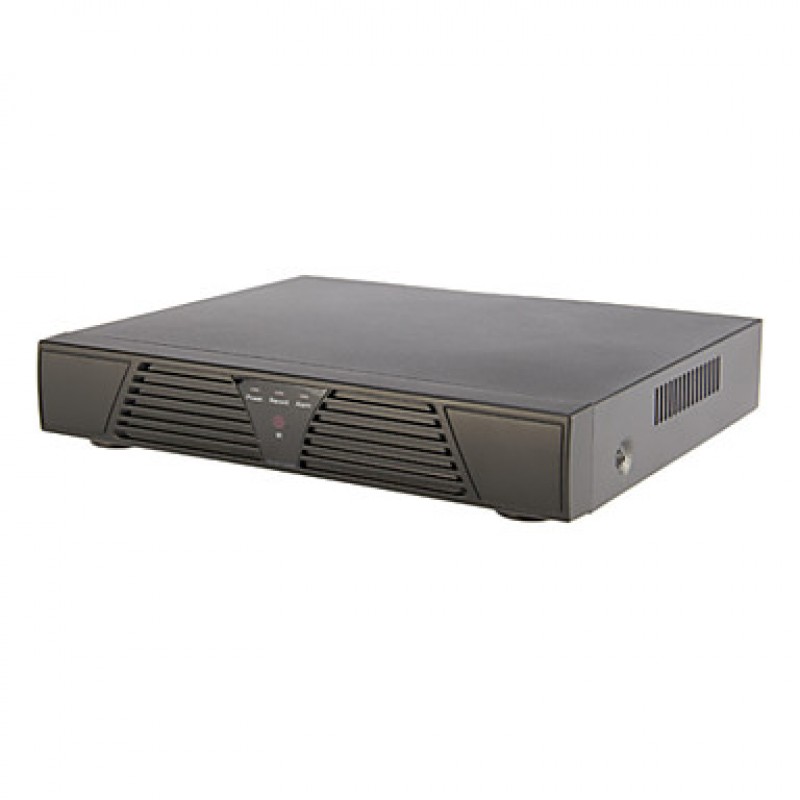

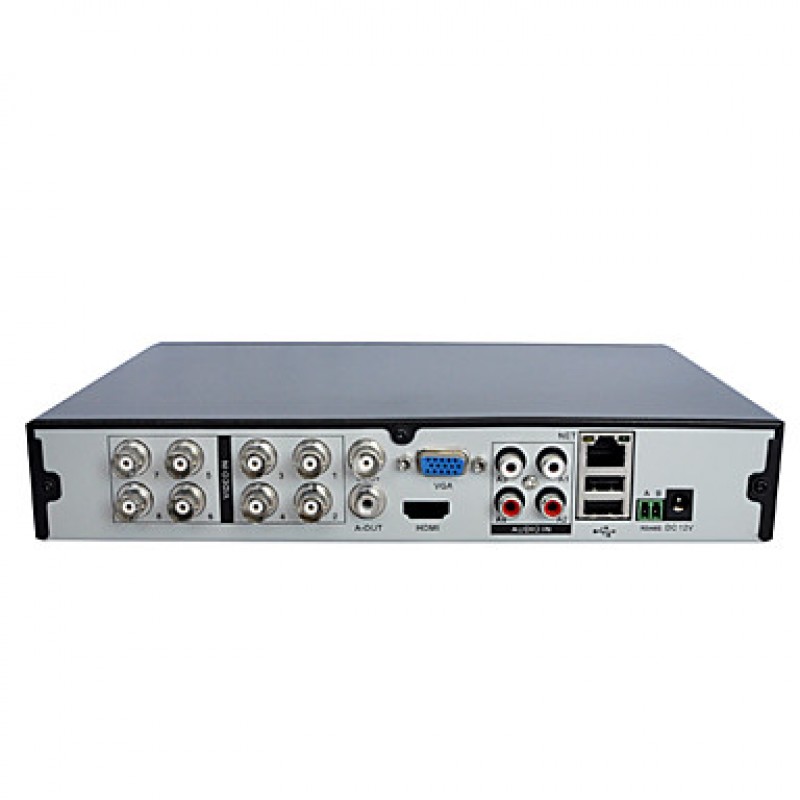

DVR Parameters
Video CompressionH.264,
Video SystemNTSC/PAL,
Video Input/Output InterfaceBNC,
Video Input8 Channel,
Video Output1 Channel,
Other Video OutputVGA,
Audio Input / OutputRCA 1-Channel Input / BNC 1-Channel Output,
Display Frame RateNTSC: 240 fps @D1 / PAL: 200 fps @D1,
Display ResolutionNTSC: D1(704 x 480)/ PAL: D1(704 x 576),
Recording Frame RateNTSC: 240fps @CIF / PAL: 240 fps @CIF,
Record ModeManual/Schedule,Motion Detection,Time Schedule,
Mobile Device OS SupportBlackberry,Windows Mobile,Symbian,iOS,Android,
Network FunctionDVR Setting,Live Monitoring,IE Viewer,Mobile & Email Function,
NetworkRJ45, 10M/100M,
Net ProtocolDHCP and TCP/UDP,
Remote AccessRemote Client Software and IE Browser,
PTZ ControlRS-485,
HDD InterfaceSATA, Support between 250GB and 2TB,
HDD Port1,
Built-in HDDNo,
Playback ModeNormal Play,Frame by Frame,Fast Rewind,Fast Forward,
Synchronous Playback (Channel)8,
USBUSB Backup/USB 2.0,
Power Supply12V DC,
Dimensions (LxWxH)160 x 220 x 43,

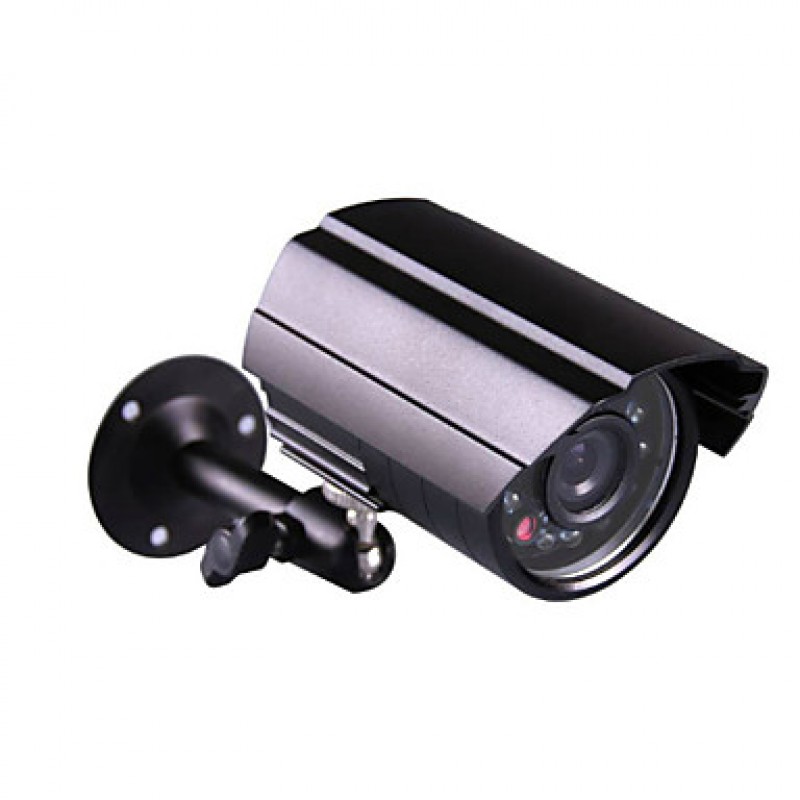

Bullet Camera Parameters
Bullet Camera Image Sensor1/4" Color CMOS,
TV SystemPAL/NTSC,
Effective PixelsNTSC: 512 (H) x 492 (V)/PAL: 512 (H) x 582 (V),
Lens (mm)3.6,
Maximum IR Distance (m)15~20,
FeaturesWaterproof,Auto White Balance,
Minimum Illumination0.0 Lux,
S/N Ratio≧ 48dB,
Video Output1.0Vp-p, 75ohms,
Operating Temperature-25°F~122°F / -32°C ~50°C,
Power12V DC,
Dimensions (LxWxH)130 x 50 x 50,
Gross Weight0.50 lbs,
MaterialMetal Shell,
General
HomeGarage,Front door,Backyard,
BusinessStore,Office,Street,School,Warehouse,
Camera TypeBullet Cameras,
OSD LanguagesDutch,English,Thai,Chinese,Russian,Italian,Spanish,German,Greek,French,

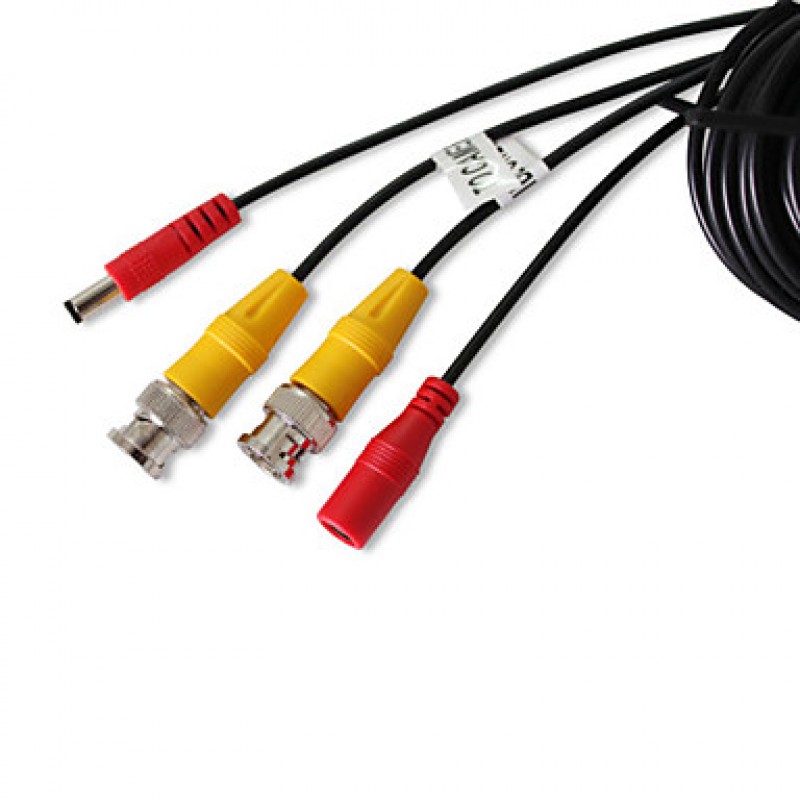

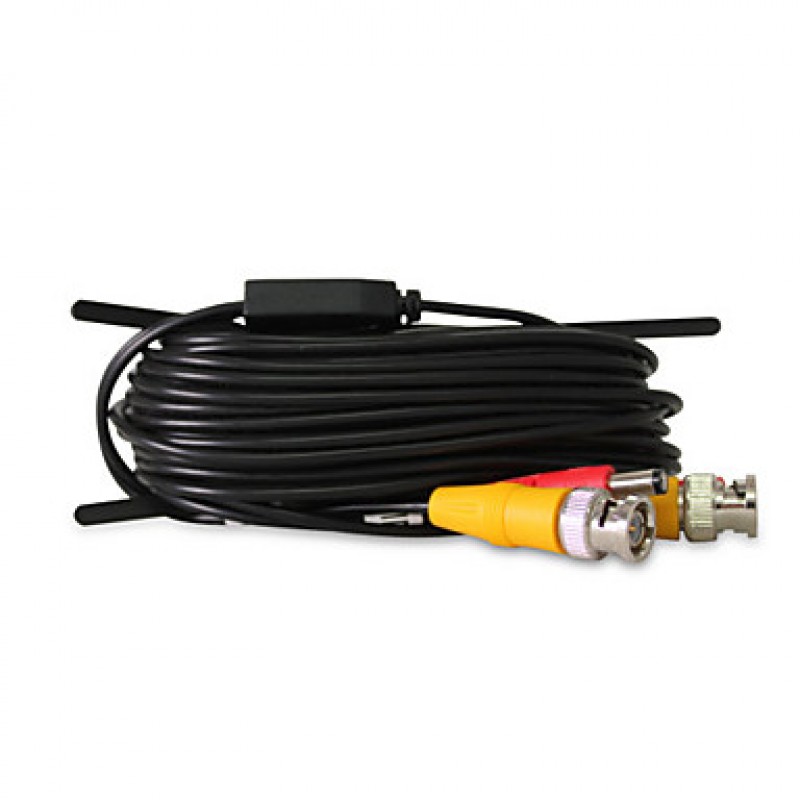

What's in the boxBullet Camera,1 To 4 DC Line,User Manual - English,Software CD,Remote Control,Mouse,12V Power Supply,DVR,66ft Cable,
